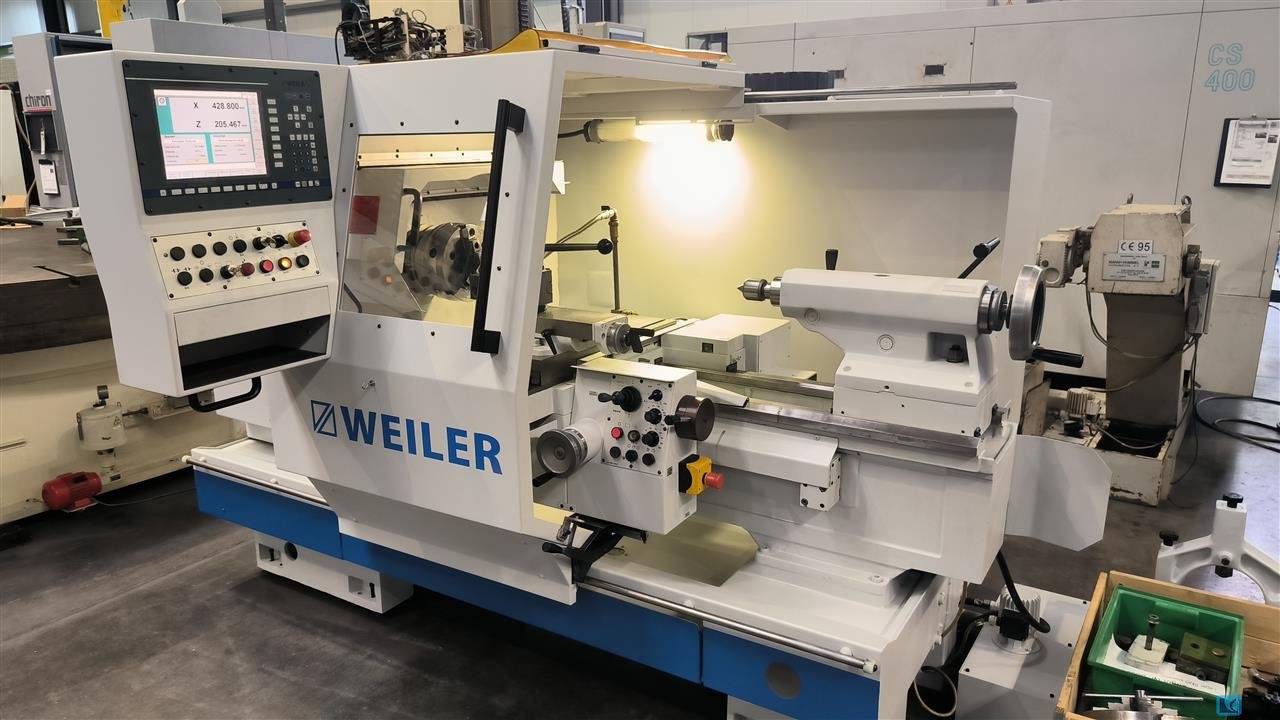

Center Lathe
WEILER E50 - 1000
- Stock number:
- 1087-0303084
- Year / Condition:
- 1999 / 2025
- Control unit:
- conventional
- Country of origin:
- Germany
- Freight basis:
- EXW, free on truck unpacked
- Item location:
- Leipzig 5
- Delivery time:
- immediately
Picture / documents / videos
Technical specs
Details
- turning diameter over bed:
- 570 mm
- turning diameter over support:
- 340 mm
- turning length:
- 1000 mm

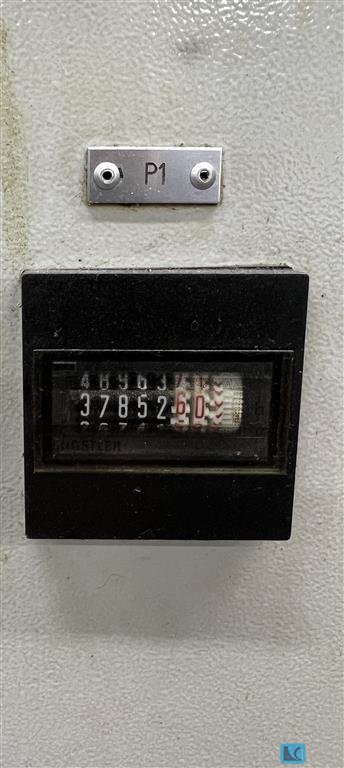

- switched on hours:
- 37917 h
- centre distance:
- 1000 mm
- swing diameter over bed:
- 570 mm
- swing diameter over face slide:
- 340 mm
- centre height:
- 280 mm
- spindle bore:
- Ø 85 mm
- revolution per minute:
- 1 - 625 + 4 - 2500 / steples U/min
- max. torque on the spindle:
- 1600 Nm
- longitudinal feeds::
- 0 - 20 mm/U
- cross feed:
- 0 - 20 mm/U
- tailstock quill adjustment::
- 160 mm
- tailstock quill:
- MK 5 mm
- total power requirement:
- 20 kW
- weight of the machine ca.:
- 3,2 t
- dimension machine approx.LxWxH:
- 2,9 x 2,28 x 1,8 m
Description
Machine has been overhauled/refurbished: Ball screw Z overhauled, X-axis end position overhauled, new paint job.

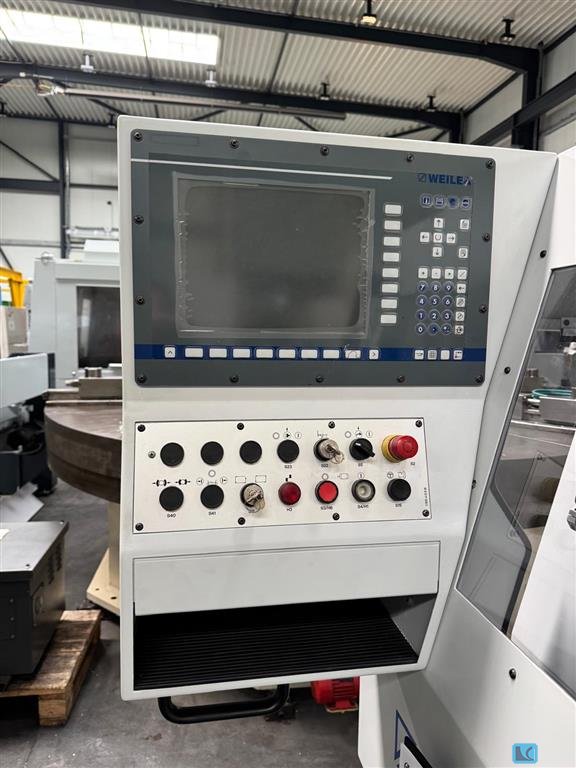

Conventional design with integrated automatic cycle control.
Metric thread cutting, inch threads, DP threads.
Chip conveyor not available.
4-jaw chuck with steady rest available.
3-jaw chuck mounted.
