Center Lathe
NILES N8
- Stock number:
- 1087-0303046
- Year / Condition:
- 1952
- Control unit:
- conventional
- Country of origin:
- Germany
- Freight basis:
- EXW, free on truck unpacked
- Item location:
- Leipzig 2
- Delivery time:
- immediately
Picture / documents / videos
Technical specs
Details
- turning diameter over bed:
- 1000 mm
- turning diameter over support:
- 520 mm
- turning length:
- 2500 mm
- support travel z-axis:
- plan: ca. 500 mm
- support travel z-axis:
- Obersupport: ca. 300 mm
- centre height:
- 300 mm
- spindle passage:
- 90 mm
- range of revolution per miute:
- 3,2 - 382 / 22 step U/min
- range of feed in x - axis:
- längs: 0,213 - 2,67 / 36 step m/min
- range of feed in y - axis:
- quer: 0,070 - 1,11 / 36 step m/min
- tailstock quill taper MT:
- 6
- total power requirement:
- 22
- weight of the machine ca.:
- 8,2 t
- dimension machine approx.LxWxH:
- 5,3 x 1.,6 x 1,6 m
- transport measurements machine:
- ca. 5,5 x 1,7 x 1,6 m
Description
Equipment:

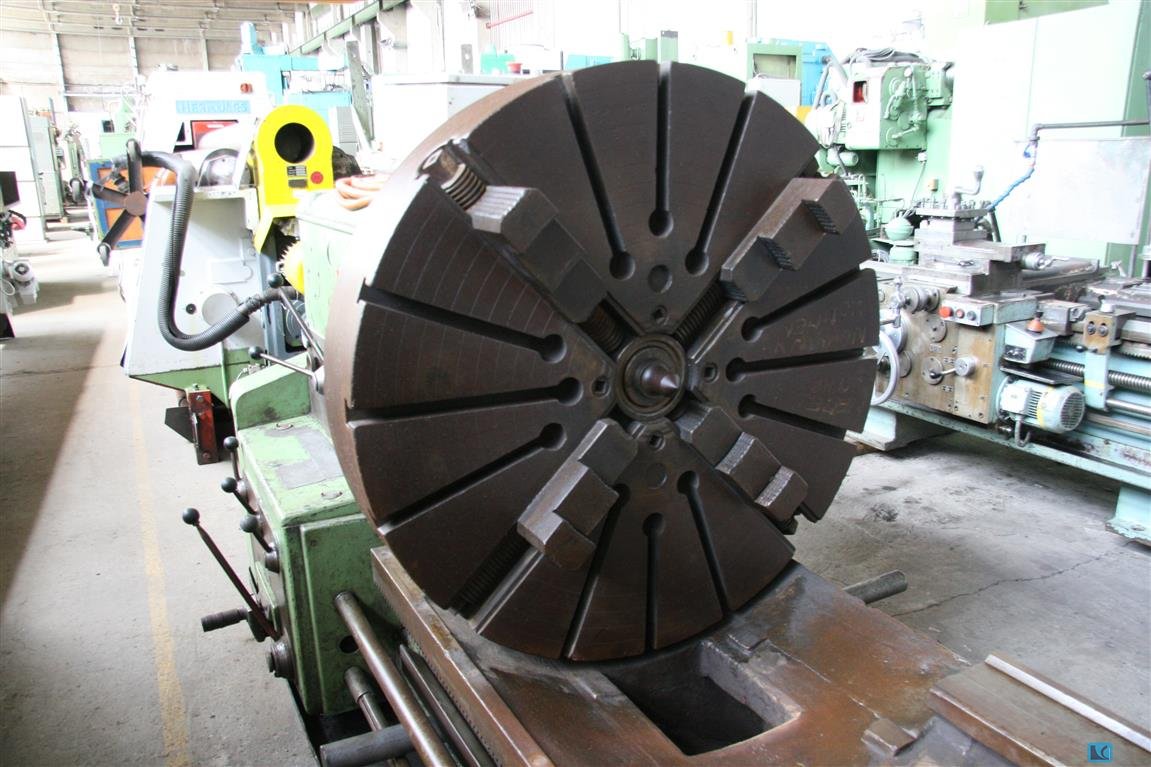

Faceplate Ø 1000mm
4-fold turning tool holder
Lynette Ø 250 closed
Accesorios
four-jaw chuck Ø 630
i.D.
