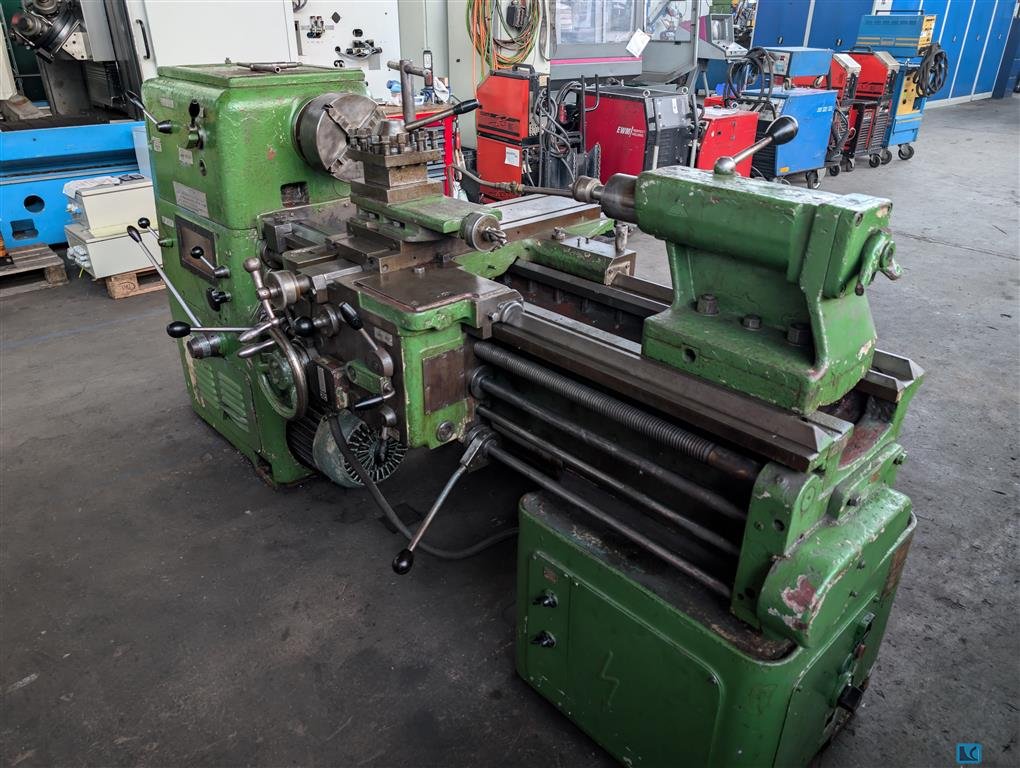

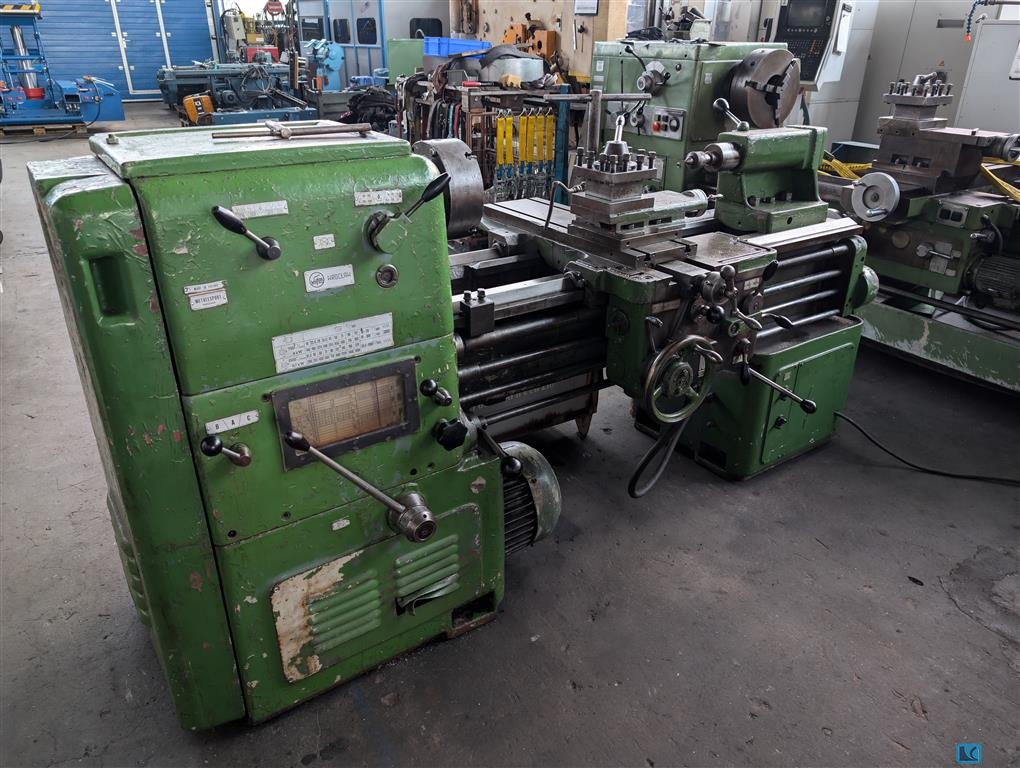

Center Lathe
METALLEXPORT TUD 50
- Stock number:
- 1087-0303076
- Year / Condition:
- 1970
- Control unit:
- conventional
- Country of origin:
- Poland
- Freight basis:
- EXW, free on truck unpacked
- Item location:
- Leipzig 1
- Delivery time:
- immediately
Picture / documents / videos
Technical specs
Details
- turning diameter over bed:
- 500 mm
- turning diameter over support:
- 300 mm
- turning length:
- 1000 mm
- center height measured in bed:
- 250 mm
- centre distance:
- 1000 mm
- revolution per minute:
- 18...1800 / 21 step U/min
- spindle bore of work spindle:
- 56 mm
- tailstock quill adjustment::
- 180 mm
- longitudinal feeds::
- 0,08 - 3,26 mm/U
- cross feed:
- 0,04 - 1,63 mm/U
- Rapid feed X axis:
- 4,2 m/min.
- total power requirement:
- 7,5 kW
- weight of the machine ca.:
- 2,9 t
- dimension machine approx.LxWxH:
- 2,6 x 1,1 x 1,3 m
Description
4-jaw chuckØ 250mm with internal jaws
live center in tailstock
4-fold quick-clamping tool holder
coolant system
Accessories:
various reduction sleeves MK3-MK5-MK4
revolving tip
"Clamping heart"
3-jaw chuck Ø 250mm with inner jaws
The machine does not comply with APR (accident preventing regulations)
