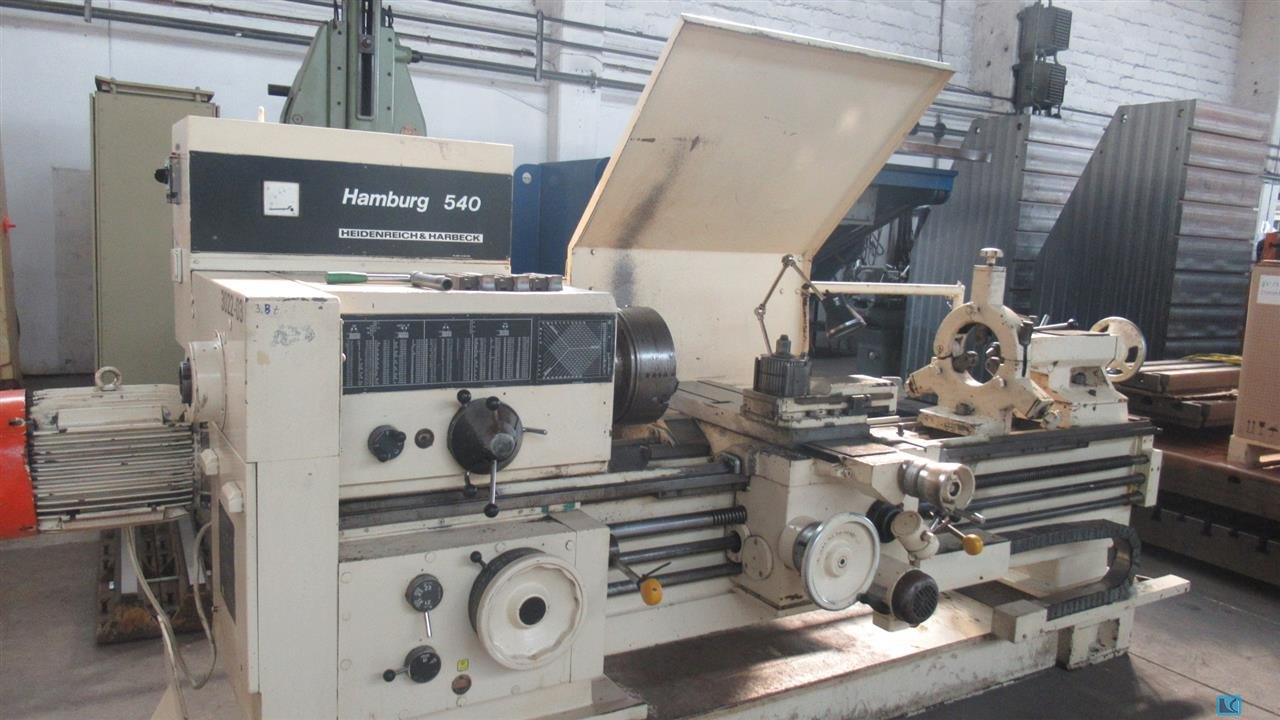

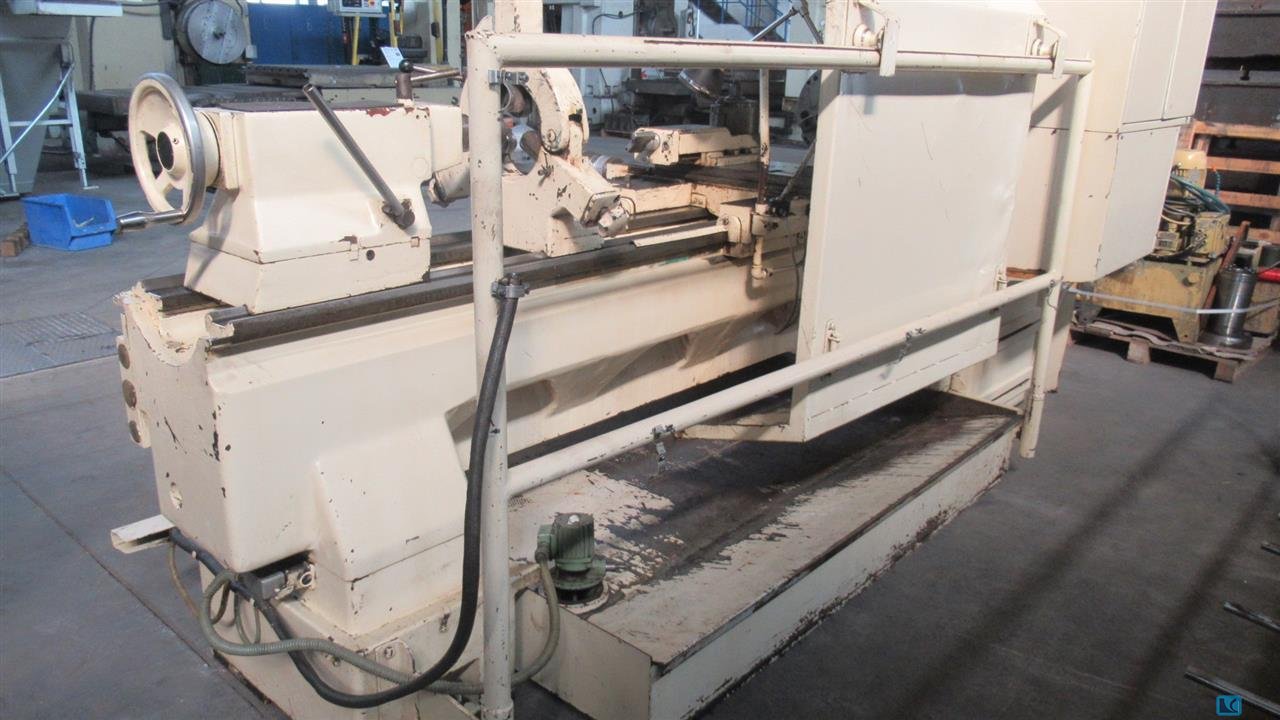

Center Lathe
HEIDENREICH & HARBECK Hamburg 540-2000
- Stock number:
- 1087-0303080
- Year / Condition:
- -
- Control unit:
- conventional
- Country of origin:
- Germany
- Freight basis:
- ex location Bitterfeld, free on truck
- Item location:
- GOG Bitterfeld
- Delivery time:
- by arrangement
Picture / documents / videos
Technical specs
Details
- turning diameter over bed:
- 540 mm
- turning diameter over support:
- 280 mm
- turning length:
- 3550 mm
- centre height:
- 265 mm
- spindle bore of work spindle:
- 65 mm
- range of revolution per miute:
- 9...1800 / 24 step U/min
- longitudinal feeds::
- 0,025-0,09 mm/U
- cross feed:
- 0,012-0,045 mm/U
- tailstock quill adjustment::
- 225 mm
- tailstock taper MT:
- MK5
- total power requirement:
- 18 kW
- weight of the machine ca.:
- 3,8 t
- dimension machine approx.LxWxH:
- 3,7 x 1,6 x 2,05 m
Description
Three-jaw chuck D=320mm
Top slide rotatable 45 degrees right and left
