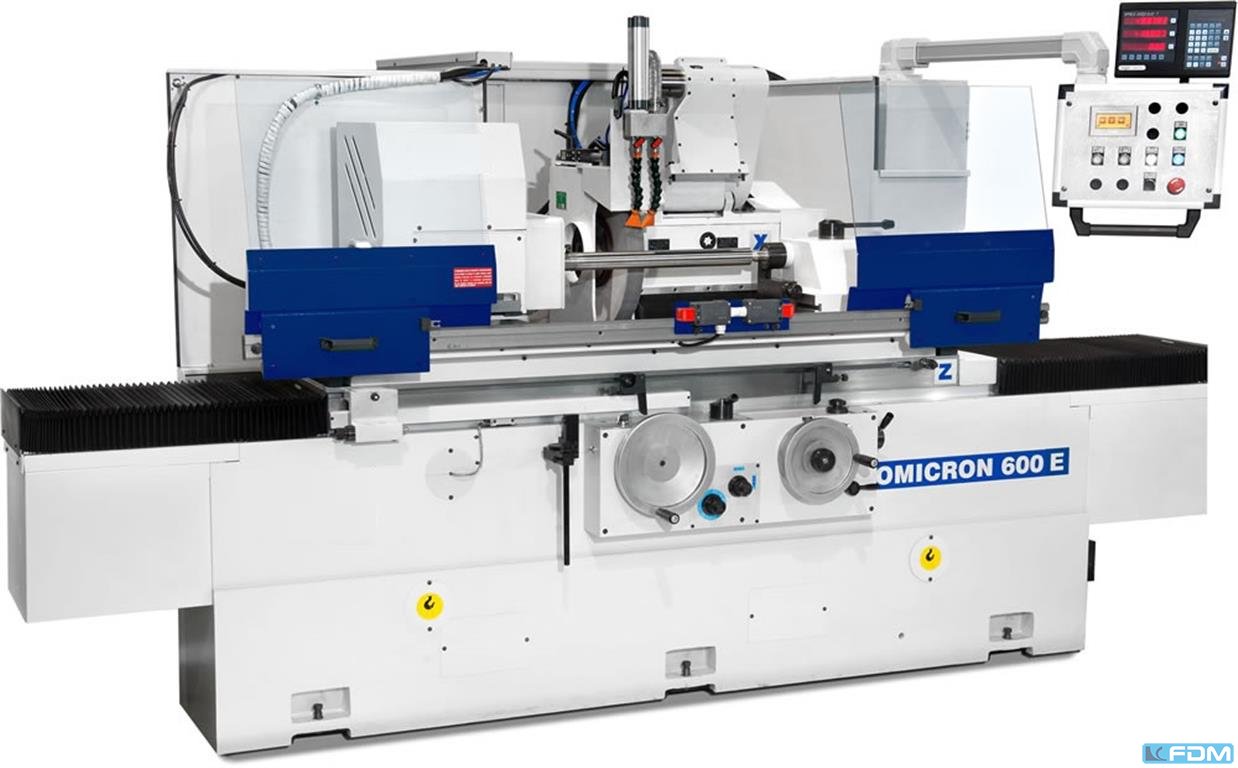

Cylindrical Grinding Machine

Details

:

Omicron 600 R Omicron 1000 R

grinding diameter:

315 mm

grinding length:

600 mm1000 mm

centre height:

160 mm

swing over bed:

315 mm

max. workpiece weight:

120 kg

grinding wheel size:

450x127xmin.20-max.50 mm

peripheral speed:

33 m/sec

grinding spindle speed:

600-1600 1/min

grinding head swivellable +/-:

±180 °

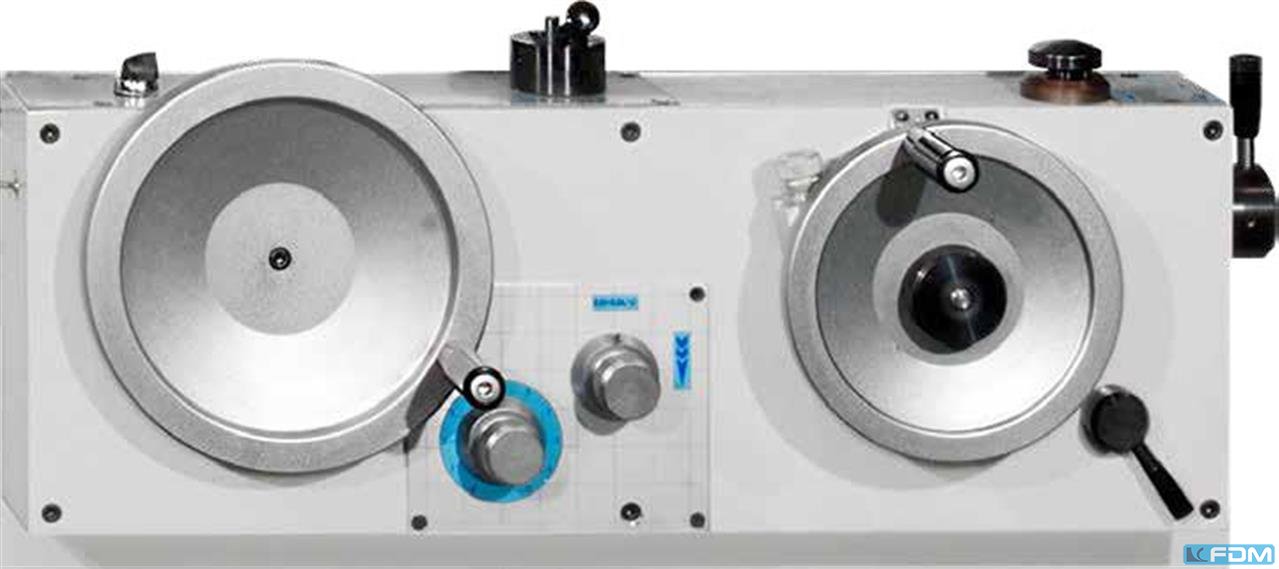

infeed each handwheel rotation/division line:

2 (0,05)/0,01 (0,002) mm

automatic feeds:

0,01/0,02/0,03/0,04 mm/min

workhead - spindle speed:

0-600 1/min

swiveling workpiece drive:

±90 °

workhead - center taper:

4 MK

tailstock quill adjustment:

25 mm

tailstock quill diameter:

43 mm

taper in tailstock:

4 MK

table speeds:

0-5000 mm/min

swivellable angle of table:

600: +9°/-5° °1000: +8°/-4 °

table adjustment - longitudinal:

max. 680 mm mm1080 mm

table cross movement -manual:

13 mm

grinding wheel motor:

4 kW

workhead motor:

0,75 kW

hydraulic motor:

0,75 kW

coolant pump:

0,18 kW

machine dimensions:

2540x1350x1750 xx3750x1350x1750 xx

weight of the machine ca.:

2600 kg3300 kg

Accerories

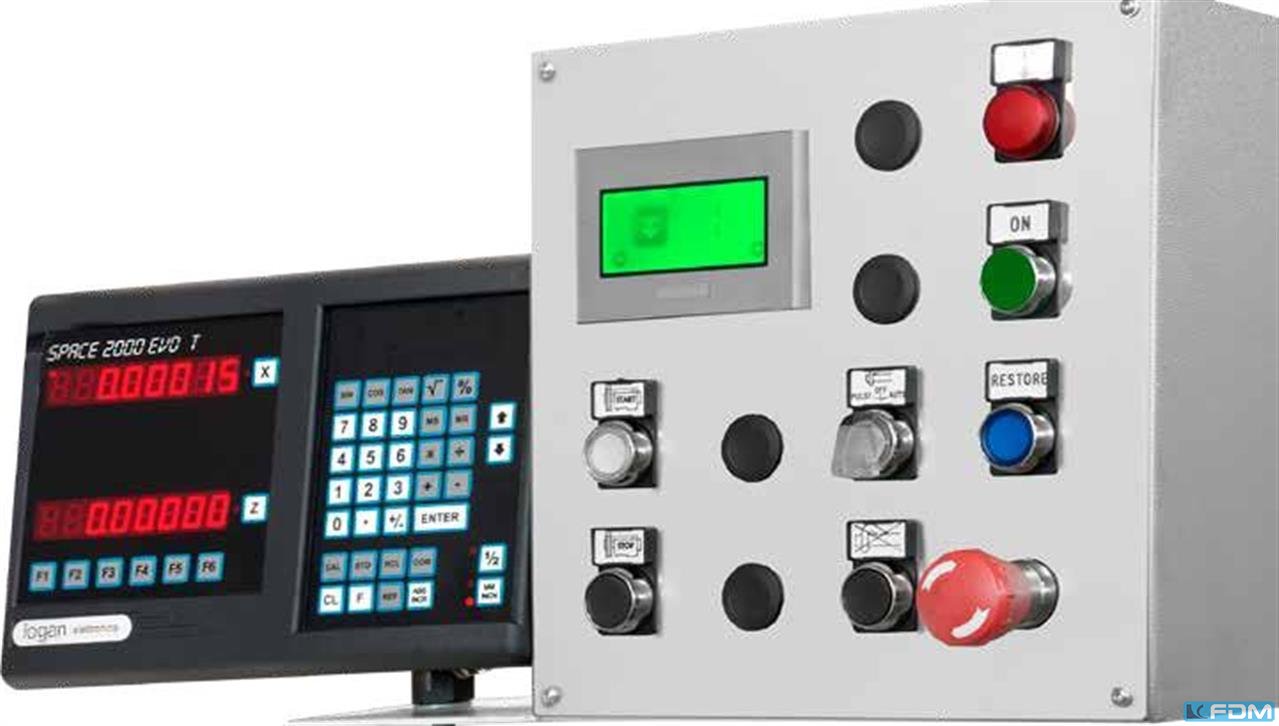

DRO:

für 2 Achsen

grinding wheel with flange:

450mm Ø,50mm Breite; 127mm Bohrung

grinding wheel extractor



balancing mandrel



complete cooling system



levellig elements



tools



dead centers



montiert auf dem Reitstock (ohne Diamant)

counter for table turning



technical documentation in German language



CE-design



Telescope cover for guideways:

für den Tisch aus Stoff

machine lubrication:

5l für die Spindel und 5l für den Tisch

sliding doors:

2 pc

frequency converter:

für den Spindelmotor und Werkstückantrieb (stufenlos)

encoder:

inkrementeller Linearencoder für Tisch und Schleifspindel

hydraulic unit:

ohne Öl

central lubrication



pneumatic unit



automatic workpiece measurement
hydr. tailstock quill
3-jaw chuck


Dust suction
internal grinding device
automatic wheel balancing system
touch probe
automatic workpiece measurement
linear scales
oil mist collector
air condition for the cabinet
steady rests
collet closer
crash control
