Flaring Cup Wheel Grinding Machine

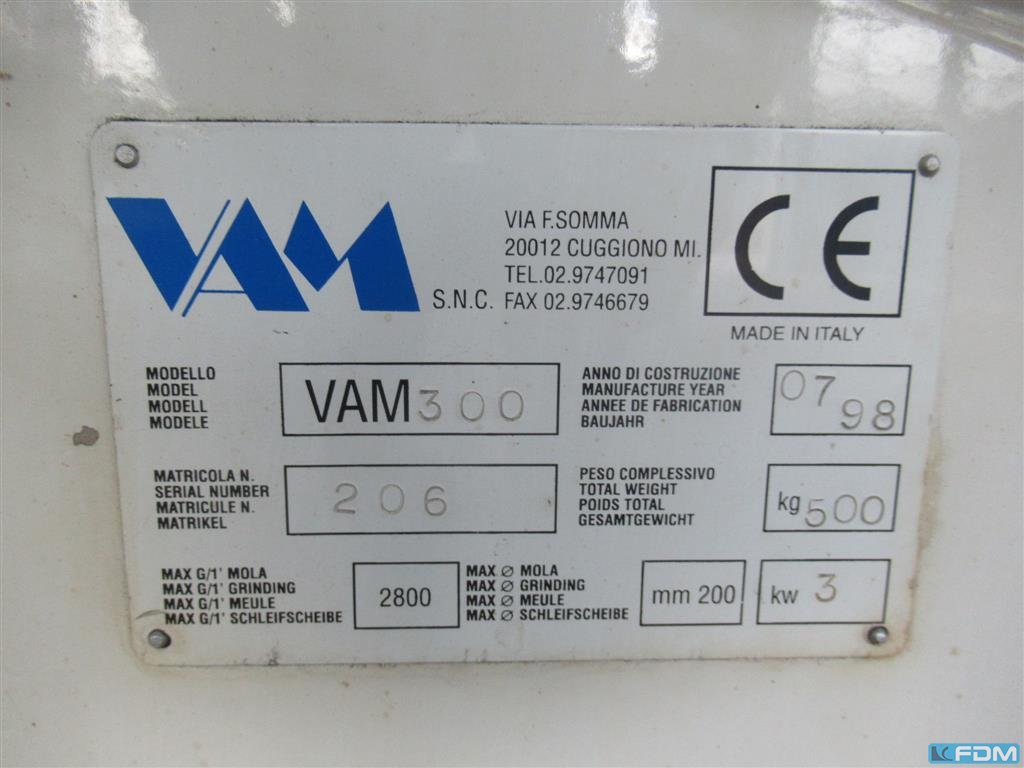

VAM VAM300
- Stock number:
- 1087-0800313
- Year / Condition:
- 1998
- Control unit:
- conventional
- Country of origin:
- Italy
- Freight basis:
- EXW, free on truck unpacked
- Item location:
- Leipzig 3
- Delivery time:
- immediately
Picture / documents / videos
Technical specs
Details
- height of profile:
- 180 mm
- max. dia. of grinding wheel:
- 200 / Topfscheibe mm
- grinding wheel hole diameter:
- k.A.
- grinding spindle speed:
- 2800 U/min
- Table dimensions:
- LxB: 500 x 160mm mm
- voltage:
- 220 / 380 V
- total power requirement:
- 3,0 kW
- weight of the machine ca.:
- 0,57 t
- dimension machine approx.LxWxH:
- 1,1 x 1,0 x 1,7 m
Description
Application for face grinding
Magnet mount: LxW = 680 x 200mm; tilt approx. 15°; swivel 360° via radial scale
magnet: Type S2D; permanent magnet, clamping surface 300 x 150mm.
Grinding wheel support:
-adjustment vertical = length 180mm manual; swivel = approx. 45° right/left manual.
Operation via control panel on machine.
Coolant tank with pump and feed
