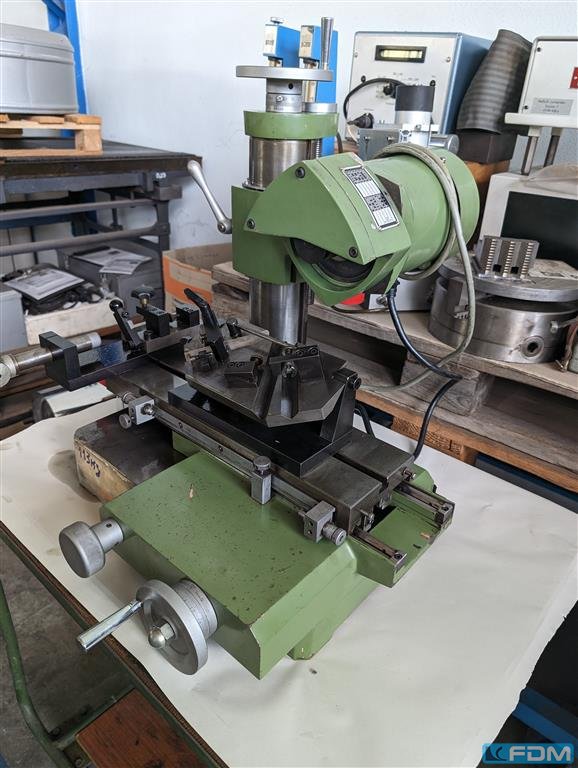

Turning Tool Grinding Machine
WMW nicht bekannt
- Stock number:
- 1087-0800853
- Year / Condition:
- -
- Control unit:
- conventional
- Country of origin:
- Germany
- Freight basis:
- EXW, free on truck unpacked
- Item location:
- Leipzig 1
- Delivery time:
- on request
Picture / documents / videos
Technical specs
Details
- grinding spindle - swivable:
- ja °
- spindle revolutions per minute :
- 2850 U/min
- work table::
- 50 x 134 x 44 mm
- table movement:
- X= 265 mm
- table movement:
- Y= 165 mm
- dimensions of grinding wheel:
- Bohrung Ø 20 mm
- voltage:
- 380 V / Hz
- machine weight approx.:
- 113 kg
- dimension machine approx.LxWxH:
- 0,63 x 0,56 x 0,64 m
Description
Grinding machine for twist drill cutting angle 30° / 40°
Hole of the grinding disc Ø 20mm
Adjustment path Z = 230mm manual

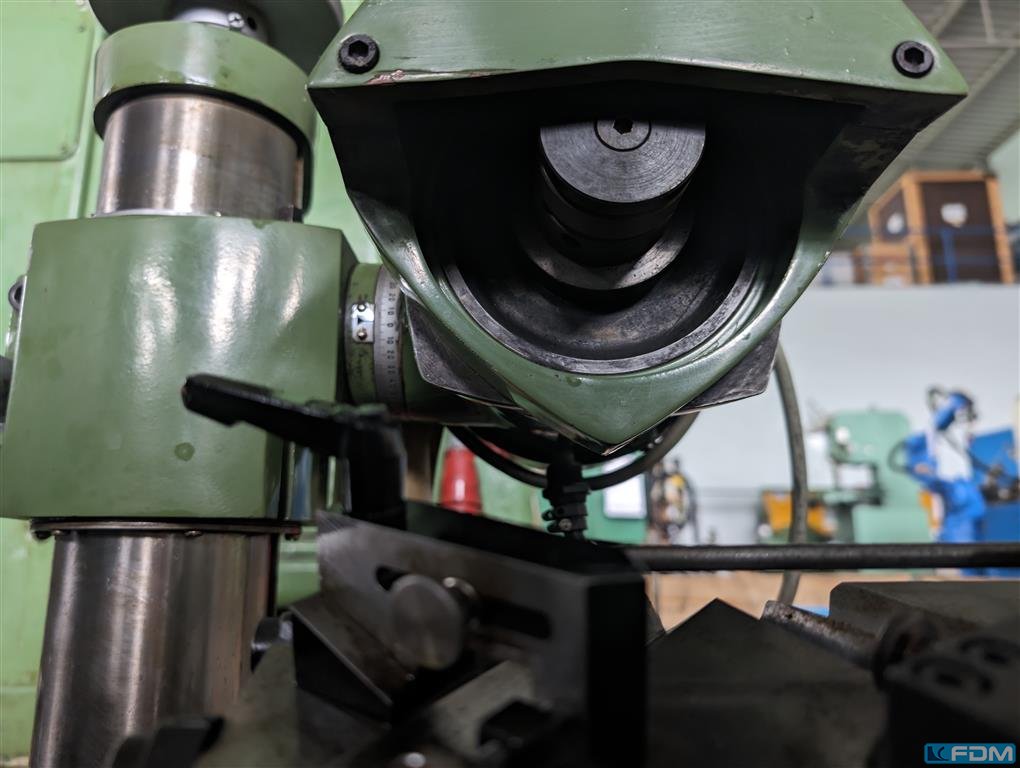

Headstock can be swivelled 360° via radial scale

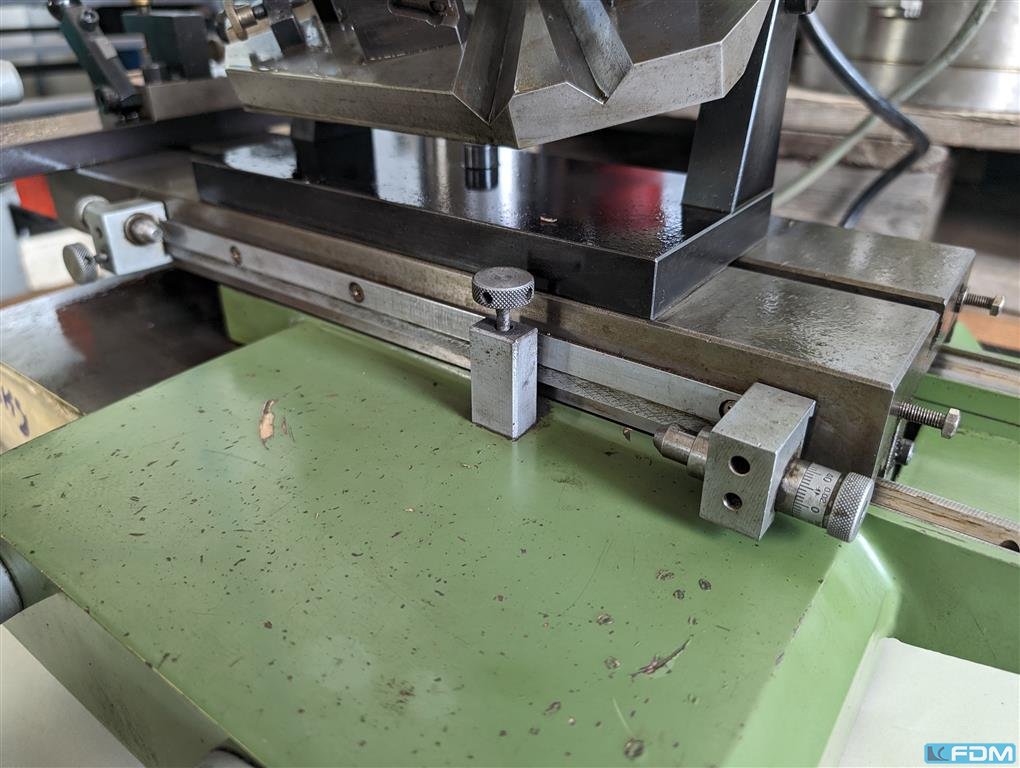

Table with clamping support LxW: 270 x 100mm for clearance angle 40° and 90°, 3x clamping devices, prism 14mm, as well as test device with 12mm prism and magnifying glass 90mm adjustable

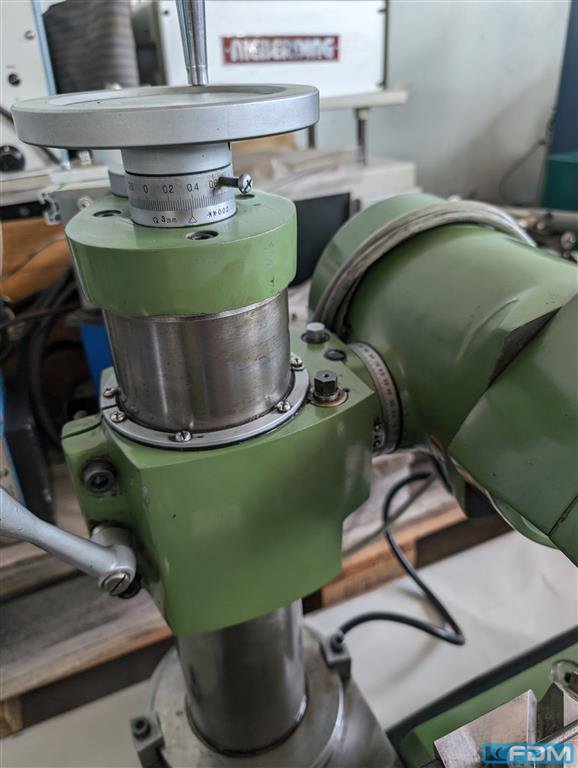

Column rotatable 360°
Grinding protection
2x 220V sockets
