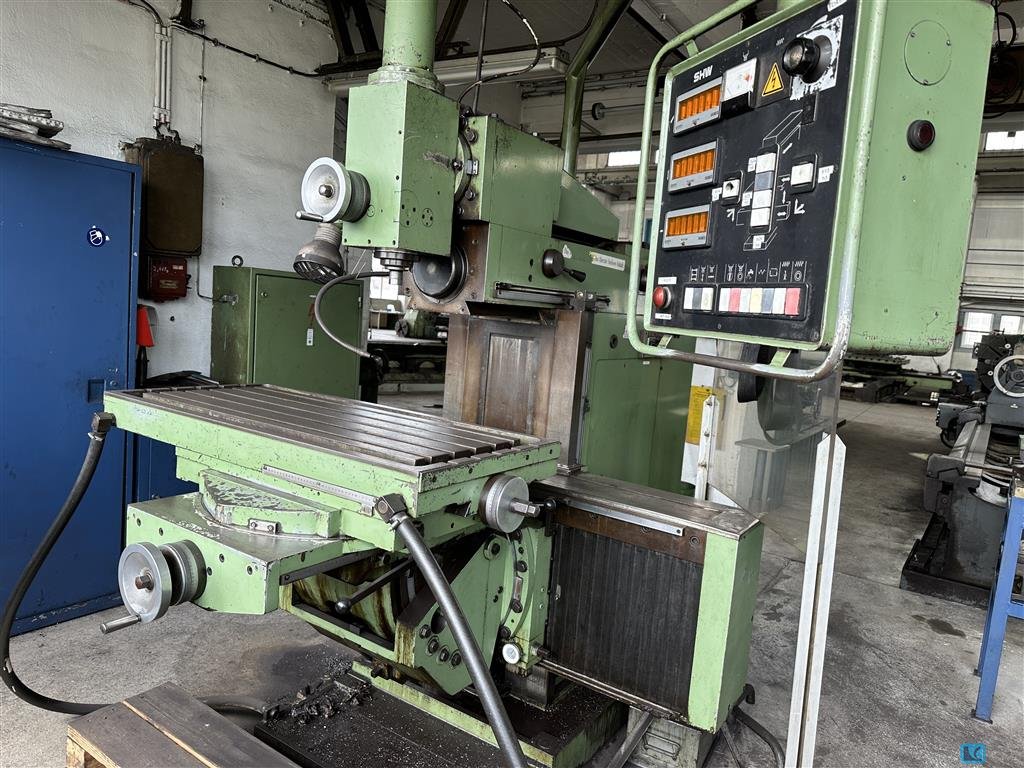

Universal Milling Machine
SHW UF 21
- Stock number:
- 1087-0400578
- Year / Condition:
- 1977
- Control unit:
- NC (TNS 415)
- Country of origin:
- Germany
- Freight basis:
- ex location Bitterfeld, free on truck
- Item location:
- GOG Bitterfeld - Bestand
- Delivery time:
- on request
Picture / documents / videos
Technical specs
Details
- x-travel:
- 1050 mm
- y-travel:
- 500 mm
- z-travel:
- 500 mm
- spindle taper ISO:
- SK40
- spindle head swivable left - right:
- 90 °
- quill travel:
- 180 mm
- range of revolution per miute:
- 36 - 1800 / 18 step U/min
- feed::
- X+Z: 0,3 - 1800 mm/min
- feed::
- Y: 0,3 - 900 mm/min.
- rapid traverse :
- X/Z: 1800 / Y: 900 mm/min
- table surface area:
- 1200 x 550 mm
- total power requirement:
- ca. 10 kW
- machine weight approx.:
- 4400 kg
- dimension machine approx.LxWxH:
- 3,1 x 2,5 x 2,2 m
Description

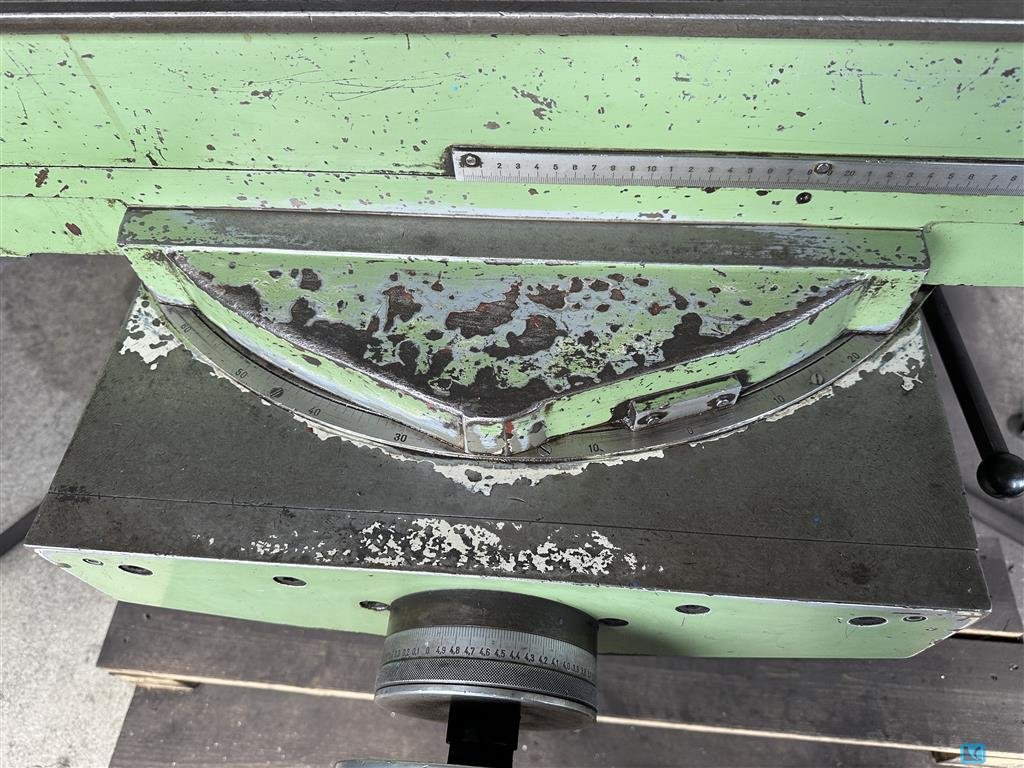

Console design with tilting, tilting and swiveling table, as well as adjustable vertical milling head.
Machine with 3-axis digital readout (with resolution 0.01mm)
with feed and individual drive of all three axes
stepless feed
X-axis:
Support lengthwise = 700mm; univ. milling table lengthwise 350mm = total lengthwise: 1050mm
Accessories:
Comparable with the pictures
