Universal Milling Machine

Details

x-travel:

700 mm

y-travel:

450 mm

z-travel:

450 mm

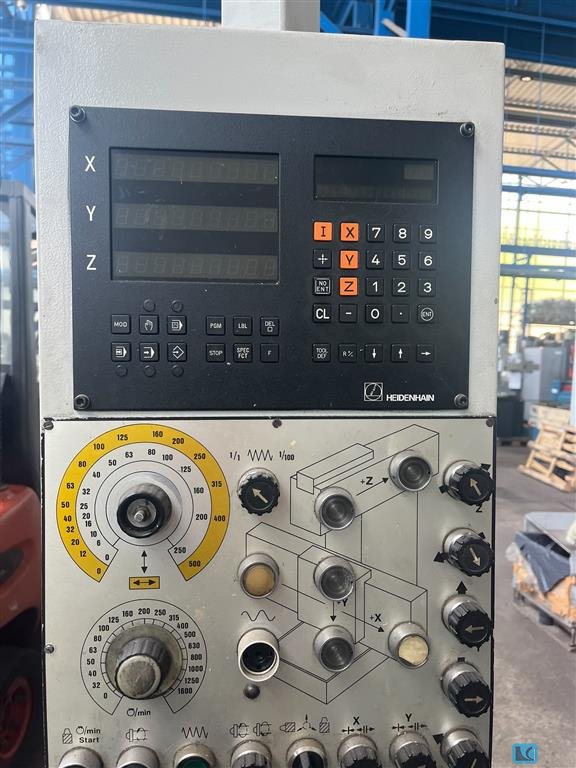

control:

Heidenhain TNC 121

spindle taper ISO:

SK 40

quill stroke vertical:

120 mm

spindle head swivable left - right:

je 90° °

turning speed range:

40 - 1.600 U/min

throat of the milling spindle:

200 mm

table surface area:

1.050 x 627 mm

table swivable approx.:

+45/ -45 Grad

table rotating:

360 Grad

table movement - horizontal:

200 mm

table feed:

X/Z 5 - 5.000 mm/min

table feed:

Y 2,5 - 250 mm/min

total power requirement:

8 kW

weight approx.:

3,2 kg

dimension machine approx.LxWxH:

2,3 x 2,0 x 1,850  m

Description

The MAHO MH 800 is a high-quality conventional universal tool milling machine designed for precise milling, drilling, and machining operations. It is ideally suited for toolmaking, mechanical engineering, fixture construction, as well as the production of individual components and small production batches.
