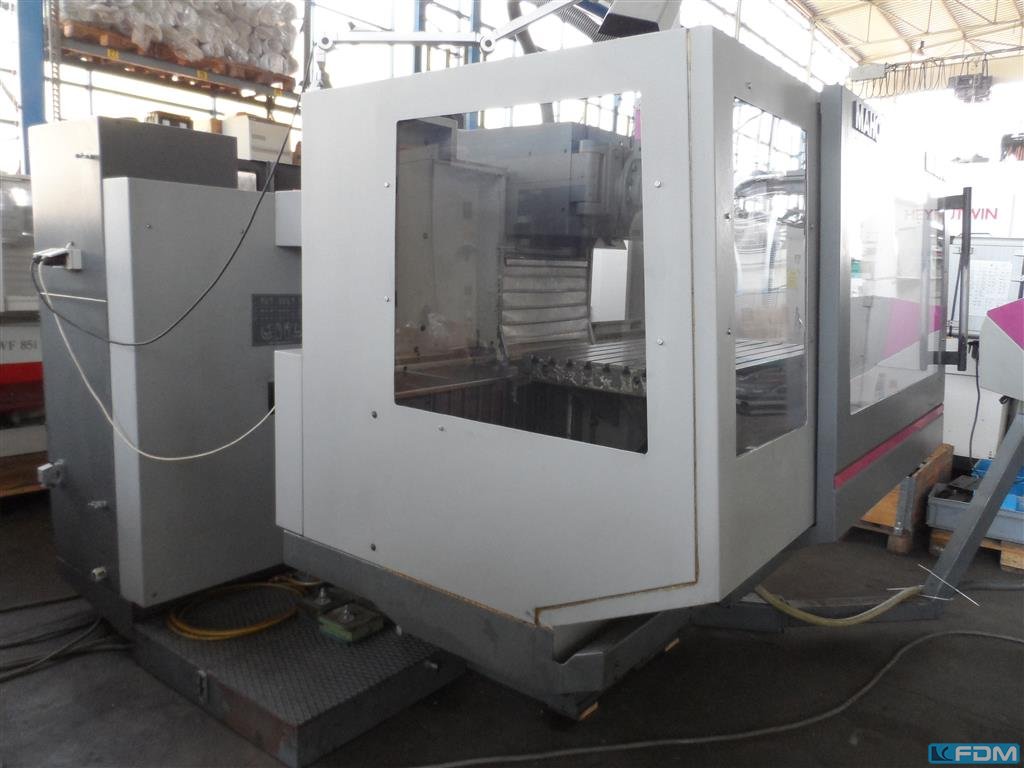

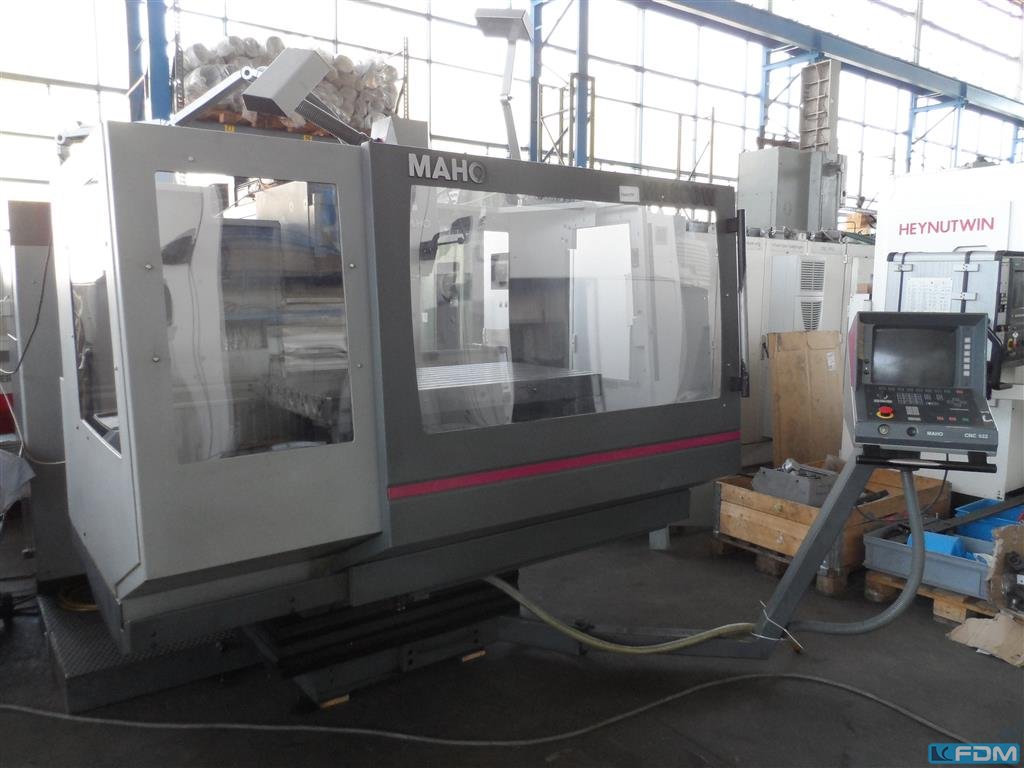

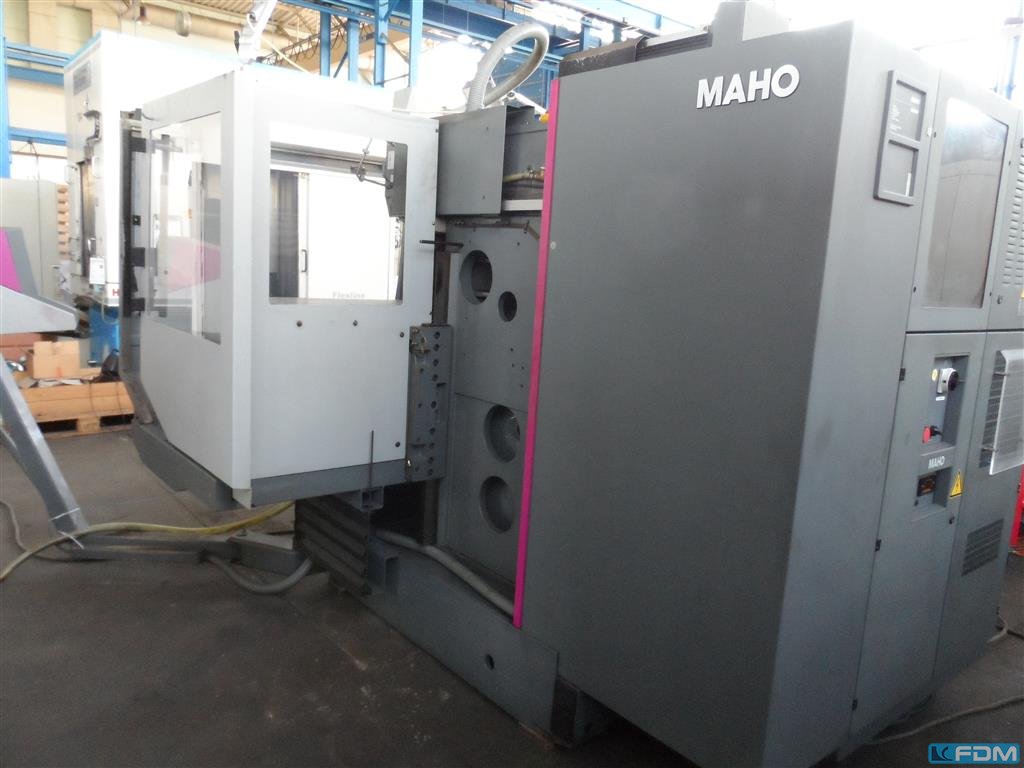

Universal Milling Machine
MAHO MH 800 W
- Stock number:
- 1087-0400556
- Year / Condition:
- 1992
- Control unit:
- CNC (Philips 532)
- Country of origin:
- Germany
- Freight basis:
- EXW, free on truck unpacked
- Item location:
- Leipzig 1
- Delivery time:
- immediately
Picture / documents / videos
Technical specs
Details
- x-travel:
- 800 mm
- y-travel:
- 550 mm
- z-travel:
- 500 mm
- spindle taper ISO:
- SK 40
- control:
- Philips 532
- quill stroke vertical:
- 80 mm
- turning speed range:
- 0-600 und 600-4000 steples U/min
- feed::
- 1 - 3000 mm/min.
- rapid traverse:
- 6 m/min
- table surface area:
- 1100 x 600 mm
- table feed:
- 1 - 3000 /stufenlos mm/min
- switched on hours:
- 82194 h
- total power requirement:
- 9,6 (12 kVA) kW
- weight approx.:
- 4200 kg
- dimension machine approx.LxWxH:
- 2,9 x 2,2 x 2,5 m
Description
The machine is located in the technical department.
further technical data:
- vertical adjustment table (z-axis) 500mm
- Headstock throat depth: min./max.: 200 / 750 mm
Equipment:
-coolant tank with pump
-Manual control unit (hand operated)
-linear measuring system Heidenhain
