Universal Milling Machine

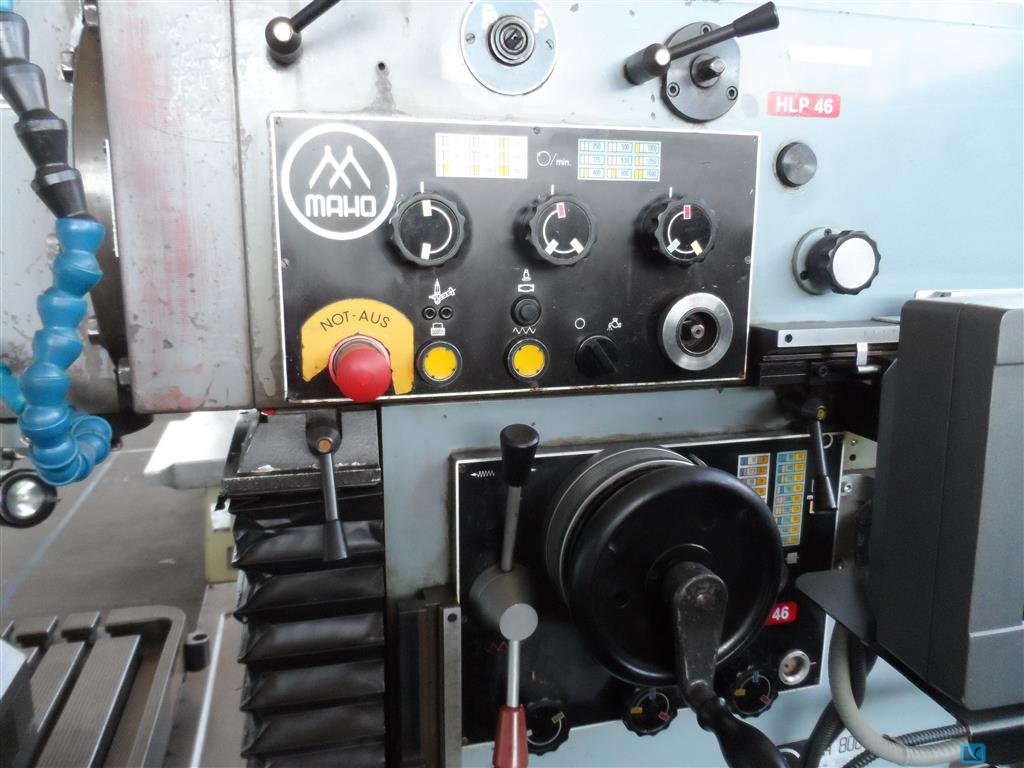

Maho MH 800
- Stock number:
- 1087-0400484
- Year / Condition:
- ?
- Control unit:
- conventional
- Country of origin:
- Germany
- Freight basis:
- EXW, free on truck unpacked
- Item location:
- Leipzig 1
- Delivery time:
- immediately
Picture / documents / videos
Technical specs
Details
- x-travel:
- 700 mm
- y-travel:
- 450 mm
- z-travel:
- 450 mm
- spindle cone ISO:
- 40 (SK 40)
- table surface area:
- 760 x 420 mm
- table feed:
- längs: 10 - 500 (Eilgang: 1,4 m/min.) mm/min
- table feed:
- vertical: 5 - 250 (Eilgang: 1,4 m/min.) mm/min
- spindle turning speed - continuous:
- 32 - 1600 / 18 step U/min
- spindle head swivable left - right:
- 10 ° links / rechts °
- quill stroke vertical:
- 125 mm
- feed continuous:
- 10 - 500 / 8 step mm/min
- rapid traverse:
- 1,4 m/min
- Total power requirement:
- 6,5 kW
- weight of the machine ca.:
- 3,0 t
- dimension machine approx.LxWxH:
- 2,3 x 2,0 x 1,85 m
Description
Further features:
Headstock projection min./max.: 2094 / 2544 mm
Equipment:
-cooling water pump with feed
-Linear path measuring system - Heidenhain ND750
Accessories:
-Machine vice
