Lathe - cycle controled

Details

turning diameter over bed:

720 mm

turning dia. over face-slide:

430 mm

turning length:

2000 mm

bed width:

480 mm

centre distance:

2000 mm

centre height:

360 mm

face slide travel:

410 mm

control:

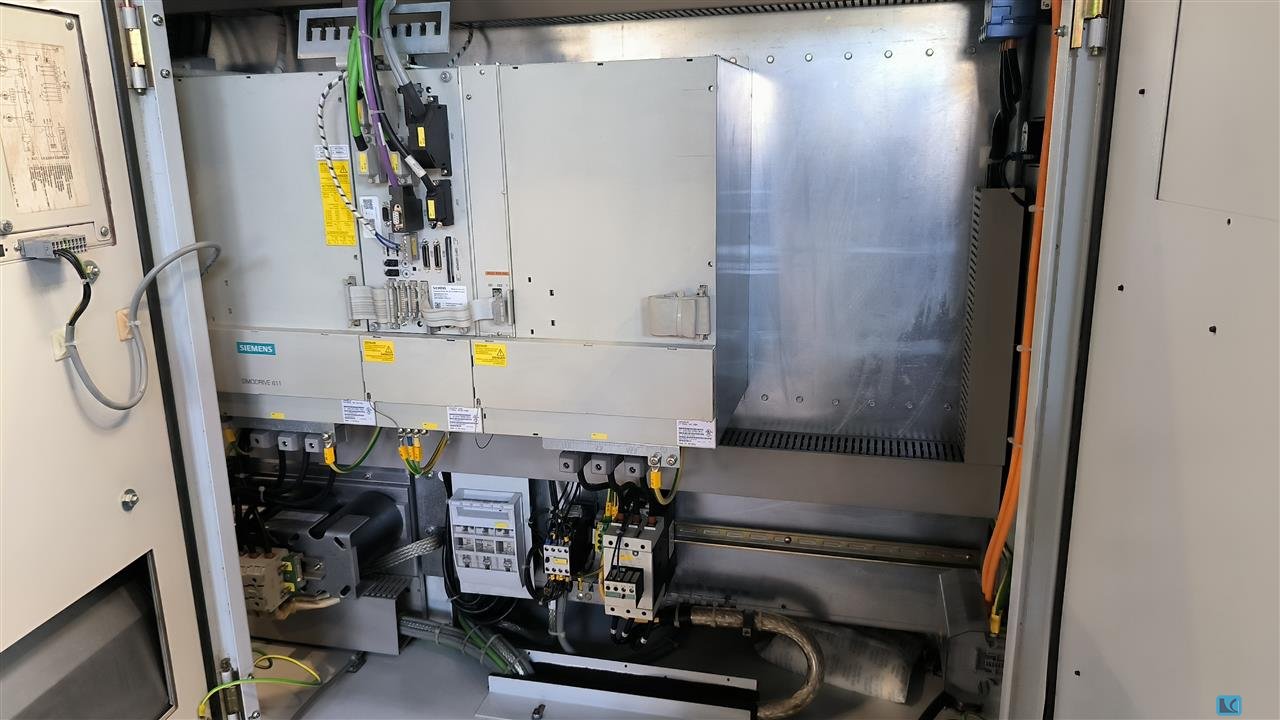

Siemens Sinumerik 810D Weiler D2 Steuerung

revolution per minute:

1 - 1800 U/min

spindle diameter:

280 mm

spindle bore:

216 mm

spindle head:

DIN 55026 - Größe 15

max. torque on the spindle:

4300 Nm

tailstock taper ISO:

MK 6

tailstock quill stroke:

225 mm

tailstock quill diameter:

115 mm

total power requirement:

30 kW

Weight approx.:

6,2 t

dimension machine approx.LxWxH:

4,3 x 2,5 x 1,95 m

Description

WEILER E70 x 2000 Oil Country Lathe – Rare Special Version with 216 mm Spindle Bore
We are pleased to offer this exceptionally rare WEILER E70 x 2000 Oil Country Lathe, manufactured in 2003, in very well-maintained condition.
This machine is not a standard WEILER E70, but a factory-built special Oil Country version, specifically designed for machining long pipes, bar stock and large-diameter workpieces.
Featuring an extra-large 216 mm spindle bore, this machine is one of the rare WEILER Oil Country Lathes and was specially developed for demanding applications in the oil & gas, pipeline, energy and heavy engineering industries.
Wide Range of Applications
Thanks to its rigid construction, large spindle bore and heavy-duty design, this machine is ideally suited for:
Oil & Gas Industry
Drill Pipe Machining
Casing and Tubing Pipes
Pipeline Construction
Energy Industry
Steel and Pipe Mills
Mechanical Engineering
Heavy Equipment Manufacturing
Repair and Maintenance Workshops
Machine Repair Companies
Tool and Die Shops
General Engineering Workshops
Job Shops and Contract Manufacturing
Single-Part and Small Batch Production
Hydraulic Cylinder Manufacturers
Companies machining large bars, shafts and tubular materials
