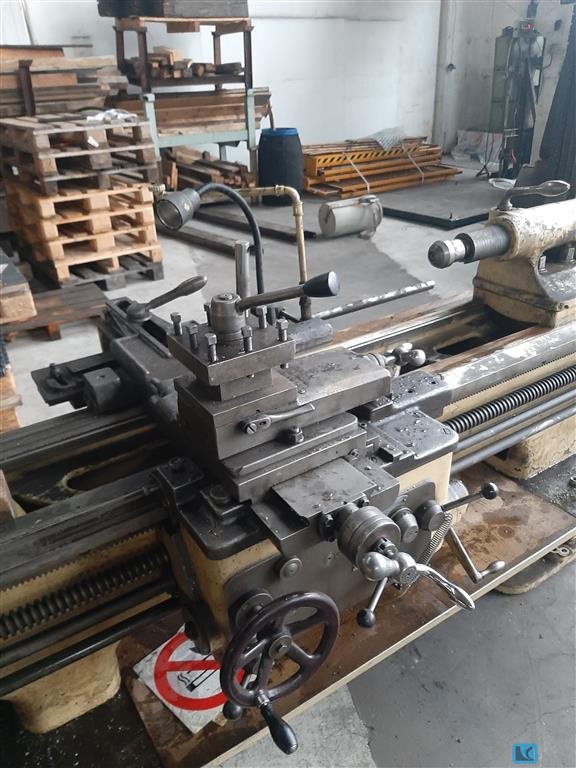

Center Lathe
VDF - HEIDENREICH & HARBECK V3
- Stock number:
- 1087-0303089
- Year / Condition:
- -
- Control unit:
- conventional
- Country of origin:
- Germany
- Freight basis:
- ex location Bitterfeld, free on truck
- Item location:
- GOG Bitterfeld
- Delivery time:
- on request
Picture / documents / videos
Technical specs
Details
- turning diameter over bed:
- 230 mm
- turning diameter over support:
- 135 mm
- centre distance:
- 2000 mm
- spindle bore:
- 60 mm
- tailstock quill taper MT:
- MK 5
- tailstock quill adjustment::
- 300 mm
- total power requirement:
- 5,5 kW
- weight of the machine ca.:
- 2,5 t
- dimension machine approx.LxWxH:
- 3,7 x 1,20 x 1,30 m
Description
• 4 change gears installed
• No taper turning attachment
• 3-jaw chuck: Ø 350 mm
• 4-jaw chuck: Ø 315 mm
• Coolant system available
