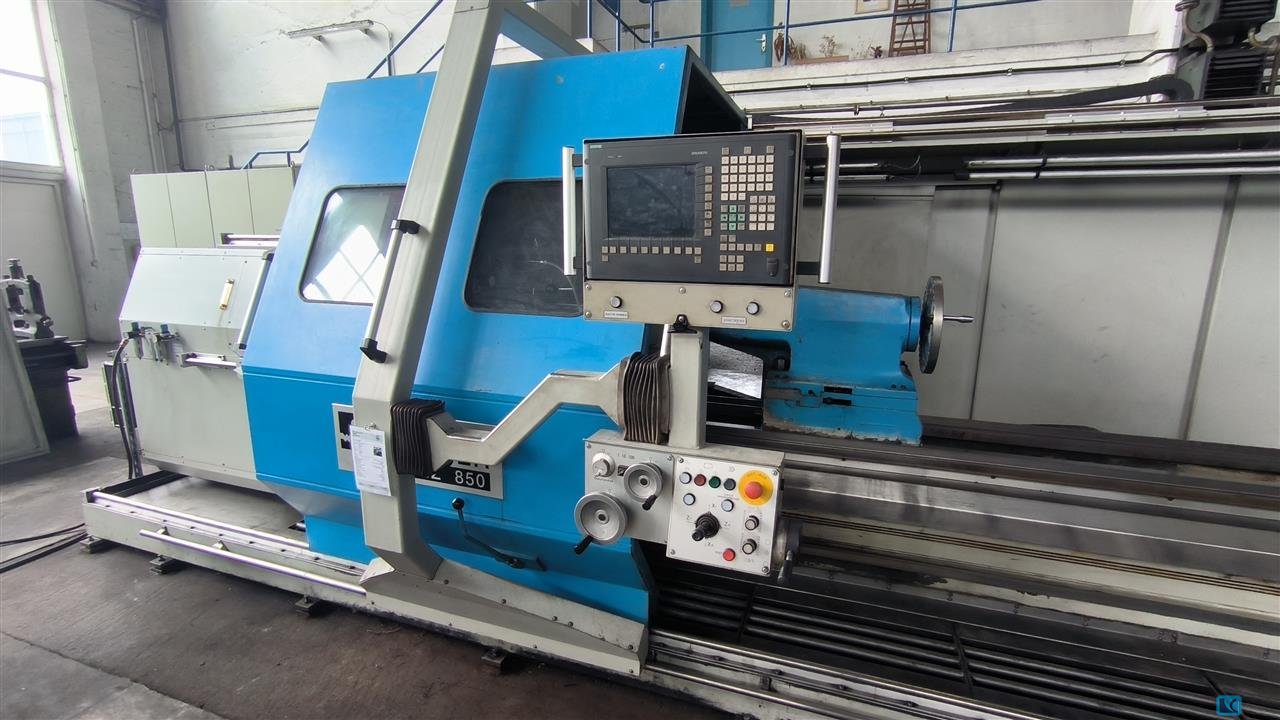

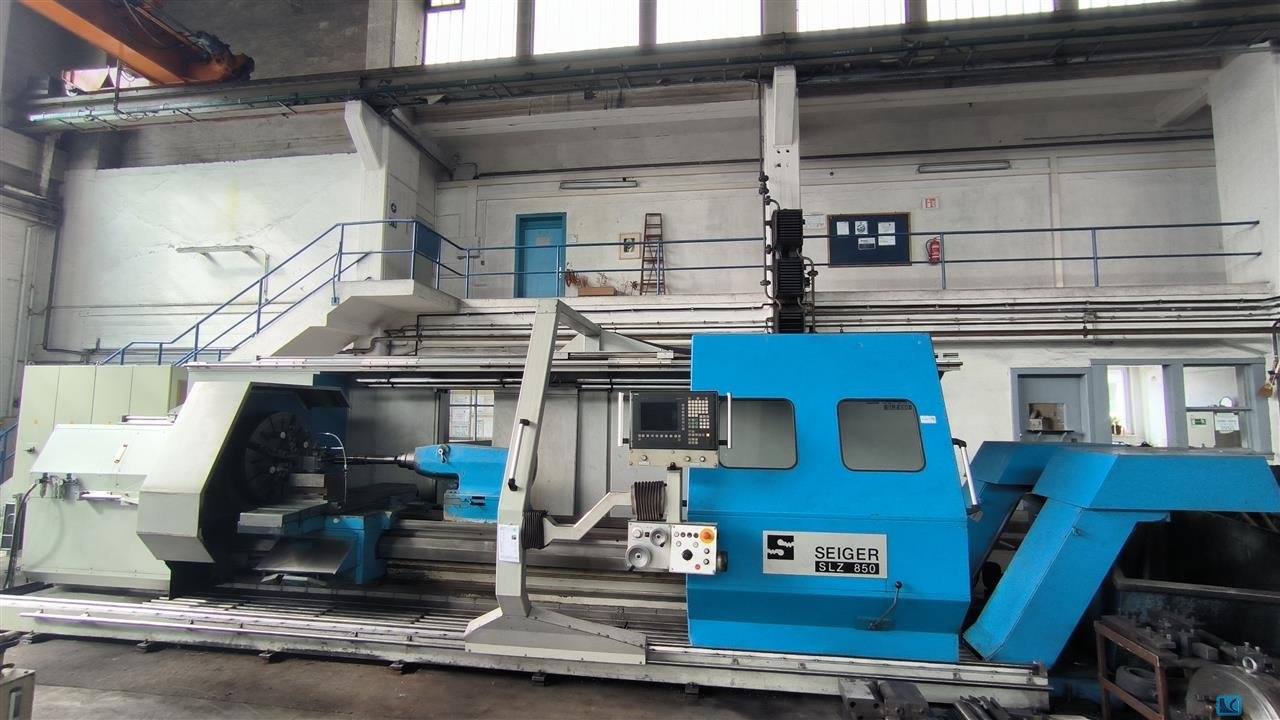

Lathe - cycle controled
SEIGER SLZ 850x4000
- Stock number:
- 1087-0300596
- Year / Condition:
- 2004
- Control unit:
- CNC (Siemens 810D)
- Country of origin:
- Germany
- Freight basis:
- from location,without dismantling unpacked
- Item location:
- GOG Bitterfeld - Bestand
- Delivery time:
- immediately
Picture / documents / videos
Technical specs
Details
- turning diameter over bed:
- 850 mm
- turning dia. over face-slide:
- 580 mm
- turning length:
- 4000 mm
- centre distance:
- 4000 mm

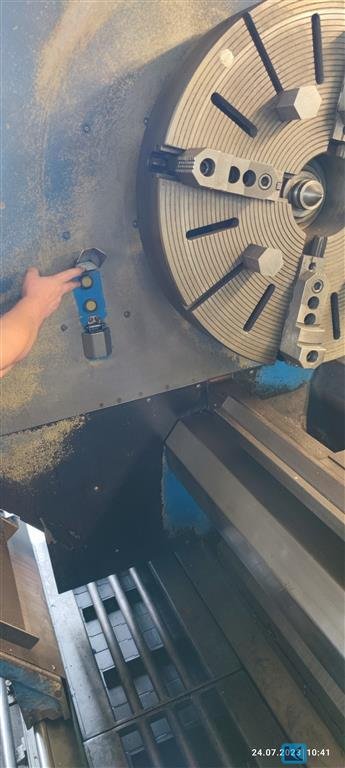

- faceplate diameter:
- 800 mm

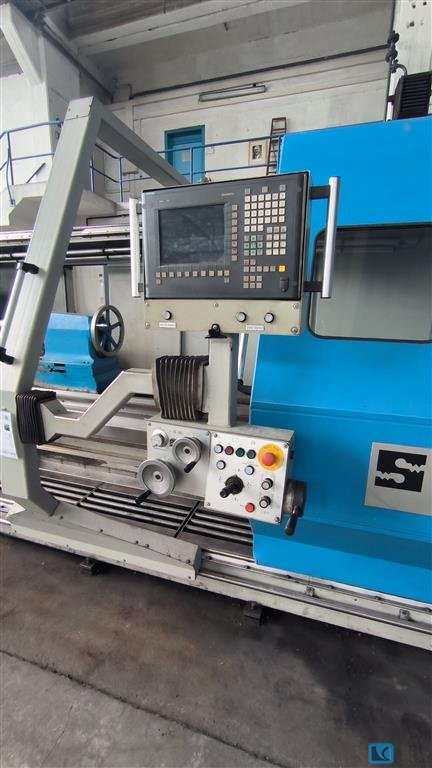

- control:
- Siemens 810D
- revolution per minute:
- 1 - 1600 / 2 step U/min
- max. torque on the spindle:
- 6000 Nm
- feed motor:
- X= plan + Z= längs: 16000 / 20000 N
- rapid motion - x-axis:
- 4 m/min
- rapid motion - y-axis:
- 7 m/min
- spindle passage:
- 130 (Spindelkopf DIN 55027 Gr. 11) mm
- operating hours - idle run:
- werden noch ausgelesen h
- tailstock taper ISO:
- MK 6
- tailstock quill stroke:
- 350 mm
- max. workpiece weight between centers:
- 5000 kg
- max. workpiece weight -without tailstock:
- 1800 kg
- interface:
- RS 232 / V24
- voltage:
- 400 V / 50Hz V
- control voltage:
- 24 V Gleichstrom V
- total power requirement:
- ca. 52 kW
- Weight approx.:
- 14,0 t
- dimension machine approx.LxWxH:
- 2,6 x 9,1 x 2,5 m
Description
Cycle lathe
with Siemens cycle control
Motor: 37kW, rated speed 1500 rpm; max. speed 6500 rpm; torque 235 Nm
Two gear shift stages
Stage II: Spindle torque 258.9 to 1364.6 Nm
Stage I: Spindle torque 1050.4 - 5536.1 Nm
Feed drive Three-phase servo drive
2x chip conveyor
Double E-cabinet

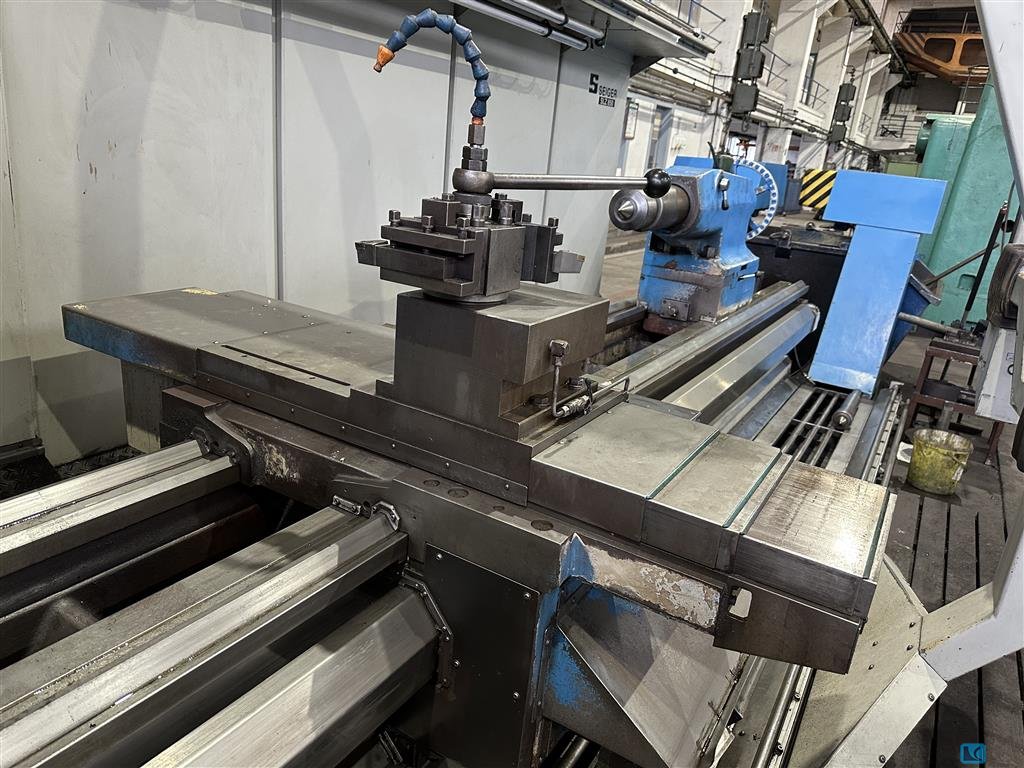

Quick-change steel holder parat
Coolant device
incl. various accessories see photo, as well as steady rest and 3-jaw chuck Ø 500mm Rota-S plus
