Radial Drilling Machine - Portable

Details

bore capacity in steel (diameter):

32 mm

x-travel:

750 mm

y-travel:

520 mm

drill capacity in cast iron:

45 mm

revolution per minute:

90 - 4500 U/min

feed steps:

6

bore spindle stroke:

250 mm

boring spindle diameter:

30 mm

drill spindle - Morse Taper:

MK4

vertical adjustment of the arm:

520 mm

throat max.:

1000 mm

throat min.:

250 mm

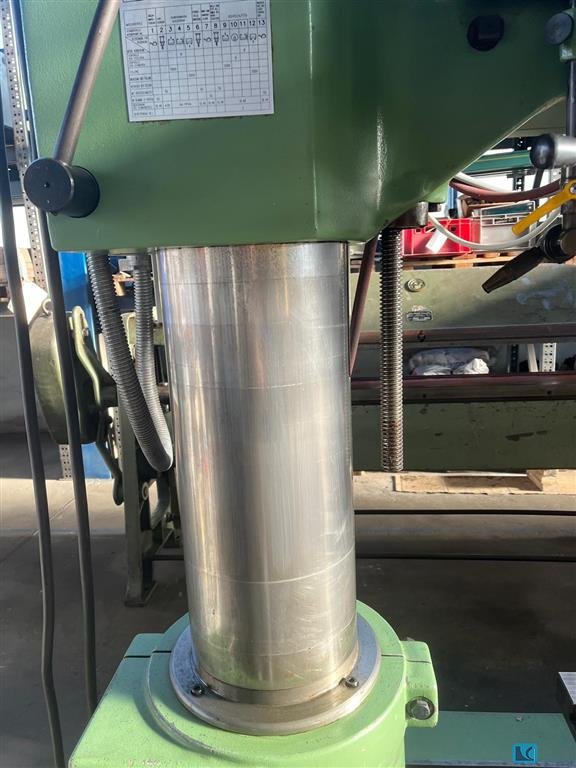

column diameter:

400 mm

swivel range of the arm:

180 °

table clamping surface LxW:

1150 x 800 mm

total power requirement:

3,5 KW

weight of the machine ca.:

2000 kg

dimension machine approx.LxWxH:

1,7 x 1,07 x 2,61 m

Description

The KOVOSVIT VO 32 is a robust and versatile radial drilling machine designed for industrial applications. The machine is suitable for drilling, boring, countersinking, reaming, and tapping operations in steel, cast iron, and other materials. Thanks to its swiveling radial arm and large reach, even large and heavy workpieces can be machined conveniently without the need for complex repositioning.
The machine features a massive cast-iron construction, a powerful main drive, and an automatic feed system. The drilling head can be moved along the radial arm, providing a large working area. Its solid design ensures high precision, reliability, and a long service life, even under continuous operation.

Equipment:
·Including coolant pump
·1 × boring tool block (boring cube)
·1 × machine vise
