Machining Center - Vertical
MÜGA Werkzeugmaschinen GmbH S6040
- Stock number:
- 1087-0208037
- Year / Condition:
- 2015
- Control unit:
- CNC (Mitsubishi M70)
- Country of origin:
- Germany
- Freight basis:
- from location Wurzen, free on truck
- Item location:
- expected
- Delivery time:
- on request
Picture / documents / videos
Technical specs
Details
- x-travel:
- 600 mm
- y-travel:
- 400 mm
- z-travel:
- 500 mm
- control:
- Mitsubishi M70
- table-size:
- 2 × 700 × 400 mm mm
- table load capacity:
- 2 × 250 kg kg
- tool taper:
- SK40 / ISO40
- Revolution per minute:
- 12.000 U/min.
- tool changer with:
- 24 Plätze (+1 Werkzeugwechselposition)
- total power requirement:
- 25 kW
- Weight approx.:
- 6,6 t
- dimension machine approx.LxWxH:
- 3,7 × 2,60 × 2,78 m
Description
The Müga S6040 is a modern vertical CNC machining center designed for the precise complete machining of workpieces in single-part, small-batch, and series production.

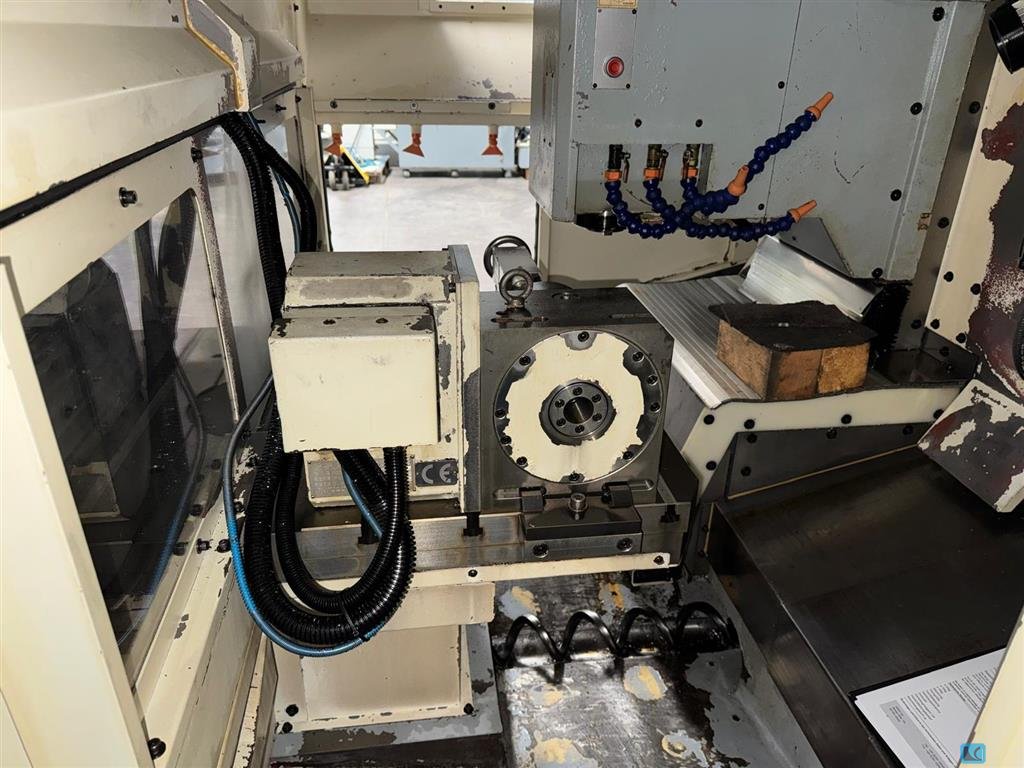

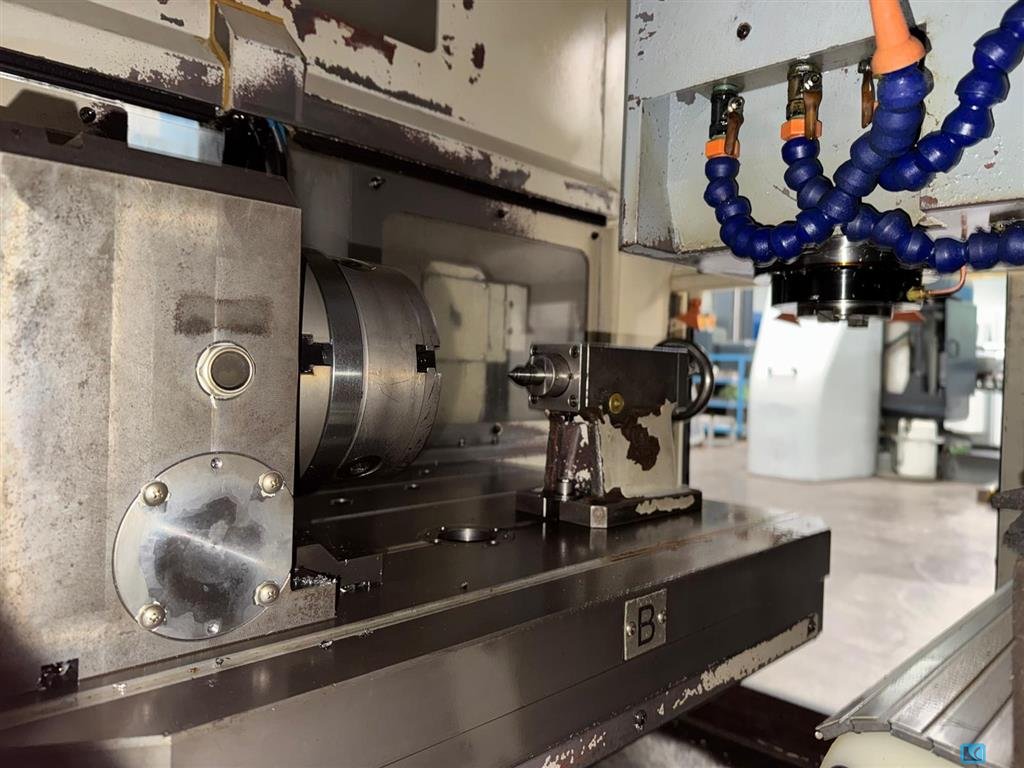

The machine is equipped with a high-performance main spindle with speeds of up to 12,000 rpm, a Mitsubishi M70 CNC control system, and an integrated twin pallet changer (worktable changer) for highly efficient and productive machining.
Its rigid machine structure and precision linear guideways make the Müga S6040 ideally suited for demanding milling, drilling, tapping, and machining operations in toolmaking, mechanical engineering, mold making, and general metalworking.
