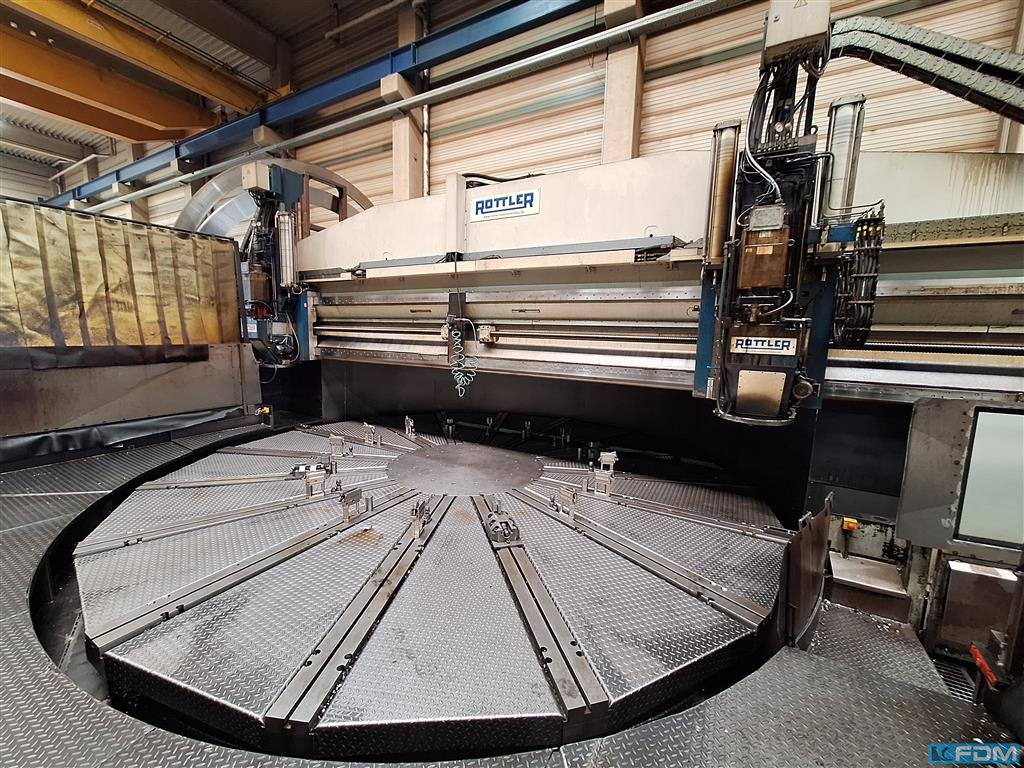

Flange Drilling Machine
ROTTLER PORTAL 7000
- Stock number:
- 1034-13857
- Year / Condition:
- 2008 / used
- Control unit:
- CNC (SIEMENS 840 D)
- Country of origin:
- Germany
- Freight basis:
- ex site
- Item location:
- Wilnsdorf/ Germany
- Delivery time:
- immediately
Picture / documents / videos
Technical specs
Details
- bore capacity in steel (diameter):
- 100 mm
- max. pitch circle:
- 7000 mm
- number of spindles:
- 2
- bore spindle turning speed range:
- 1 - 3000 U/min
- high speed spindle taper ISO:
- 50
- bore slide stroke:
- 900 mm
- feed speeds:
- 1 - 6000 mm/min
- max. workpiece weight:
- 18000 kg
- total power requirement:
- 125 kW
- dimensions of the machine ca.:
- 13 x 11 x 5,1 m
Description
with CNC SIEMENS 840 D
Workpiece clamping up to dia. 7000 mm
The machine is equipped with 2 drilling spindle supports and through spindle coolant (50 bar)both supports can drill simultaneously. Spindle taper SK 50, 2 stages 1 -600 rpm 1650 Nm and
1 - 3000 rpm. 300 Nm
Chip conveyor and coolant device
