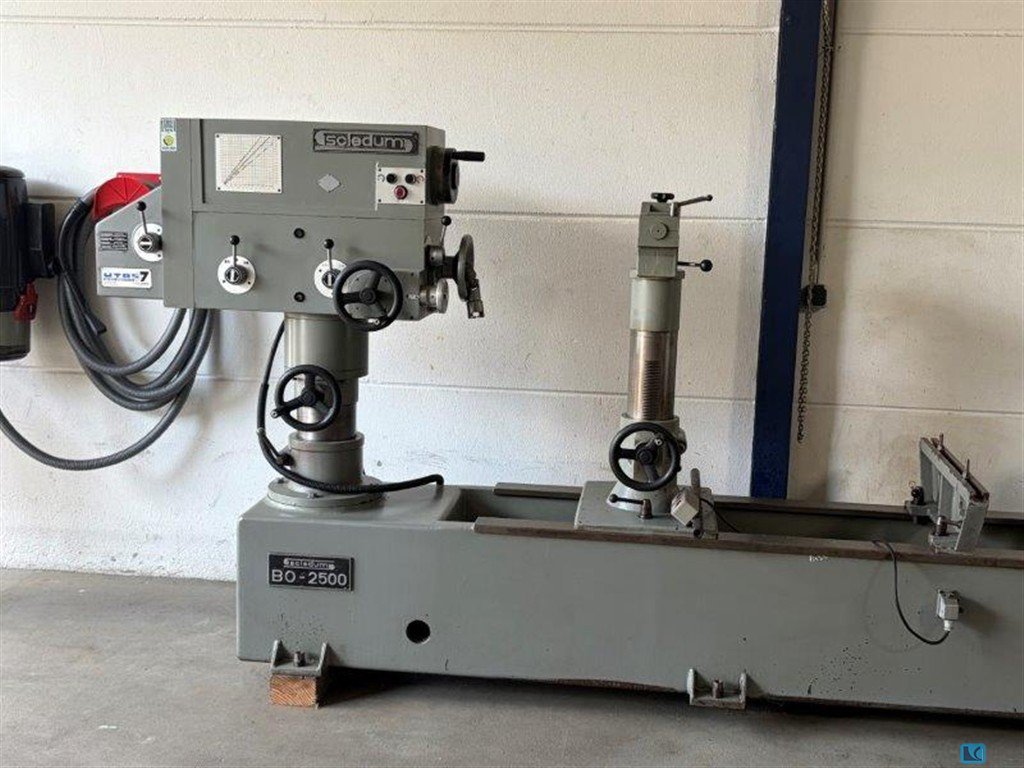

Honing Machine - Internal - Horizontal
SCLEDUM Ruaro BO-2500
- Stock number:
- 3402-260803
- Year / Condition:
- unbekannt
- Control unit:
- conventional
- Country of origin:
- unknown
- Freight basis:
- Item location:
- Delivery time:
- immediately
Picture / documents / videos
Technical specs
Details
- honing diameter:
- 45-200 mm
- stroke:
- 330 mm
- centre height:
- 350-700 mm
- Motor output:
- 1,5 kW
Description
Drill rods:
* Ø 60mm – 3000mm long
* Ø 50mm – 2600mm long
* Ø 42mm – 1920mm long
* Ø 40mm – 1920mm long
* Ø 26mm – 1270mm long
* Ø 24 mm – 1,000 mm long
* Ø 20 mm – 2,000 mm long
Typical features
*Feed: Infinitely variable in both directions
*Drive: Separate control of spindle rotation and vertical movement
*Centring: Manual or via dial gauge centring bridges
Geometry & working range (approximate values based on the BO series)
*Drilling range (Ø): approx. 24 mm to 150 mm (depending on the drill rods and
cutter heads used)
*Distance from table to centre of spindle: Variably adjustable (typically approx. 350 mm to over 700 mm for
large commercial vehicle engine blocks)
