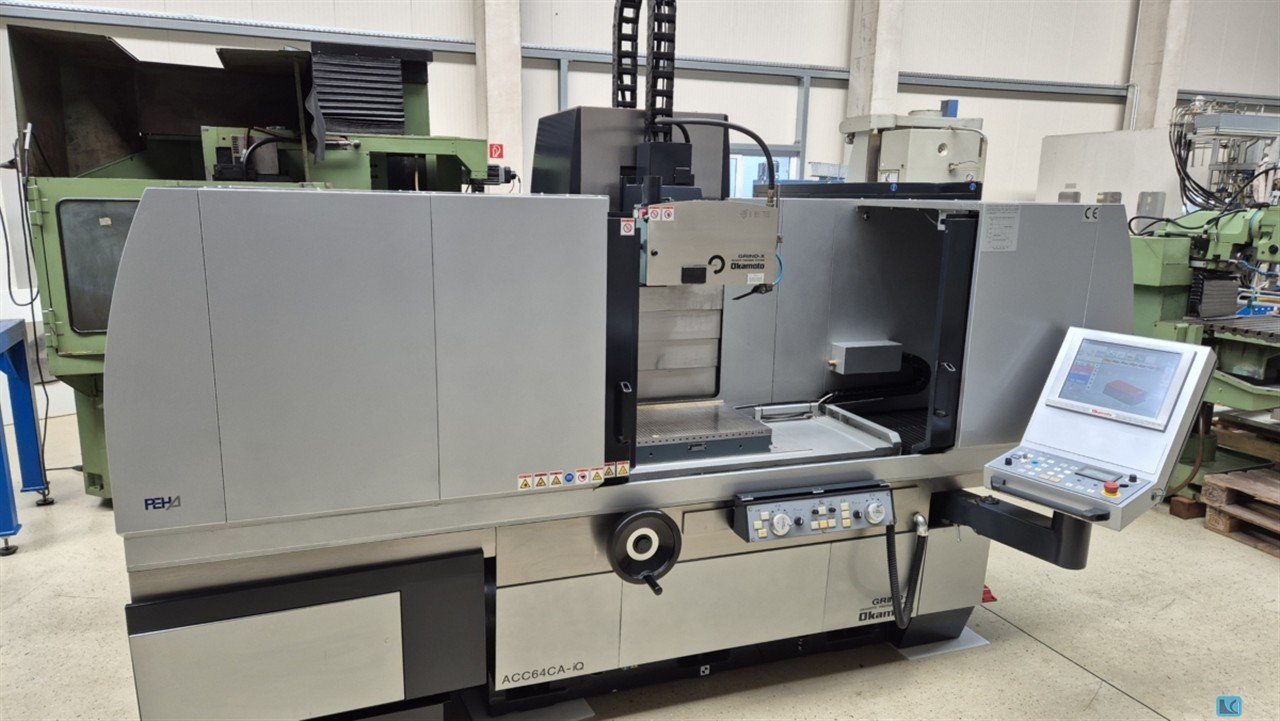

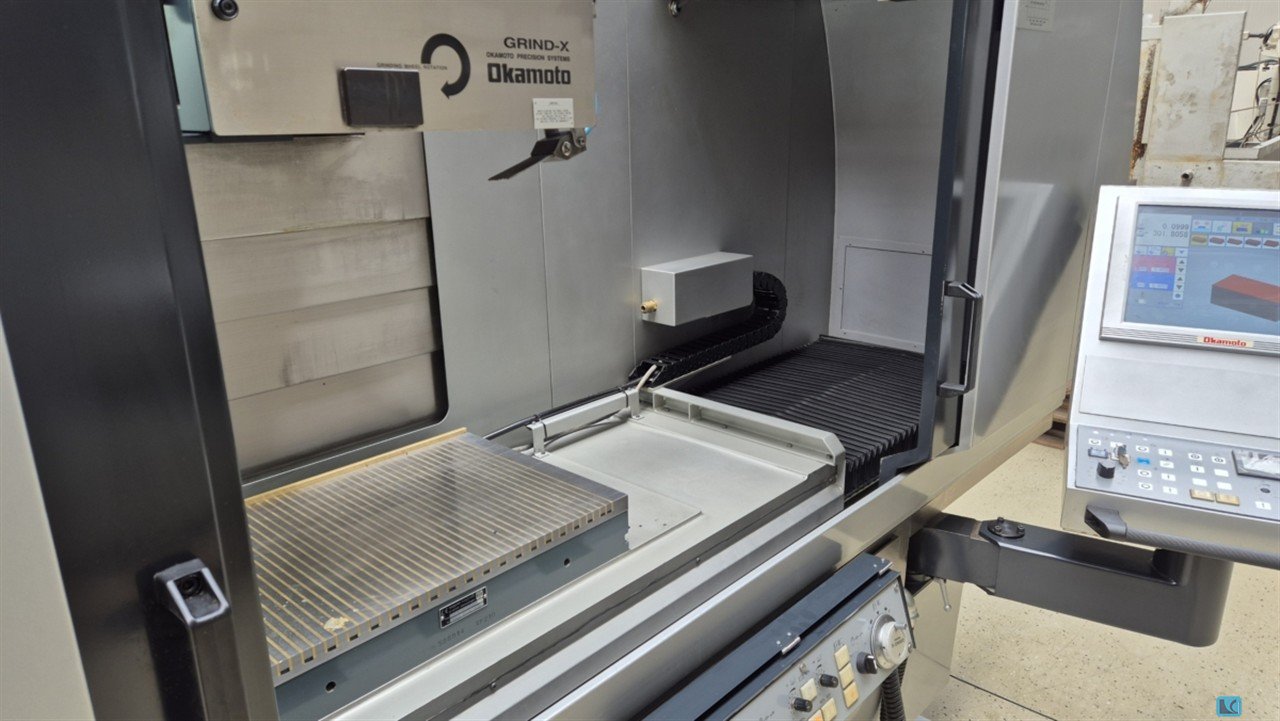

Surface Grinding Machine - Horizontal
OKAMOTO ACC 64 CA-iQ
- Stock number:
- 3402-260314
- Year / Condition:
- 2019
- Control unit:
- CNC (PC Steuerung Okamoto)
- Country of origin:
- unknown
- Freight basis:
- Item location:
- Delivery time:
Picture / documents / videos
Technical specs
Details
- grinding length:
- 600 mm
- grinding width:
- 400 mm
- workpiece height:
- 22,5 - 497 mm
- turning speed range:
- 1-2800 (stufenlos) U/min
- rapid traverse:
- 4000 mm/min
- main drive motor:
- 7,5 kW
- max. table load:
- 1000 kg
- weight of the machine ca.:
- 4,5 t
- dimensions of the machine ca.:
- 3592 x 3519 x 2203 mm
Description
Accessories:

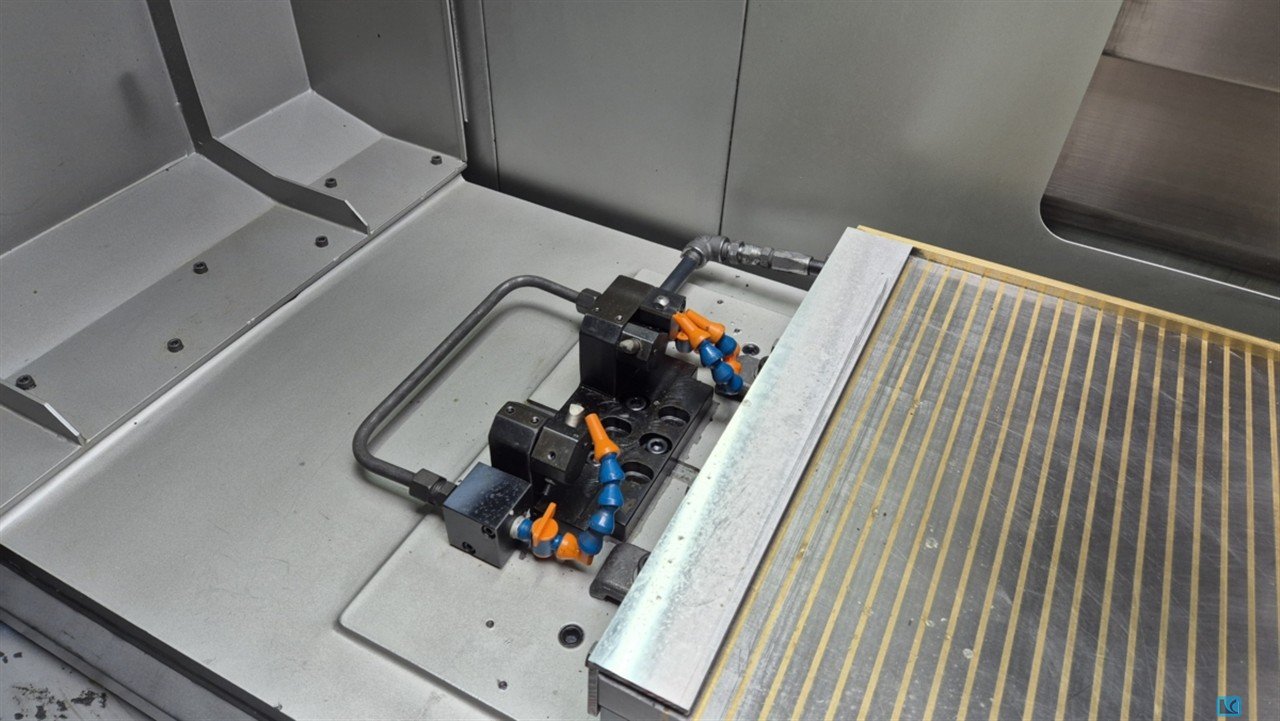

- Electro-permanent magnetic clamping plate: 400 x 600 mm, P13, overall height 80 mm (manufactured by Wagner)
- 2 grinding wheel flanges
- Table dresser
- Automatic straightening device, mounted on the spindle head
- Automatic compensation of the dressing amount
- Automatic central lubrication
- Ball screw in the Y and Z axes with AC servo motor and measuring system
- Coolant system with belt filter unit
