CNC Lathe
WEILER E110
- Stock number:
- 3402-260105
- Year / Condition:
- 1999
- Control unit:
- CNC
- Country of origin:
- Germany
- Freight basis:
- intern
- Item location:
- Delivery time:
- intern
Picture / documents / videos
Technical specs
Details
- turning diameter:
- 1100 mm
- turning length:
- 2020/3020/4520/6020 mm
Description

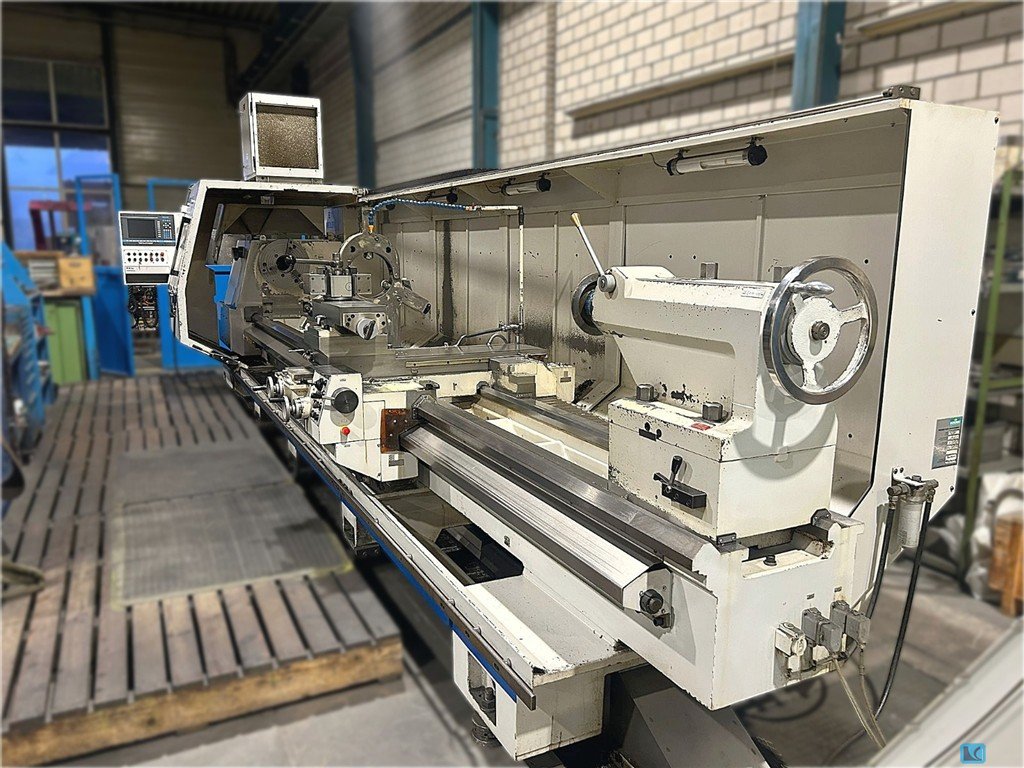

Technical Data – WEILER Universal Lathe E110
Working Area
Spindle center height:
550 mm
Distance between centers:
2000 / 3000 / 4500 / 6000 mm
Maximum turning length:
2020 / 3020 / 4520 / 6020 mm
Maximum swing over bed:
1100 mm
Maximum swing over cross slide:
730 mm
Maximum swing in gap:
1130 mm
Length of gap before faceplate:
230 mm
Maximum workpiece weight:
6000 kg
Main Spindle
Spindle nose according to DIN:
55027
Spindle diameter in front bearing:
178 mm
Faceplate diameter:
1000 mm
Maximum torque:
6000 Nm
Spindle bore:
128 mm
Maximum chuck diameter:
500 mm
Internal taper:
metric 140
Size:
11
Carriage / Tool System
Tool system:
Parat
Tool shank size:
40 × 40 mm
Number of longitudinal carriages:
1
Number of cross slides:
1
Cross slide travel (facing travel):
590 mm
Longitudinal travel:
2020 / 3020 / 4520 / 6020 mm

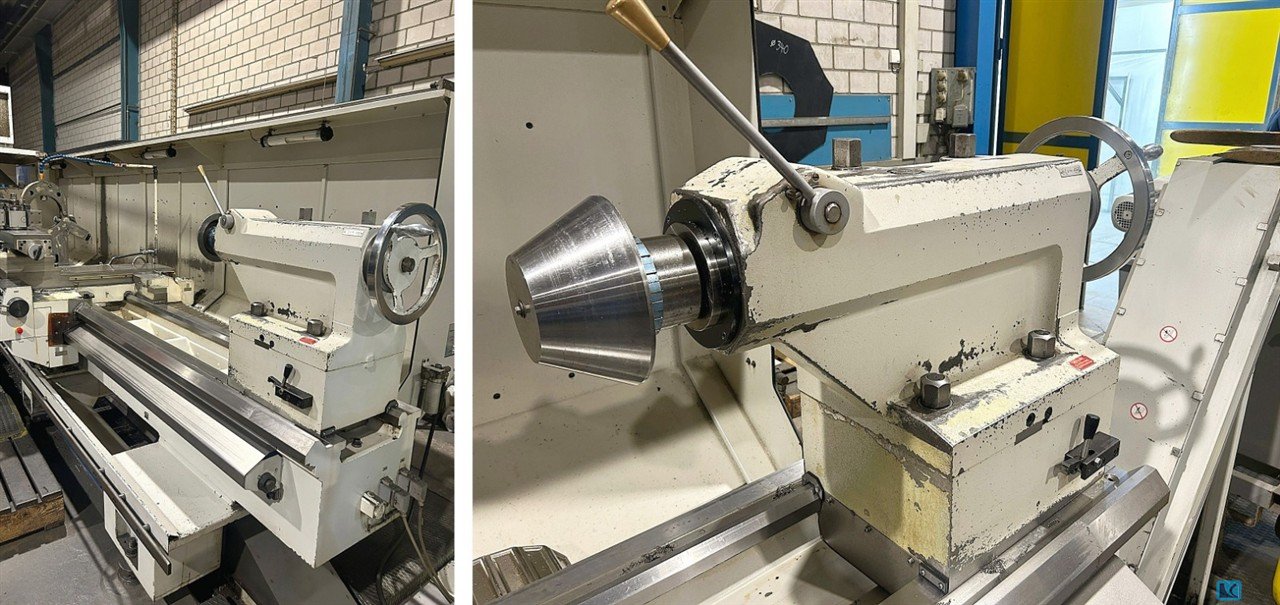

Tailstock
Tailstock taper:
MK 6
Quill diameter:
140 mm
Maximum manual quill travel:
300 mm
Maximum manual tailstock travel:
2000 / 3000 / 4500 / 6000 mm
