milling machining centers - vertical

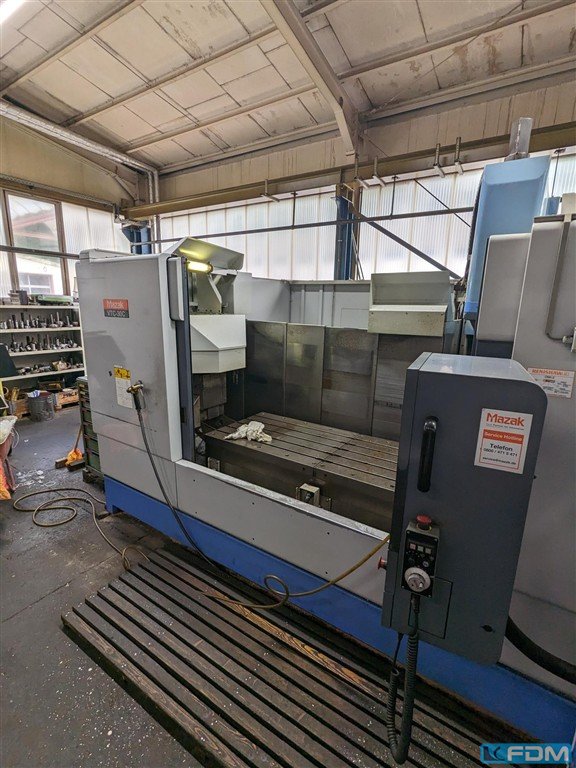

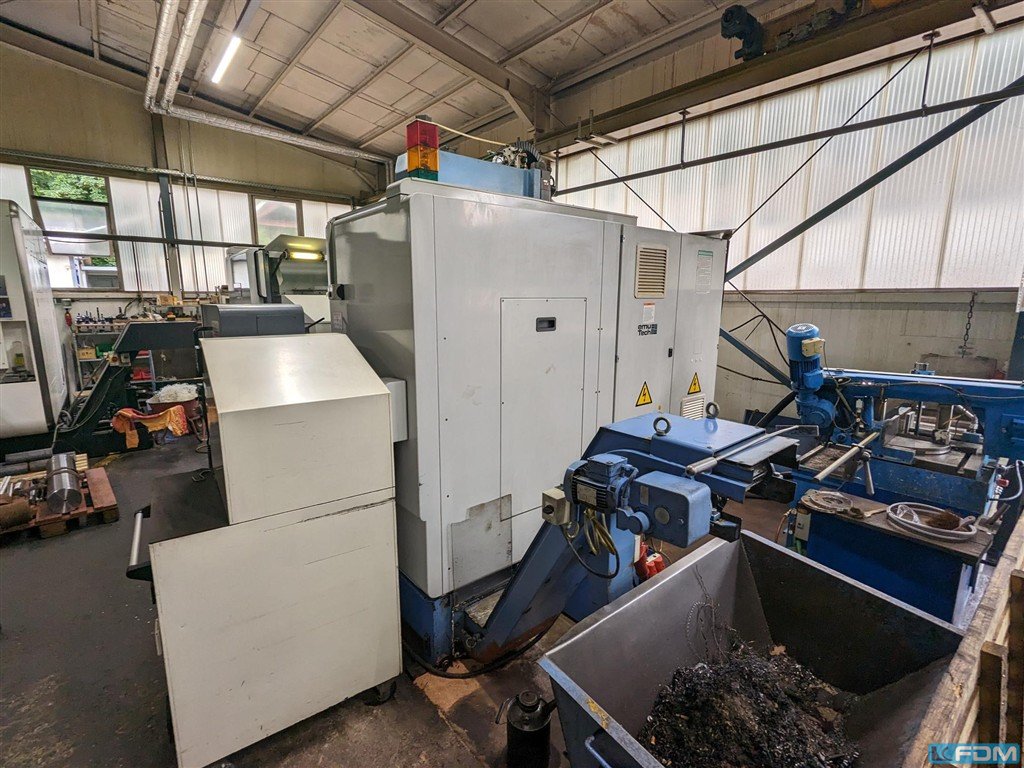

Mazak VTC-30 C
- Stock number:
- 3402-250203
- Year / Condition:
- 1998
- Control unit:
- CNC (MAZATROL M PLUS)
- Country of origin:
- UK
- Freight basis:
- Item location:
- Delivery time:
Picture / documents / videos
Technical specs
Details

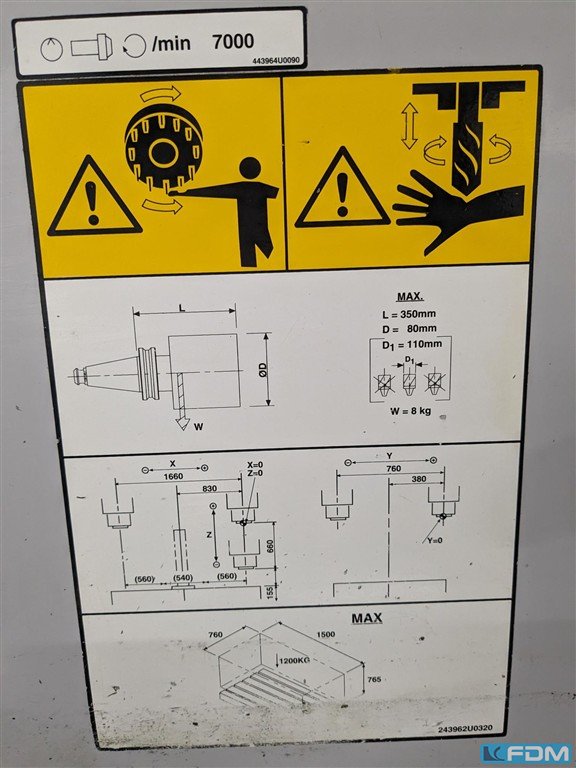

- x-travel:
- 1660 mm
- y-travel:
- 760 mm
- z-travel:
- 660 mm
- weight of the machine ca.:
- 8700 t
- dimensions of the machine ca.:
- 4.320 x 3.380 mm
- distance spindlenose - table min./max.:
- 808 mm
- distance work spindle /surface of the table:
- 155 - 815 mm
- Machine height:
- 2850 mm
- floor space required (w/o switchgear cabinet):
- 4.320 x 3.380 mm
- spindle motor:
- 11 (10 Minuten) /7,5 (30 Minuten)/ 5,5 (Dauerbetrieb) kW
- tool taper:
- SK 40
- Spindle RPM:
- 40 - 7.000 (Standard ) / 40 - 10.000 ( Option ) 1/min
- surface area:
- 2.000 x 760 mm
- max. table load:
- 1.000 kg
- feeds X-axis:
- 1 - 5.000 mm/min
- rapid traverse X-axis:
- 24.000 m/min
- rapid traverse Y-axis:
- 24.000
- feeds Y-axis:
- 1 - 5.000 mm/min
- feeds Z-axis:
- 1 - 5.000 mm/min
- rapid traverse Z-axis:
- 20.000 m/min
