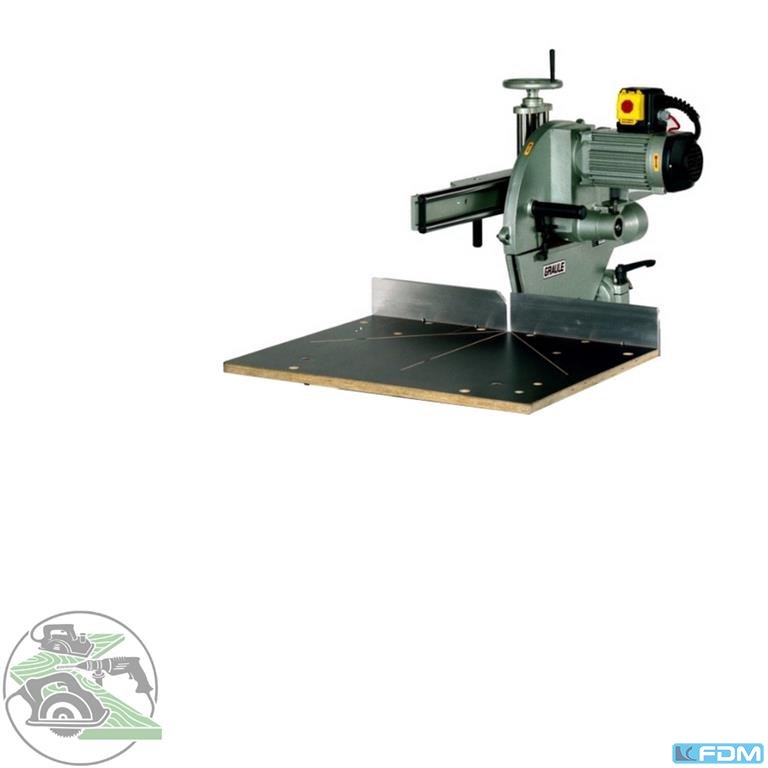

Mitre saw
Typ ZS 170 N (neigbar)
- Stock number:
- 2004-44938
- Year / Condition:
- *
- Control unit:
- conventional
- Country of origin:
- Freight basis:
- Item location:
- Delivery time:
Picture / documents / videos
Technical specs
Description
Description:
- Crosscut and miter circular saw with a maximum cutting height of 170 mm
- Miter-adjustable machines in 2 levels
- Stable gray cast iron construction
- Precise ball bushing of the tool slide on hardened and
ground steel shafts
- Manual saw feed
- Fast miter adjustment up to 25 ° horizontally and up to 45 ° vertically
- Readjustable fixed stops at 90 ° and 45 °
- Lower saw blade protection can be connected to the suction system
Scope of delivery:
1 x Graule crosscut and miter circular saw, type ZS 170 N
including additional charge for 3 kW 400 volt motor
Technical specifications:
- Motor: 400 V / 3.0 kW
- Speed: 3500 rpm
- Cutting length: 410 mm
- Cutting width: 410 mm at 90 ° / 290 mm at 45 °
- Cutting height: 170 mm at 90 ° / 115 mm at 45 ° 2
- Horizontal miter range: 45 ° -90 ° -25 °
- Vertical miter range: 90 ° -45 ° (inclined to the left)
- Saw blade Ø: 420 mm
- Suction nozzle Ø: 100 mm
- Weight: 120 kg
Description:
- Crosscut and miter circular saw with a maximum cutting height of 170 mm
- Miter-adjustable machines in 2 levels
- Stable gray cast iron construction
- Precise ball bushing of the tool slide on hardened and
ground steel shafts
- Manual saw feed
- Fast miter adjustment up to 25 ° horizontally and up to 45 ° vertically
- Readjustable fixed stops at 90 ° and 45 °
- Lower saw blade protection can be connected to the suction system
Scope of delivery:
1 x Graule crosscut and miter circular saw, type ZS 170 N
including additional charge for 3 kW 400 volt motor
Technical specifications:
- Motor: 400 V / 3.0 kW
- Speed: 3500 rpm
- Cutting length: 410 mm
- Cutting width: 410 mm at 90 ° / 290 mm at 45 °
- Cutting height: 170 mm at 90 ° / 115 mm at 45 ° 2
- Horizontal miter range: 45 ° -90 ° -25 °
- Vertical miter range: 90 ° -45 ° (inclined to the left)
- Saw blade Ø: 420 mm
- Suction nozzle Ø: 100 mm
- Weight: 120 kg
