Machining centre

Description

Article: Transfer machine
Manufacturer: Mikron
Type: Multistep XS
Yob: 2007
Number of modules: 4 (1 loading module, 3 process modules)
Number of spindles: 6
Rotational speed : 15.000 rpm
Control: Bosch Rexroth MTX
Coolant unit: Knoll VRF450/2100
Extraction: Elektrostat / LTA
3D tool path correction
5/6-axis transfórmation
Machine dimensions: 9.300 mm x 3.400 mm x 3.500 mm
Wight per processing module: 4,5 t
Wight per loading module: 2,5 t
Clamping force: 10 kN
Workpiece cange chip-to-chip time: 6s
Workpiece: Diameter: 140 mm, Length: 180 mm, Weight: 21 kg

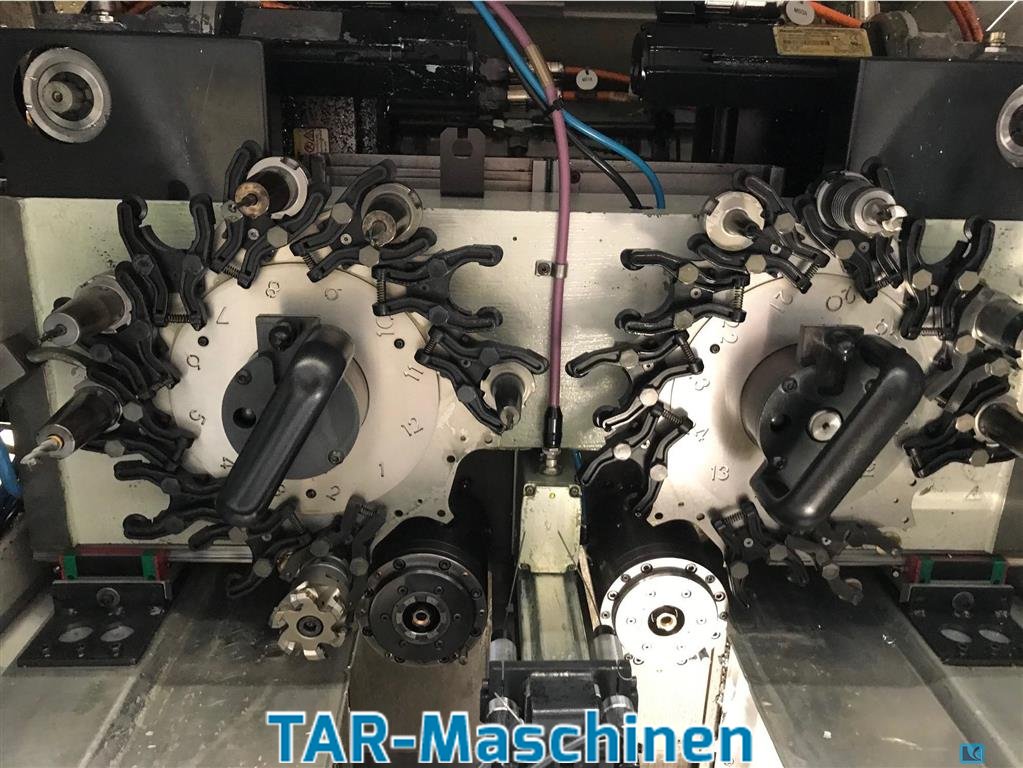

Tool changer:
Tools (2 discs with 12 positions) / processing module: 22
Weight of tool disc: 5 kg
Max. tool weight: 2,5 kg
Max. free tool length: 186 mm
Max. tool diameter: 63 mm
Max. tool diameter with free position: 105 mm
Shortest chip-to-chip time: </= 1 s
Max. weight of tools on disc: 15 kg
Positioning time per tool step: 250 ms
Travel: X = 572 mm, Y1/Y2 = 322 mm, Z = 265 mm
Speed: X = 40m/min, Y1/Y2 = 32m/min, Z = 25m/min
Working spindle: Tool mount: HSK 40-A, Outer diameter: 108 mm

Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com
