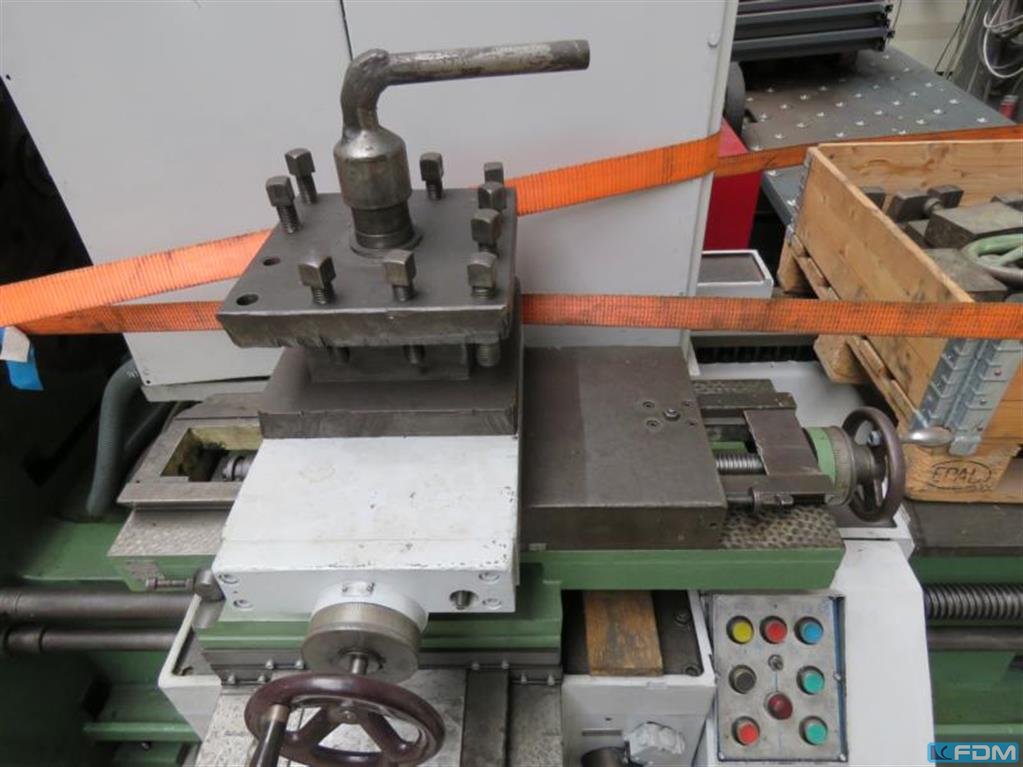

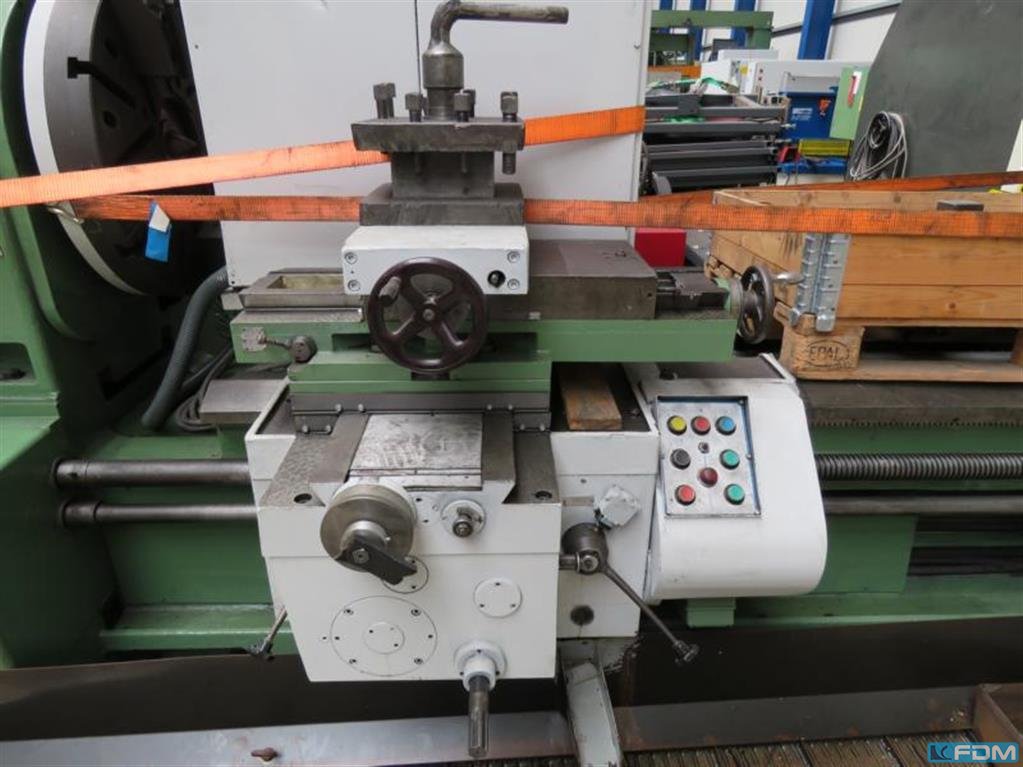

Center Lathe
GURUTZPE SUPER BT
- Stock number:
- 1125-5614
- Year / Condition:
- 1979
- Control unit:
- conventional
- Country of origin:
- Spain
- Freight basis:
- FCA - free Carrier
- Item location:
- D - 49779 Niederlangen
- Delivery time:
- immediately, ex stock
Picture / documents / videos
Technical specs
Details
- turning diameter over bed:
- 1000 mm
- turning diameter over slide rest:
- 660 mm
- turning length:
- 4000 mm
- turning dia. in gap:
- 1400 mm
- center height over bed:
- 500 mm
- centre distance:
- 3400 mm
- spindle passage:
- 110 mm
- turning speed range:
- 3 - 600 U/min
- feeds - longitudinal:
- 0,042 - 1,691 mm/U
- feeds - cross:
- 0,023 - 0,938 mm/U
- total power requirement:
- 34 kW
- weight of the machine ca.:
- 12 t
- dimensions of the machine ca.:
- 6,1 x 2,1 x 2,1 m
Description
chuck Ø 500 mm
face plate Ø 700 mm
tailstock

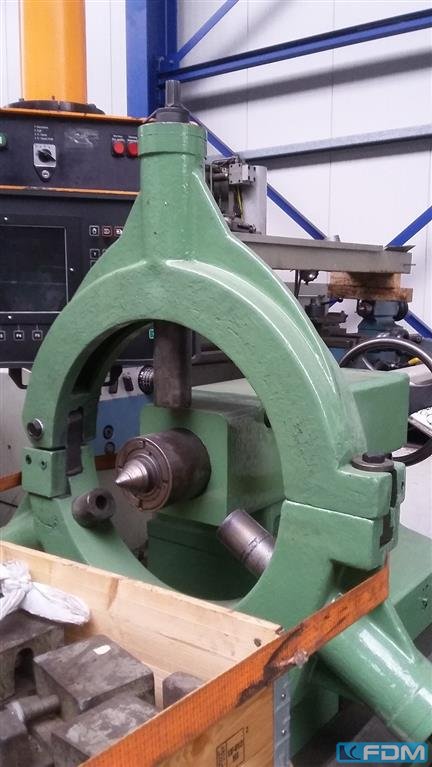

2 closed bezels Ø 550 mm and Ø 500 mm
one rotating bezel
