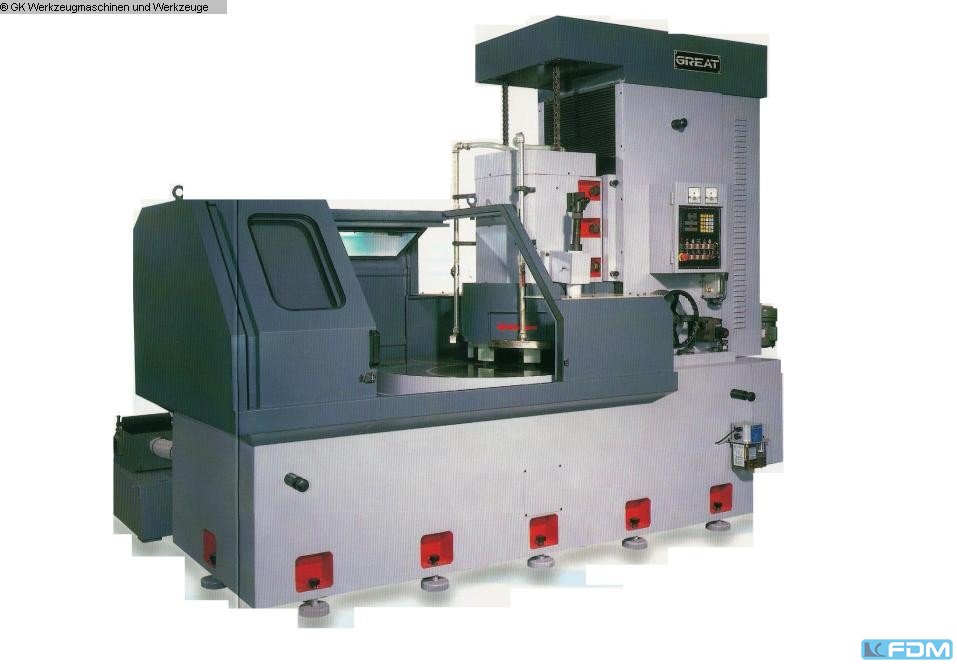

Rotary Table Grinding Machine - Vertical

Details

:

KSM 800 KSM 1000 KSM 1200

rotary table diameter:

800 mm1000 mm1200 mm

distance spindle center to table:

350 mm

dimensions of grinding wheel:

90x30x160x80x 8 pc. mm

grinding head - power requirement:

22 kW

grinding spindle speed:

850 (stepless) U/min

vertical feed on handwheel:

0,001/0,005/0,010  mm/Um

table load:

1 t

table rotation speed:

5-20 U/min

table movement - horizontal:

420 mm520 mm620 mm

weight of the machine ca.:

9 t9,5 t10,2 t

total power requirement:

27 kW

dimensions:

3.350 x 2.250 x 2.800 mm

Accerories

LCD Touch Screen:

with cycle support

electro magnet face plate



CE-certificate



technical documentation in German language



levelling elements



machine tools



hydraulic unit



grinding wheel extractor



grinding wheel dresser manual



fully enclosed



automatic cooling and lubrication system
