Facing Lathe

Details

:

FBN-1500 FBN-2000 FBN-2500 FBN-3000

faceplate diameter:

1600 mm

turning diameter:

1600 mm

turning length:

700 mm

spindle bore:

230 mm

spindle nose:

A2-15

spindle speeds:

L:10~50, M: 50~150, H: 150~400 1/min

spindle drive:

37 kW

travel -x axis:

900 mm920 mm 1020 mm

travel - z:

1500 mm

servo motor X-axis:

1FK7101, 4.3kw, 27 Nm

servo motor Z-axis:

1FT7105, 11.7kw, 65 Nm

rapid power traverse in X-and Z direction:

5 m/min

weight of the machine ca.:

15 t

dimensions of the machine ca.:

4950mm(mit Förderer: 6610mm) x 3100mm x 2750 mm

Accerories

CNC controller Siemens 828





automatic lubrication system



Machine semi-cover



frequency control main spindel engine



coolant system



MPG hand wheel



levelling elements





CE-design



CE-certificate





Metric, 400V 50Hz 3 Phase



LED work light



Description

Factory new, high-stability CNC head turning machine, make Kraft, type FBN series

- conventional or with CNC control Siemens / Fanuc / Fagor
- Optional with C-axis and additional extensive accessories
- Bed lengthwise or crosswise
- also available with tailstock


Send us your requirements for the machine and we adapt the machine to your needs!

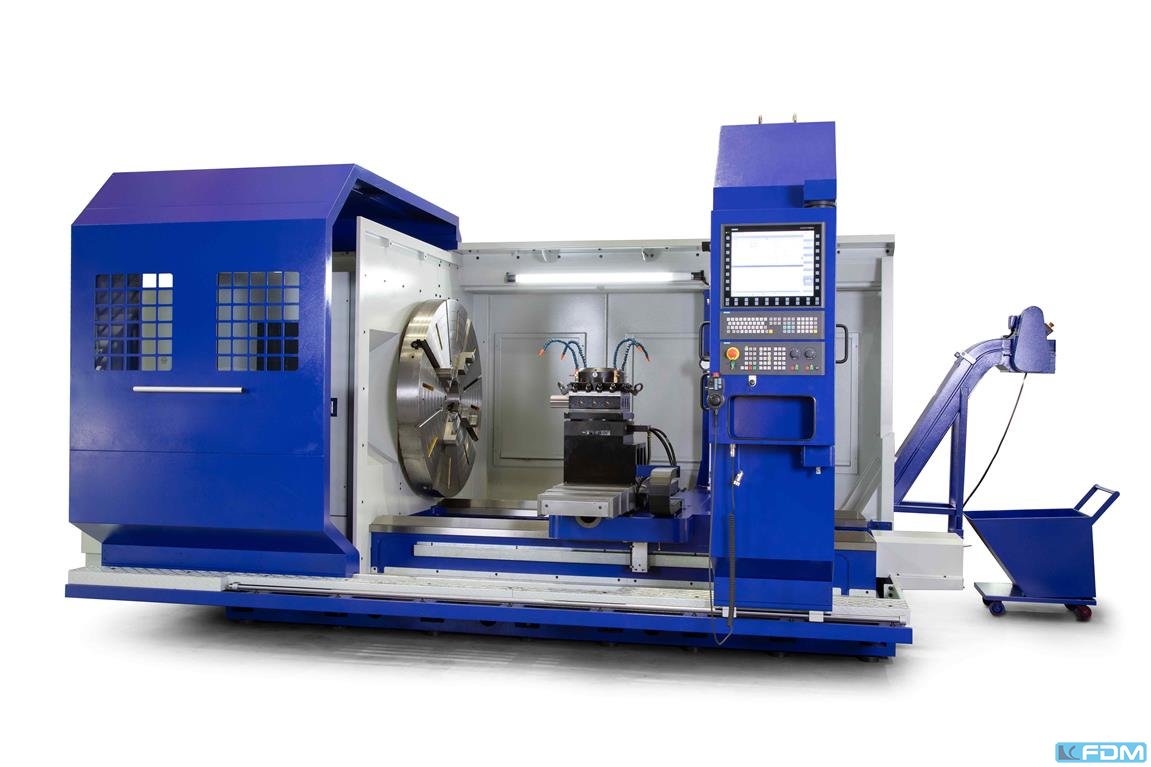

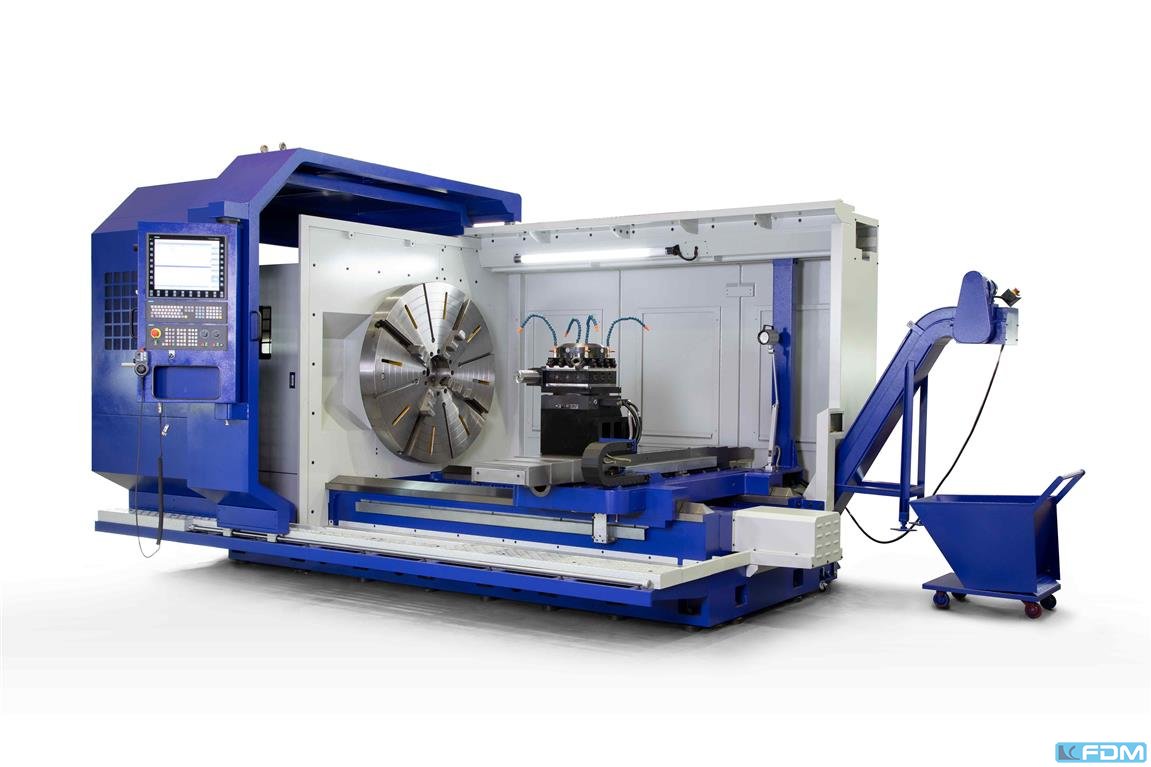

Fig. Shows FBN-80 (turning diameter 2000mm)

Benefit from the favorable leasing and hire-purchase conditions of ABC Leasing: Ask us about it! Of course, we also gladly organize for you the delivery free-of-charge including assembly / commissioning and ready for handover as well as instruction

c-axis
different chucks and faceplates
different spindle motor power
turret
linear scales
chip conveyor and trolley

CNC controls from
