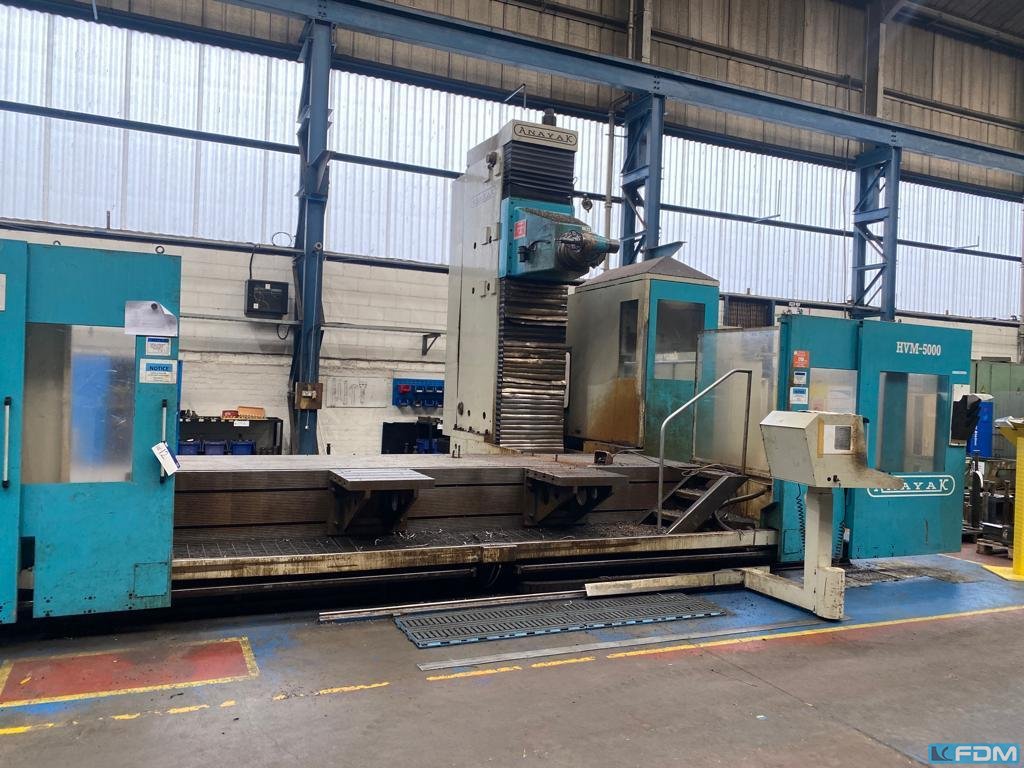

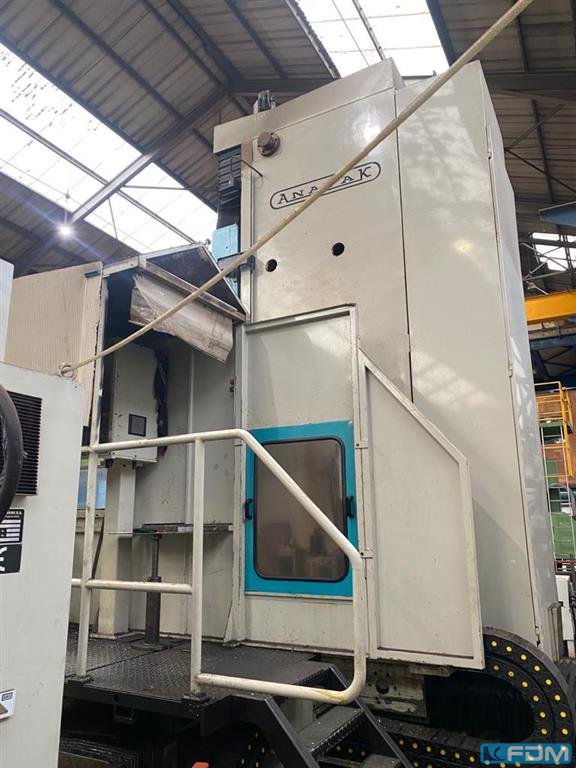

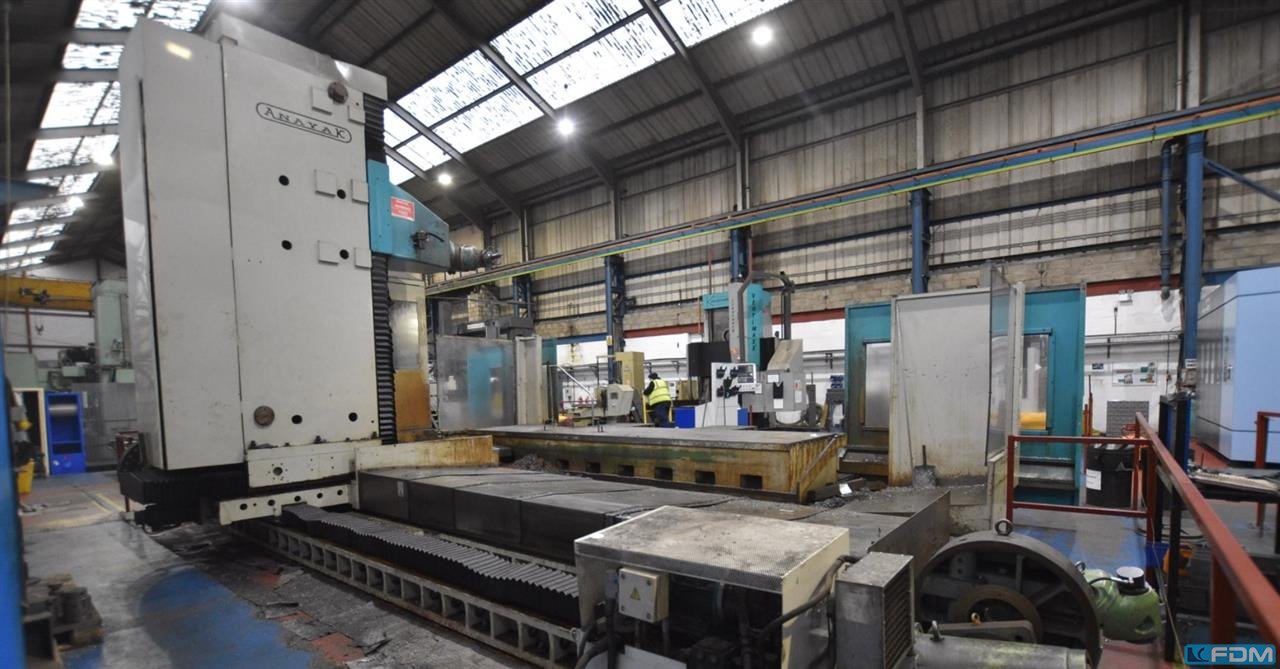

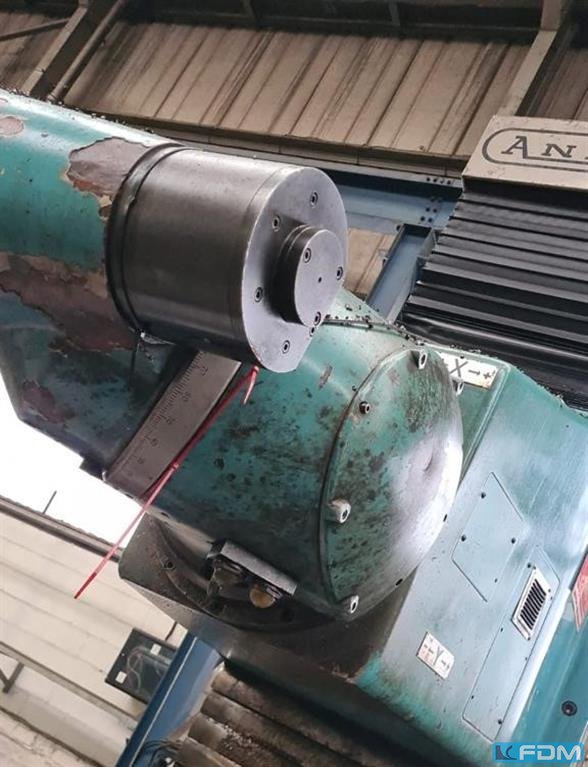

Travelling column milling machine

Details

x-travel:

2000 | 3000 | 4000 | 6000 | 8000  mm

y-travel:

600 mm

z-travel:

600 mm

distance spindle nose and table:

110-710 mm

table load:

2000/ 3000 / 4000 / 5000/ 5500  kg

spindle taper:

40 (50 opt.) BT/SK

spindle speeds:

60 - 8000 1/min

spindle drive:

11/15 kW

rapid speed:

16/24/24 m/min

feed range:

1 - 10000 mm/min

tool piece magazine with:

24 (30 opt.) Stk.

diameter of tools max.:

150 mm (24 Werkzeuge) \ 180 (30 Werkzeuge) mm

workpiece length:

300 mm

weight of the machine ca.:

22 t

weight of tools max.:

7 kg

positioning accuracy:

± 0.005 mm

repeatability:

± 0.005 mm

tool changing time:

2,5 sec

coolant capacity:

470/550/660/830/980 l

machine weight:

14000 / 16500 / 22000 / 24000 / 26000  kg

Accerories

ATC:

24 pos fach

CNC controller:

Heidenhain 620

Automatically power off



automatic lubrication system



rigid tapping



tools



chip conveyor - auger:

auf der Rückseite des Tisches

leveling elements



CE-design



Machine semi-cover:

oben offen

complete cooling system



working area light



alarm stack light



technical documentation in German language



electric 400V, 50 Hz, 3 phases



Description

Traveling Column 5 Axis Machining Center

ATC


chip conveyor and trolley


linear scales
CNC controls from
tool measuring system
