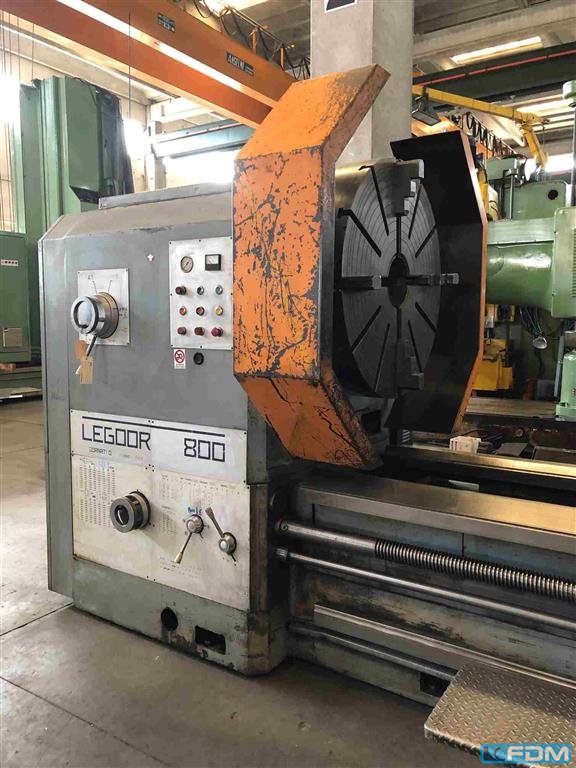

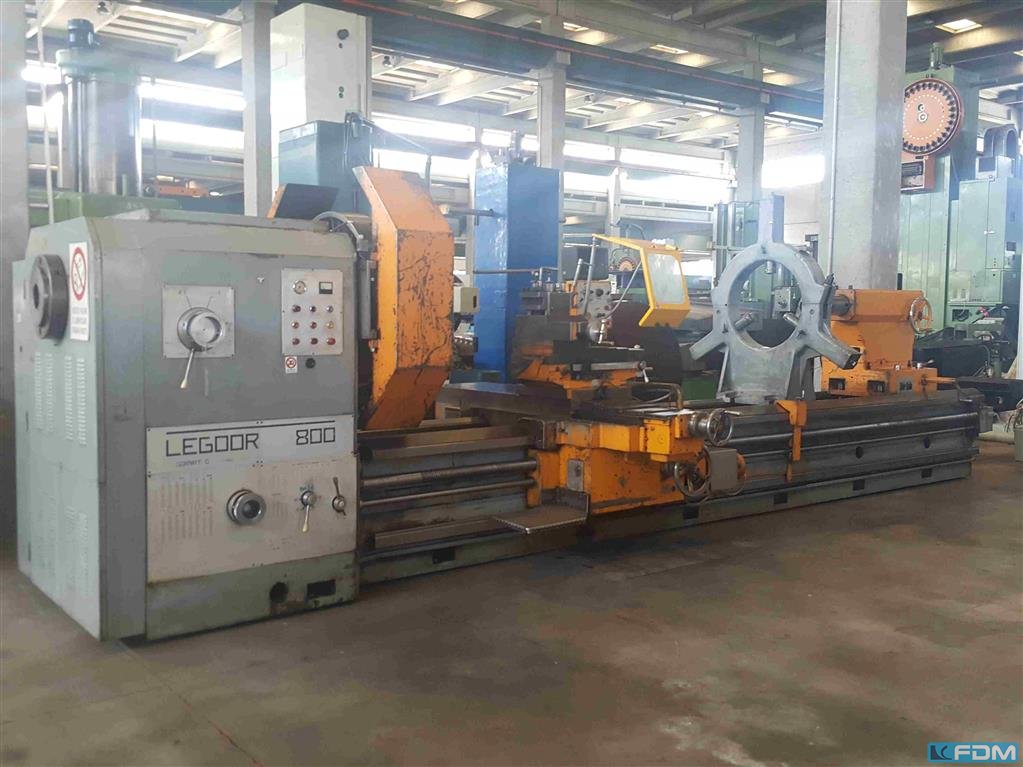

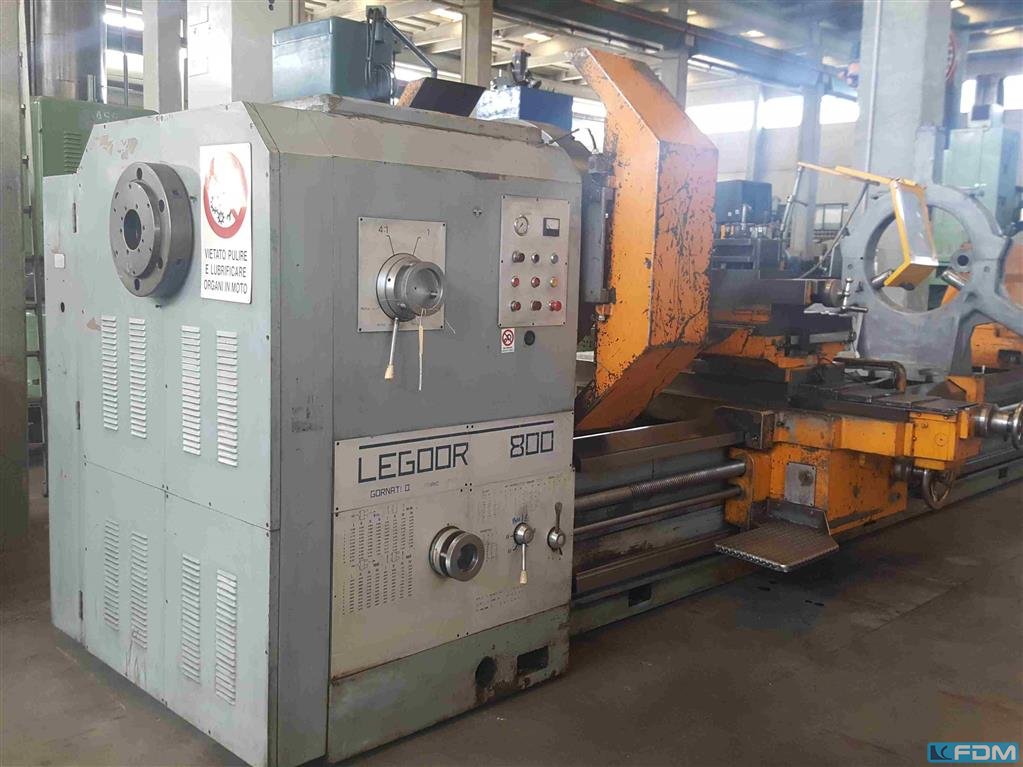

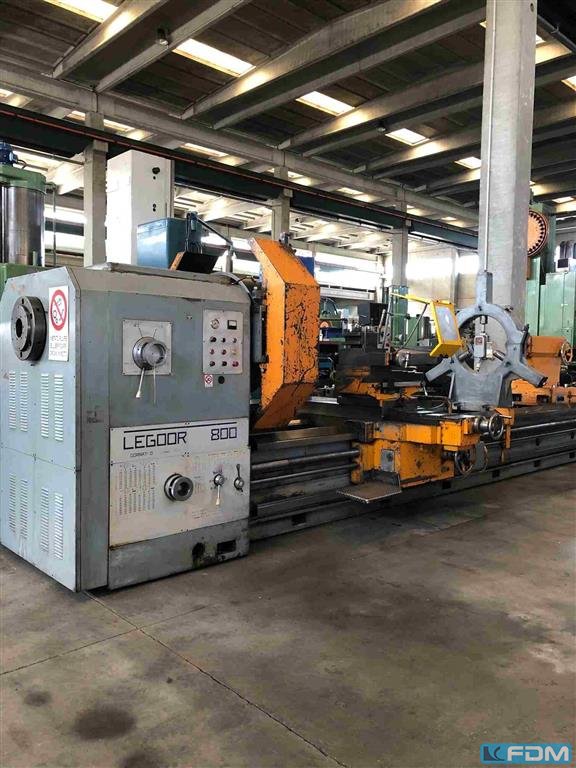

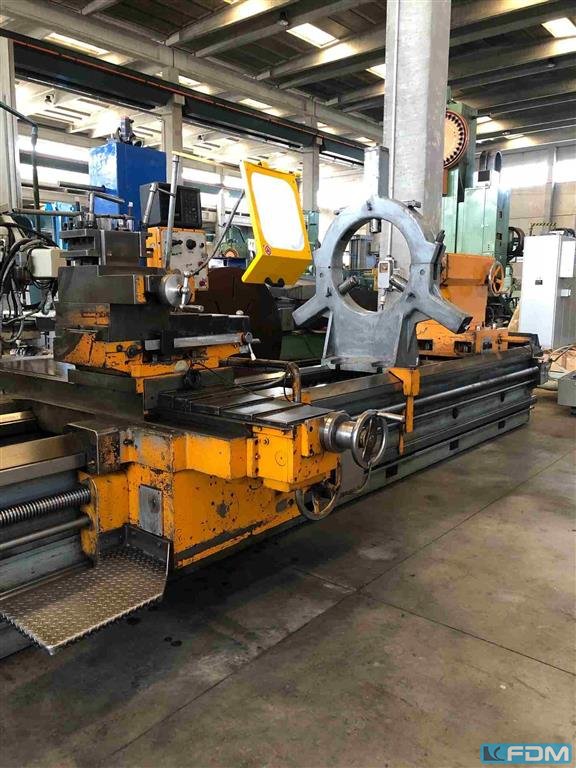

Heavy Duty Lathe GORNATI LEGOOR 800x5000 - GK Werkzeugmaschinen GmbH , Stockstadt

Metal ProcessingLathesHeavy Duty Lathe

Picture / documents / videos

Technical specs

Details

turning diameter over bed:: 1630 mm
turning diameter over slide rest:: 1190 mm
turning length:: 5000 mm
centre height:: 800 mm
swing in gap:: 2100 mm
bed width:: 1000 mm
max. workpiece weight:: 12000 (zw. Spitzen) kg
number of spindle speeds:: 16 4 - 242 U/min
spindle bore:: 120 mm
tailstock quill diameter:: 180 mm
tailstock quill stroke:: 350 mm
Weight approx.:: 22 t
total power requirement:: ca. 25 kw

Description

Height of centres: 1350 mm
Distance between centres: 5000 mm
Swing over cross slide: 2600 mm
Spindle power: 30 HP
Spindle speed: 0,7 - 70 rpm
Longitudinal swift
Control on the carriage
Chuck: diam. 2050 mm
