Grinding machines - Optical Profile Grinding Machine - ABA Powerline 1006 CNC

Optical Profile Grinding Machine

ABA Powerline 1006 CNC

Stock number:
1118-1599
Year / Condition:
2001
Control unit:

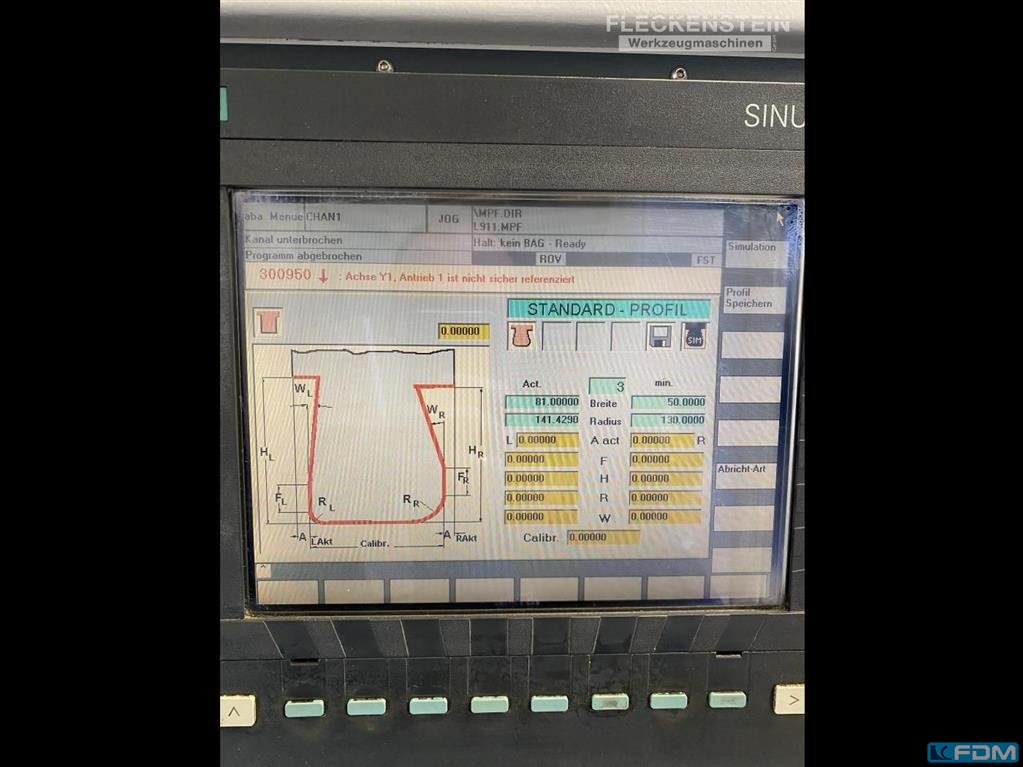

CNC (SINUMERIK 840 D)
Country of origin:
Germany
Freight basis:
EXW
Item location:
ex stock
Delivery time:
immediatly available

Picture / documents / videos

Technical specs

Details

grinding length:
1.000 mm
grinding width:
600 mm
workpiece height:
400 mm
cross travel (Z-axis) :
540 mm
Distance table surface – grinding spindle centre:
600 max  mm
Vertical travel (Y axis):
500 mm
Max. working height on new grinding wheel:
400 mm
Electro permanent magnetic plate:
800 x 500  mm
pole pitch :
18 mm
clamping force adjustable in 8 levels:
8 stufen
table speeds:
2 - 35.000  mm/min
Automatic vertical feed (Y axis):
:
min. feed size :
0,001 mm
measuring system:
Glasmaßstab
Max. distance spindle centre - table:
700 mm
Grinding head vertical:
550 mm
Cross feed (Z axis):
min. feed size :
0,001 mm
measuring system:
Glasmaßstab
column cross max.:
600 mm
Cross movement, continuous:
5 – 5.000 mm/min
Cross movement, intermittent:
1 - 95  mm/Impuls
grinding spindle head::
motor – execution :
Drehstrom – Motor regelbar
power capacity:
18, 5 kW bei 1.5000 min--1
grinding spindle speed variable :
1.000 – 2.600 min-1
spindle bearing:
axial und radial spielfrei
Spindle Ø in front bearing:
80 mm
Grinding wheel dimensiones max.:
420 x 100 x 127  mm
grinding wheel peripheral speed max.:
35 m/s
Data for electrical installation:
:
voltage:
3~ 400/230 V V
frequency:
50 Hz
connected load:
50 kVA
Backup fuse ca.:
70 A
rated current:
100
weight of the machine ca.:
6 t
dimensions of the machine ca.:
4.000 x 3.000 x 2.900 mm

Description

Equipment and accessories
- Linear measuring systems in Y- and Z-axis
- All linear axes with digital servo motors and ball screw drive
- Belt filter system with paper belt filter, tank capacity 640 l, coolant pump 200 l/min/4 bar
- Manual coolant nozzles - adjustable
- Automatic working chamber door pneumatically controlled
- Electro-permanent magnetic plate 800 x 500 mm, pendulum pole pitch 18 mm
- Automatic grinding wheel balancing device Fa. MPM
- Full enclosure of the working area in stainless steel partial execution with LED working area lighting
- Manually operated door, safety interlock in automatic mode
- Portable electronic handwheel in automatic and manual mode for all axes
- Three-color signal light
- Electrical equipment 400V/50Hz
- Switch cabinet cooling unit
- Machine feet
- Painting RAL 9002 (grey white), RAL 5010 (gentian blue)
- Rinsing gun with hose and holder in the operating area
- Approx. 5 pcs. grinding wheel flanges

*** Machine prepared for grinding mist suction ***
