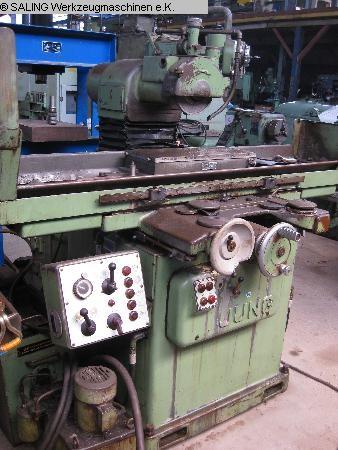

Surface Grinding Machine

Details

grinding length:

600 mm

grinding width:

300 mm

table-size:

720 x 200 mm

magnetic plate size:

500 x 200 mm

adjustment range - vertical:

300 mm

max. grinding wheel diameter:

200 mm

table adjustment - longitudinal, steplesss adj.:

bis 15 m/min

autom. cross feed:

0,3 - 1,2 mm

revolutions of grinding spindle:

2800 U/min

spindle motor:

380 50 2 V Hz kW

weight of the machine ca.:

1300 kg

dimensions of the machine ca.:

1500 x 2000 x 1700 m

Accerories

horizontal grinding spindle





grinding dust-suction with water filter



hydraulic unit



mounted panel cabinet
