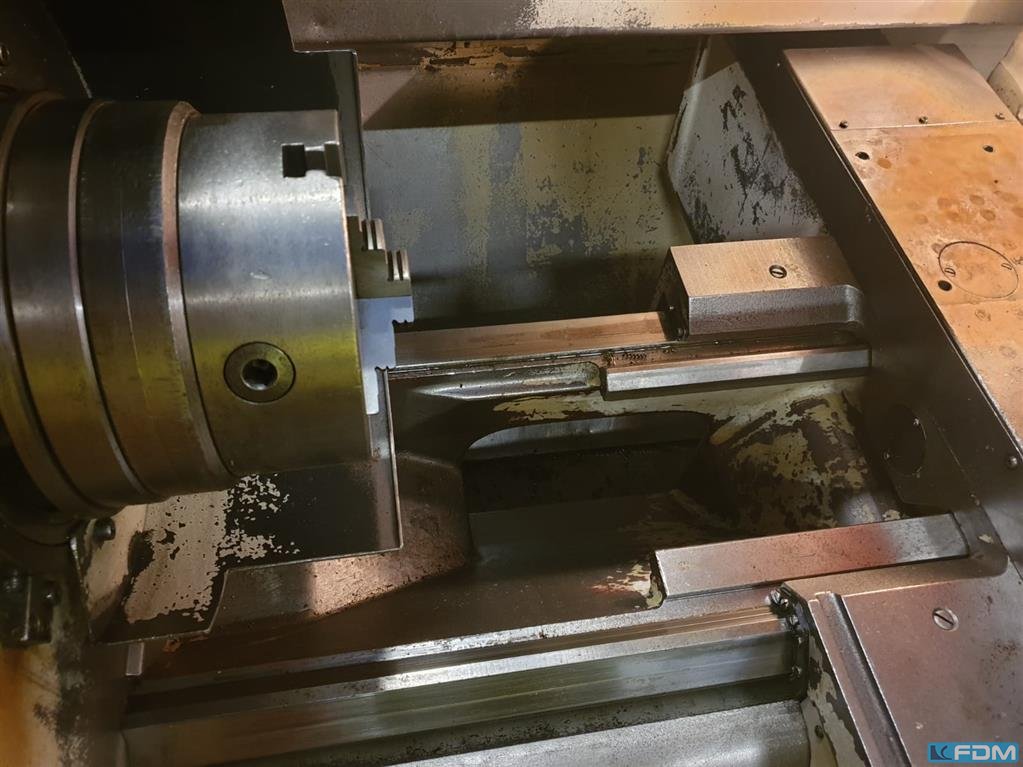

Lathe - cycle controled
GILDEMEISTER N.E.F. Plus 500
- Stock number:
- 1106-DR274
- Year / Condition:
- 1997 / gebraucht
- Control unit:
- CNC (MANUAL PLUS Grundig)
- Country of origin:
- Germany
- Freight basis:
- ex Store
- Item location:
- ex Store Jena
- Delivery time:
- immediately
Picture / documents / videos
Technical specs
Details
- turning diameter:
- 500 mm
- turning length:
- 1000 mm
- control:
- MANUAL PLUS Grundig
- total power requirement:
- 24 kVA
- weight of the machine ca.:
- 2650 kg
- dimensions of the machine ca.:
- 2500 x 1750 x 1850 mm
- swing diameter over face slide:
- 290 mm
- chuck:
- Ø max. 260 mm
- cross movement:
- 260 mm
- spindle head:
- DIN 55027 Größe 8
- spindle bore diameter:
- 70 mm
- rapid travel - longitudinal/face:
- 8 /6 m/min
- spindle speeds::
- 8 - 2800
- tailstock travel:
- 180 mm
- tailstock quill taper MT:
- 5
Additional information
- Documents
