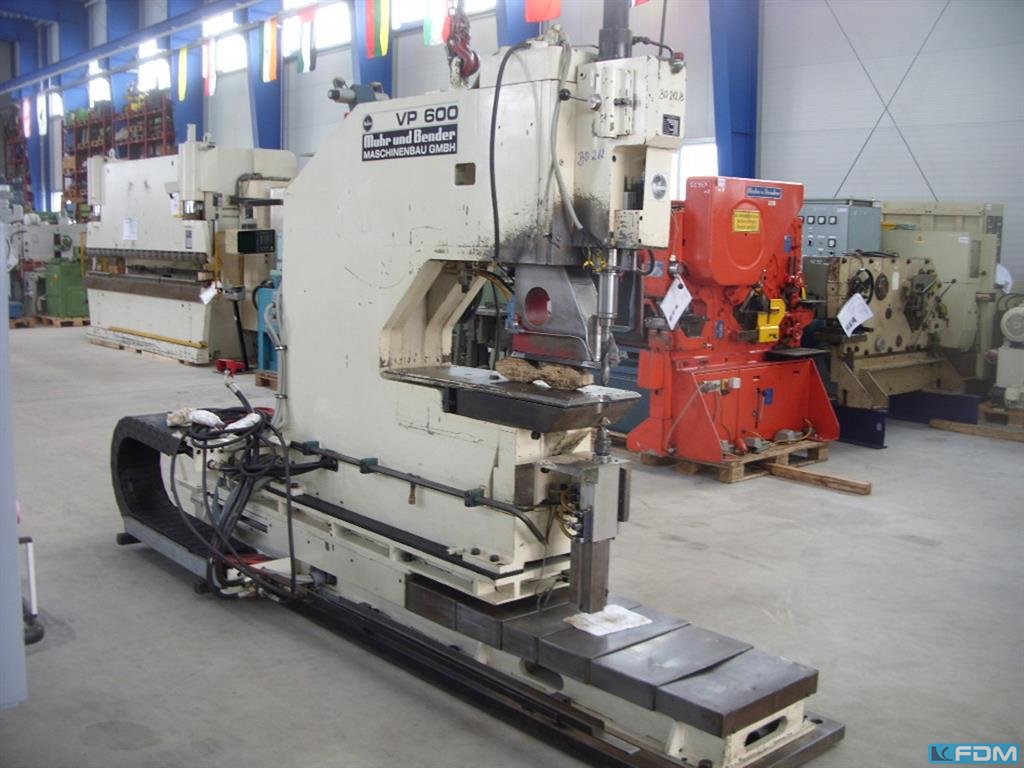

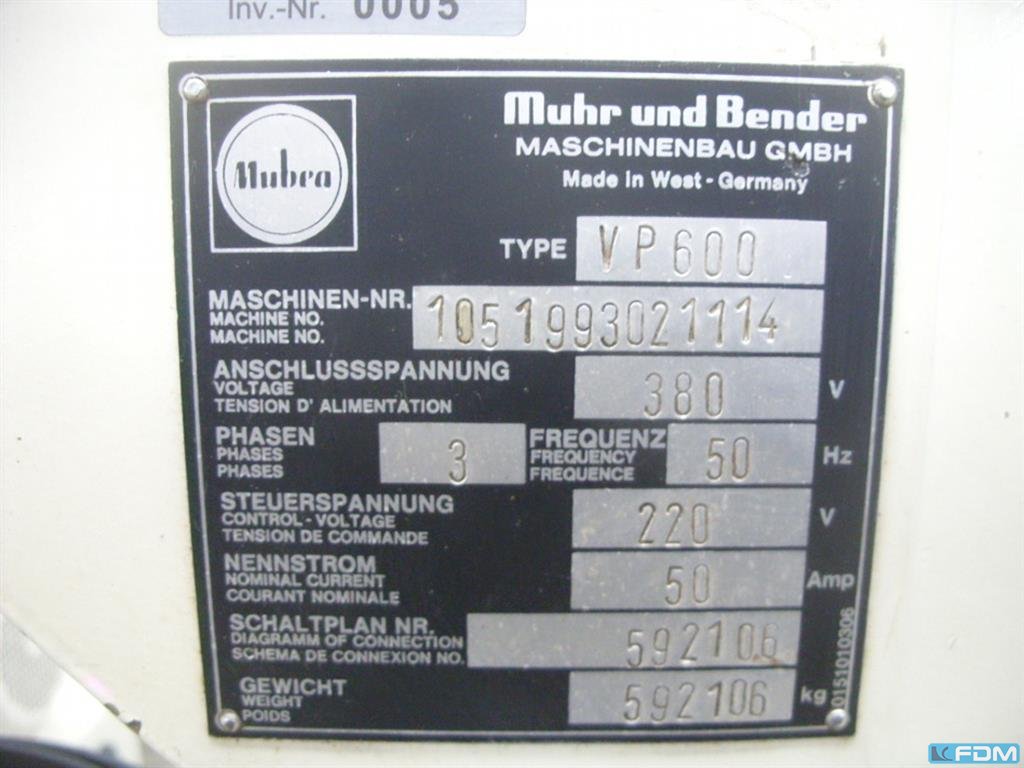

Plate drilling

Details

workpiece thickness max.:

80 mm

workpiece thickness min.:

5 mm

plate size without being adjusted:

2000x1000 mm

size of plate min.:

100x100 mm

control:

CNC Mubea Matic100

hole diameter:

min/max:10/40 mm

workpiece weight:

750 kg

deburring device max.:

d=40 mm

traversing speed:

80 m/min

work height max.:

1050 mm

positioning accuracy:

+/- 0,5 mm

opening of gripping pliers min/max.:

Typ I: 5/45 mm

opening of gripping pliers min/max.:

Typ II: 45/85 mm

feed length:

max. 150 mm

rapid traverse::

8 m/min

spindle turning speed range:

112-180-224-280-355-560 U/min

work table::

L:2500;B:950 mm

arm gripping device:

4 Stück

tool taper:

Kegel DIN 6327

longitudinal travel:

x=2800 mm

cross travel:

y=1000 mm

bore spindle stroke:

max. 150 mm

total power requirement:

25,0 kW

weight of the machine ca.:

5,5 t

space requirements approx. LxWxH:

5,0x5,5x2,7 m

Additional information

Documents

Description

plate size with beeing adjusted also 1000x4000 mm possible

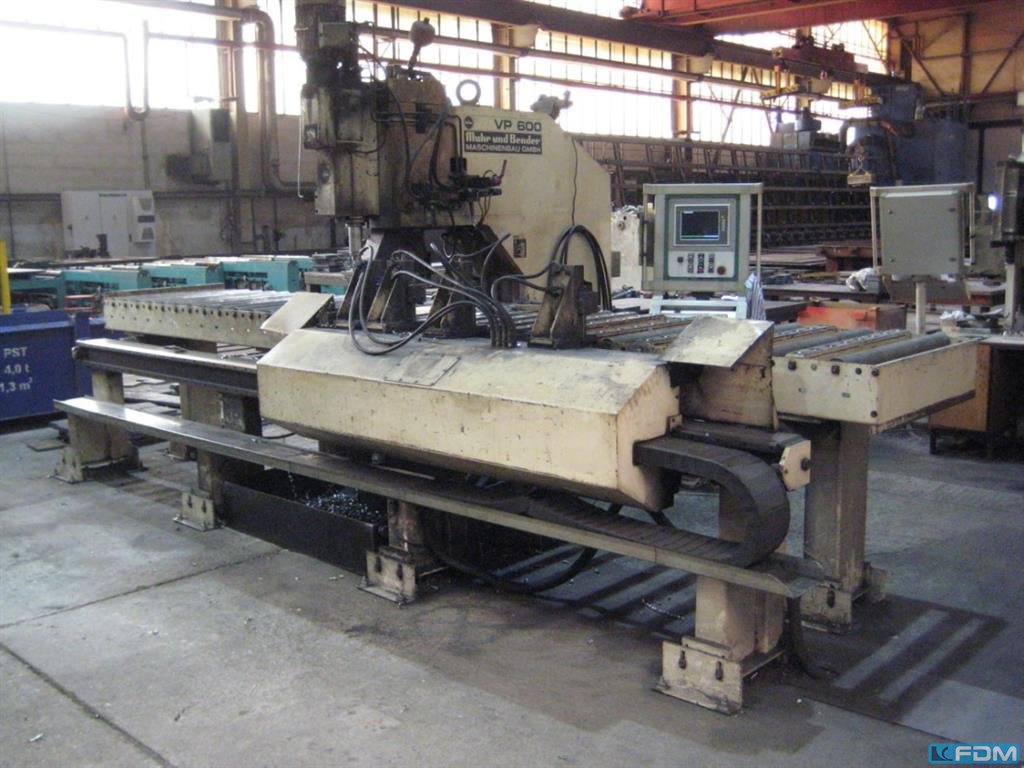

with roller conveyor 2x1000mm

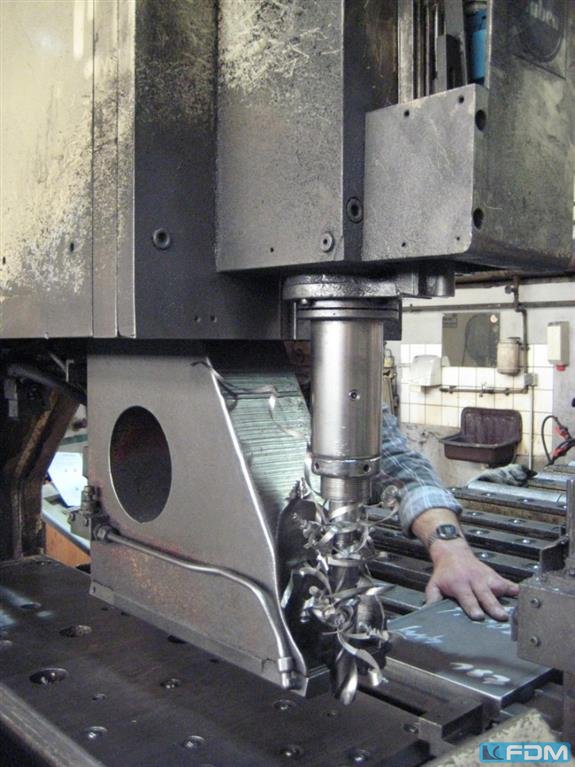

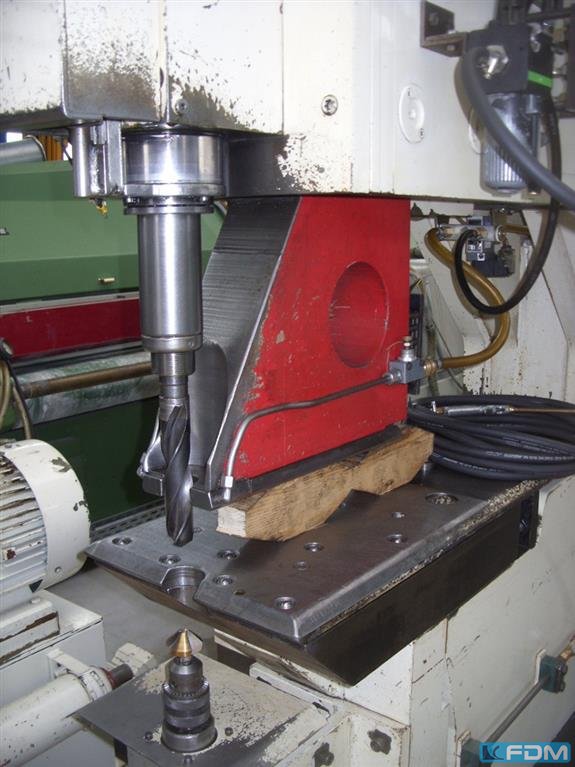

material supporting table complete with supporting elements, guidance rail for guidance and transportation of the positioning wagons , cooling of the drill via air pressure
control for 2 axis positioning x-axis 80m/min and y-axis 30m/min,
memory capacity approx. 10.000 programs

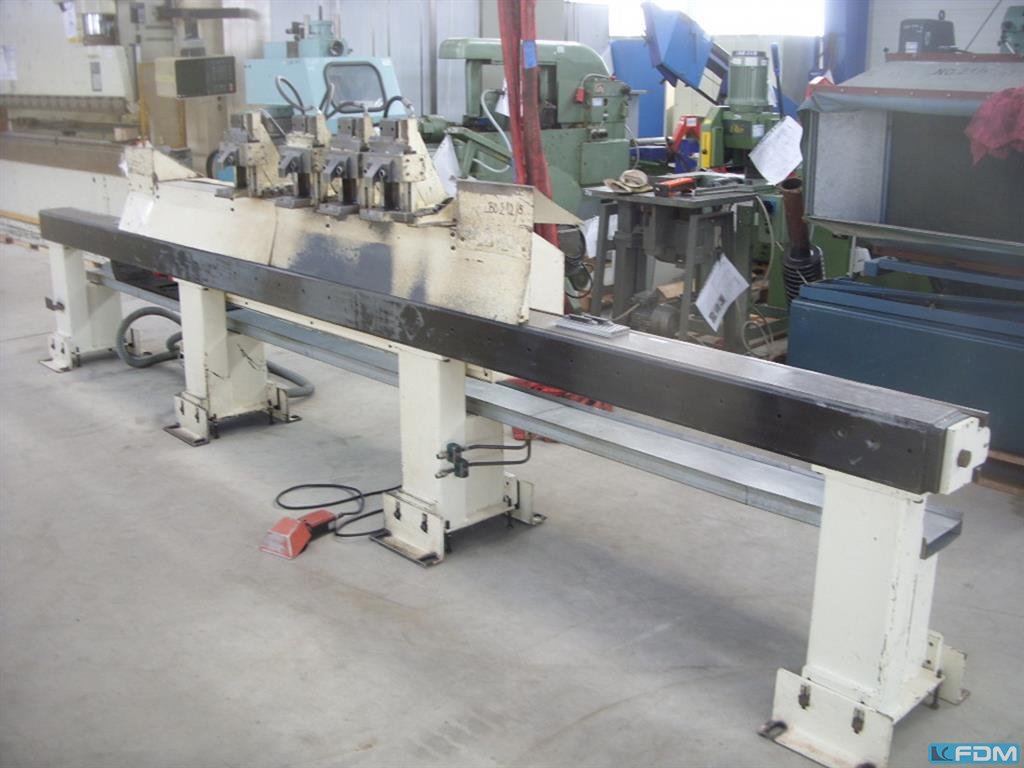

position wagon/carriage, 2 material support table, material standard gauge railway,

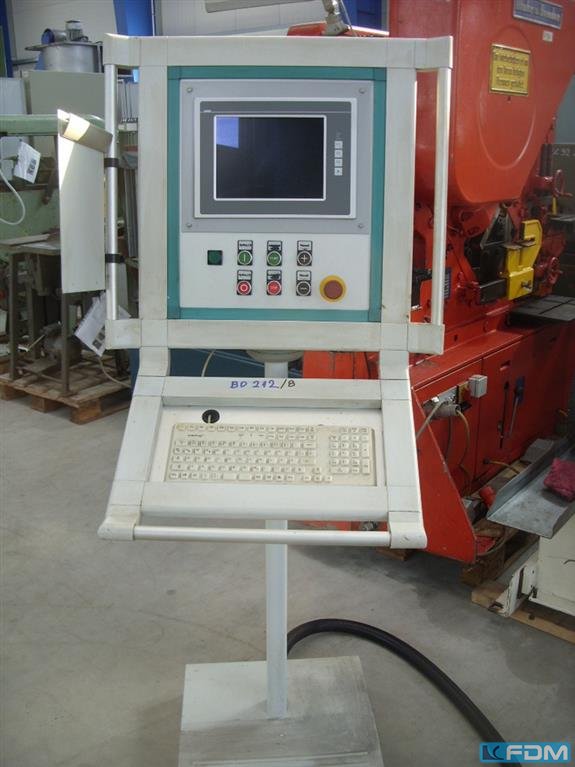

electric cabinet, control panel, hydr. aggregate
accessories:
2 pcs. drill sleeve, roller conveyor 1800x1000mm
