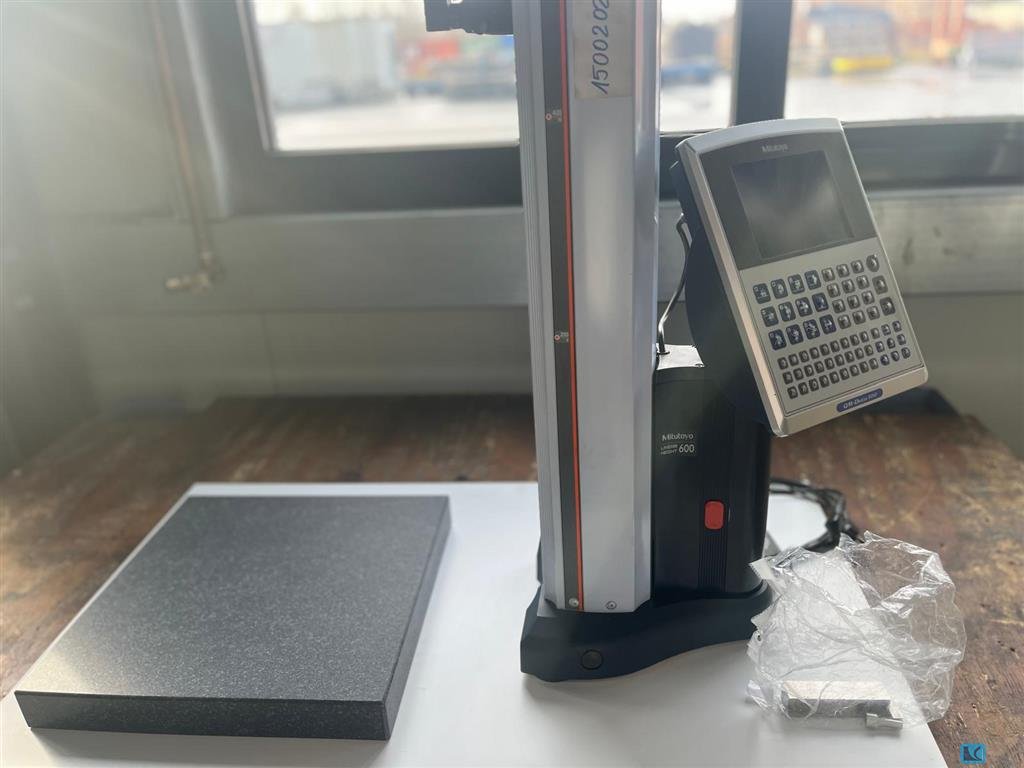

Height Measuring Micrometer
MITUTOYO LH 600
- Stock number:
- 1087-1500202
- Year / Condition:
- -
- Control unit:
- other (LH 600 C)
- Country of origin:
- Japan
- Freight basis:
- EXW, free on truck unpacked
- Item location:
- Leipzig 5
- Delivery time:
- immediately
Picture / documents / videos
Technical specs
Details
- measuring range Y-axis:
- Höhe: 0 - 600 mm
- interface:
- RS232
- weight:
- 24 kg
- power consumption:
- 43 Watt
- Floor Space WxD:
- 0,237 x 0,448 x H: 1,013 m
Description
High-precision height measuring device Linear Heigth with a glass scale for high accuracy.
With LCD display and keypad.
This is a table-top device.
The main unit can be easily moved in a semi-floating position on a measuring plate using a push-button (float switch).
The carriage can perform both automatic and manual movements.
incl. eccentric probe at the tip with a ball Ø 4.5 mm
Data output RS-232C interface
the measuring carriage is guided by roller bearings, motor-driven and/or manual
Measuring system - glass measuring system (incident light method)
Compressed air supply via built-in compressor
Operation via control panel (with graphic display)
