tool presetter
ZOLLER V 420
- Stock number:
- 1087-1500080

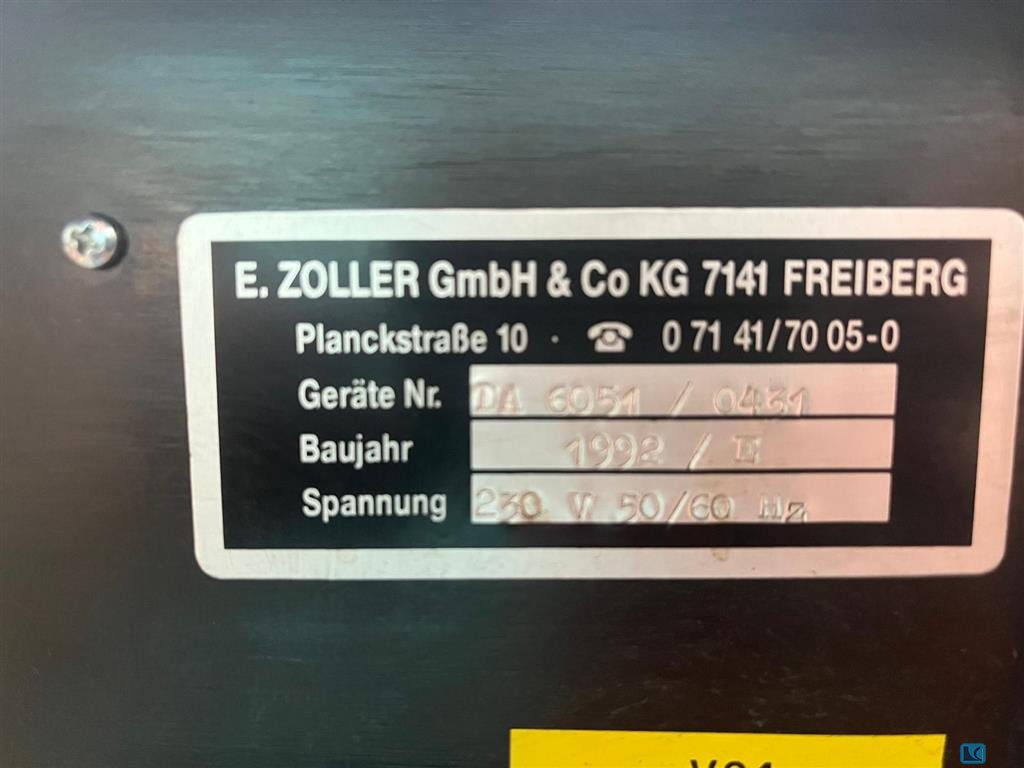

- Year / Condition:
- 1992
- Control unit:
- other (Heidenhain LS 403)
- Country of origin:
- Germany
- Freight basis:
- EXW, free on truck unpacked
- Item location:
- Leipzig 1
- Delivery time:
- by arrangement
Picture / documents / videos
Technical specs
Details
- x-axis:
- 150 mm
- z-axis:
- 400 mm
- diameter:
- 420 mm
- air pressure - required:
- 6 bar
- tool diameter:
- 420 mm
- total power requirement:
- 0,5 kW
- weight of the machine ca.:
- 290 Kg
- space requirement approx.::
- 2,0 x 1,5 x 2,0 m
Description
Tool Holders Included:
SK50 Tool Holders
SK40 Tool Holders
VDI50 Tool Holders
The ZOLLER V420 is a high-precision tool presetting and measuring machine designed for the accurate measurement and presetting of cutting tools used on CNC milling machines, machining centers, and CNC lathes.
By measuring tools outside the machine, setup times are significantly reduced, machine productivity is increased, and machining accuracy is improved.
Main Applications
·Tool length measurement
·Tool diameter measurement
·Radius measurement
·Cutting edge position measurement
·Tool angle measurement
·Runout inspection
·Measurement of milling, drilling, and turning tools
Advantages
·Reduced machine downtime
·Faster setup procedures
·Increased productivity
·Improved machining accuracy
·Reduced scrap and setup errors
·Reliable transfer of tool data to CNC machines
Typical Features
·High-precision optical measuring system
·Digital measurement display
·Tool holder interface for various systems (SK, BT, HSK, etc.)
·Data transfer to CNC controls
·Tool data management
·High repeatability and accuracy
Typical Areas of Use
·Tool rooms
·CNC machining centers
·Manufacturing facilities
·Precision engineering
·Quality control departments
