Laser Cutting Machine
BYSTRONIC BYAutonom 3015 - 6000W
- Stock number:
- 1087-1200734
- Year / Condition:
- 2012
- Control unit:
- CNC (ByVision)
- Country of origin:
- Switzerland
- Freight basis:
- EXW, free on truck unpacked
- Item location:
- Leipzig 5
- Delivery time:
- immediately
Picture / documents / videos
Technical specs
Details
- y-travel:
- 1500 mm
- distance between columns:
- 2300 (Brücke) mm
- Beam Hour:
- ca. 22000 h
- laser capacity:
- 6000 W
- control:
- CNC P 8109-10-600D
- table length:
- 4500 / Auflage: mm
- Table width:
- 2300 mm
- operating pressure:
- 120hPa
- Waterpressure - requiered:
- max. 6,0 bar
- voltage:
- 400 / 50 V / Hz
- dimension laser device LxWxH:
- ca. L: 3,0 x B: 1,5 m
- dimension filtering system LxWxH:
- ca. 1,4 x 2,0 x 2,2 m
- dimension coolant device LxWxH:
- ca. 2,55 x 1,0 x 1,9 m

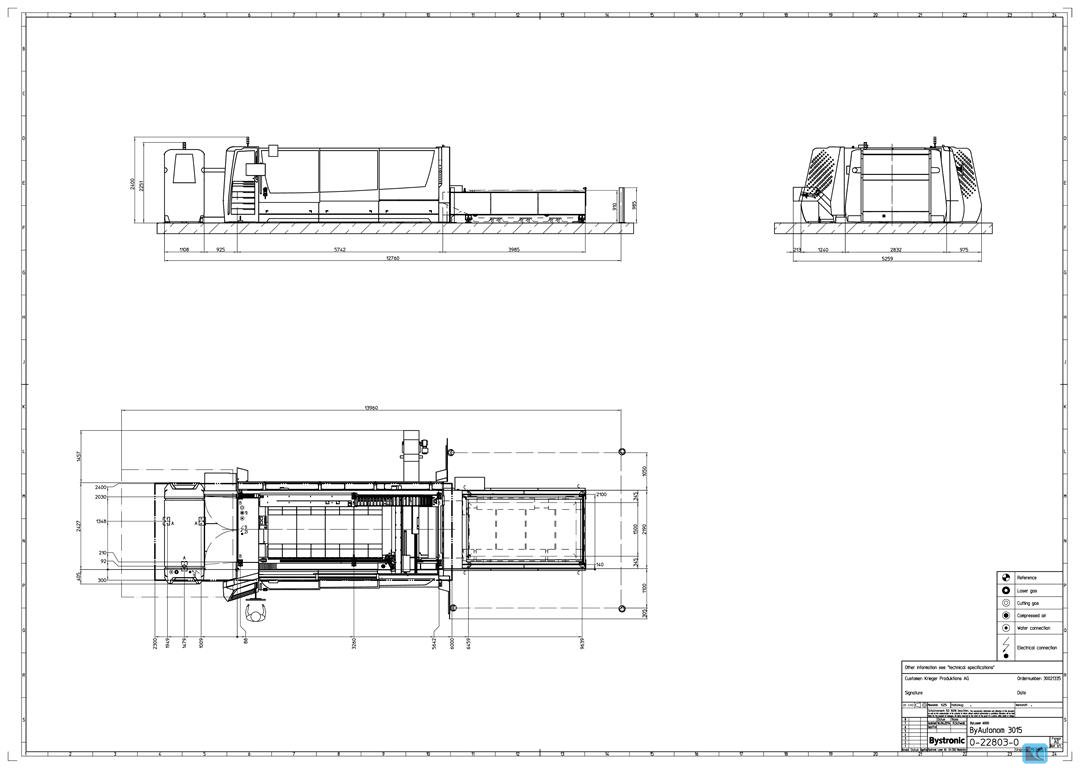

- space requirements of the machine approx.:
- gesamt: ca. 12,8 x 5,3 x 4,3 m
Description
Flatbed laser cutting machine
Application: ind. Cutting and engraving
Laser medium Co²; N²; compressed air
Sheet dimensions/format 3000x 1500mm
Cutting thickness: e.g. steel X5CrNi18-10 = 1 - 25mm / CNS 25mm / aluminum: 1 - 15mm (Tabb. available)
Resonator - laser source ByLaser 6000W, wavelength 10.600mm, beamØ 20mm, circular polisariation
Shuttle table LxWxH: 4500 x 2300 x 1000mm, load capacity 900kg, table support surface = 3200 x 2000mm
Rf cooling type WKL 560, refrigerant R 407C, cooling capacity 65kW, high pressure 27bar, pump 220 l/min, fan
Dedusting system, Donaldson type DFPRO6 (size approx. 1.4 x 2.0 x 2.2m)
Cross conveyor by Kabelschlepp type SRF 040 (size LxW.H: approx. 3630 x 705 x 1000mm)
Light barrier Sick type M 4000
Cutting bridge: Y-path 3000mm, stand width 2300mm, cutting carriage size LxWxH: 400 x 300 x 650mm
Operating terminal with complete cabinet combination and manual control unit
Cut Control
