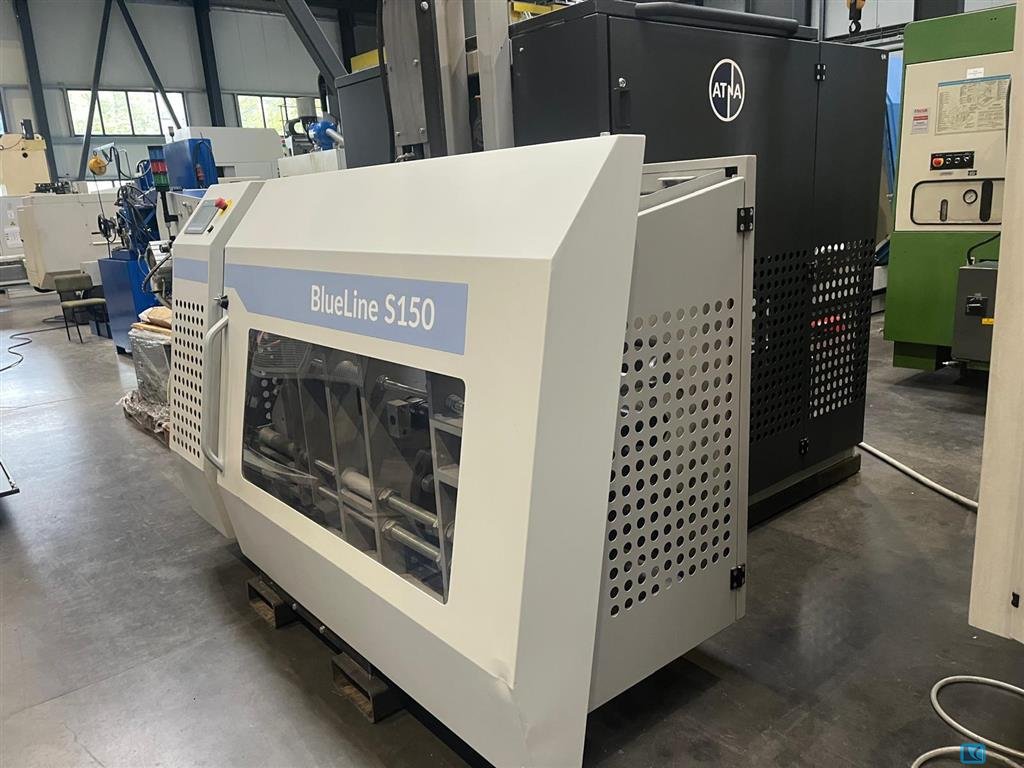

Hydraulic briquetting press
ATNA Industrial Solutions GmbH Blueline S150
- Stock number:
- 1087-1200219
- Year / Condition:
- 2021
- Control unit:
- conventional
- Country of origin:
- Germany
- Freight basis:
- EXW, free on truck unpacked
- Item location:
- Leipzig 5
- Delivery time:
- by arrangement
Picture / documents / videos
Technical specs
Details
- voltage:
- 400/50 V/Hz
- air-pressure connection:
- - bar
- control:
- -
- capacity:
- 150 kg/h
- protection class:
- IP 20
- temperature range:
- 0 - 40 °C
- sound level:
- <80 dB(A)
- weight of the machine approx.:
- 3,9 t
- dimensions of machine:
- 2,9 x 2,1 x 2,3 m
Description
The briquetting press is designed to compress metal chips and metal dust into compact briquettes in a three-stage process consisting of:
·Pre-compaction
·Pre-pressing
·Main pressing
Maximum pressing pressure: 700 MPa
Suitable for processing metal residues with particle sizes from 20 to 100 mm, such as:
·Aluminum
·Copper
·Stainless steel
·Other metallic materials
Equipment
·Briquetting press with sliding door
·Access ramp to the filling hopper
·Automatic briquette discharge system
Dimensions
·Length: 2.90 m
·Width: 4.45 m
