Grinding machines - Center Grinding Machine - WMW Suhl SIX 160x1000L

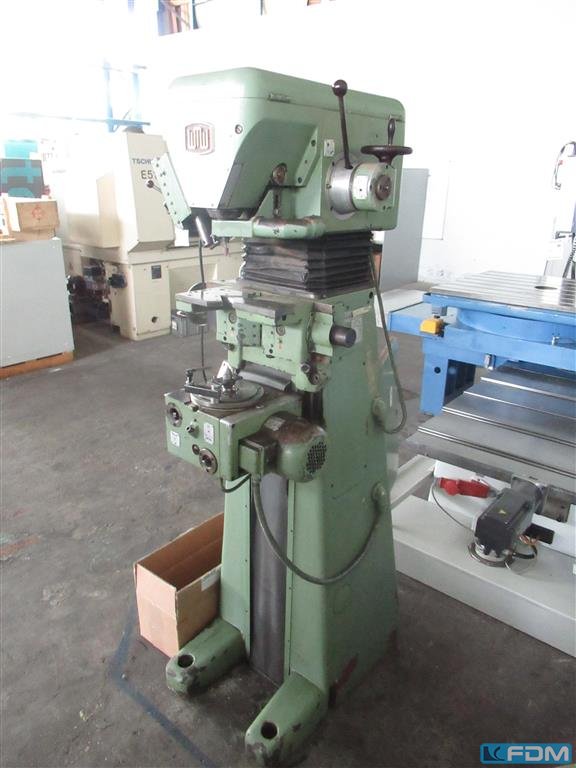

Center Grinding Machine

WMW Suhl SIX 160x1000L

Stock number:
1087-0800314
Year / Condition:
1964
Control unit:
conventional
Country of origin:
Germany
Freight basis:
EXW, free on truck unpacked
Item location:
Leipzig 1
Delivery time:
immediately

Picture / documents / videos

Technical specs

Details

shaft diameter:
max. 120 mm
work piece - max.:
800 mm
height of profile:
Tiefe: max. 90 mm
grinding spindle speed:
nicht bekannt U/min
Table dimensions:
Ø 150 mm
voltage:
380 V
total power requirement:
1,1 kW
weight of the machine ca.:
0,675 t
dimension machine approx.LxWxH:
0,75 x 0,70 x 2,0 m

Description

Application: vertical internal cylindrical grinding of shafts face, and center grinding with shaft grinder.
Spindle head technical details:
-equipment shank grinder Ø 13mm 60°; clamping element Ø 6mm shank clamping head.
-travel=vertical 950mm by handwheel and transversal 80mm by crank handle
-abrasive device with diamond, adjustment crosswise= 80mm.

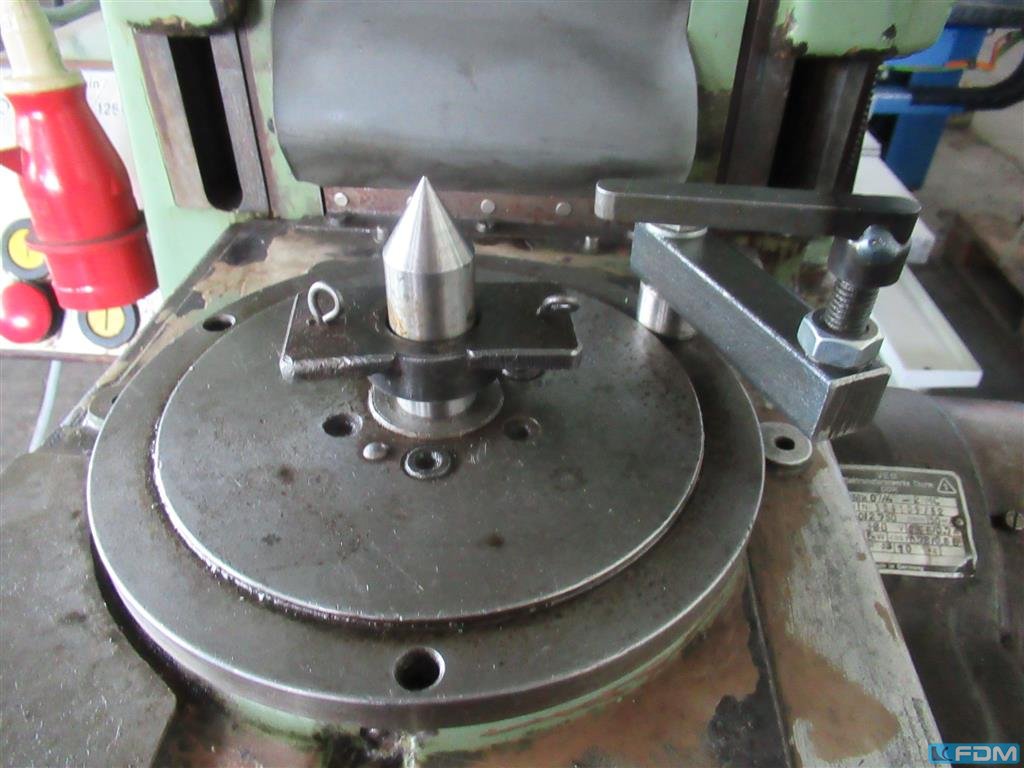

Table other specifications:
-with fixed tip holder 60°.
-speed 63 / 125 rpm.
-adjustment vertical 600mm, in height 1.100mm, operation manual.

centering block:
-prismatic guide

accessories:
-fixed tip L=180mm
-fixed tip L=300mm
-div. shank grinder
-div. clamping and auxiliary tools
