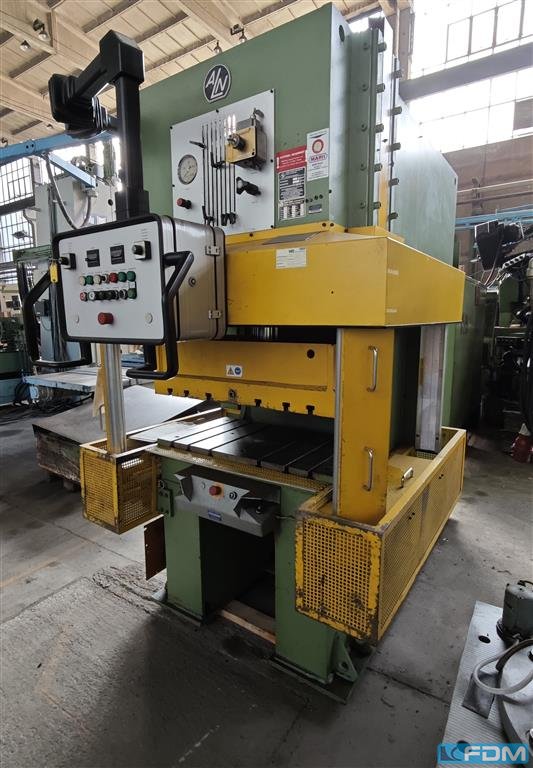

Single Column Press - Hydraulic
Luigart & Sohn EPy 40
- Stock number:
- 1087-0700429
- Year / Condition:
- 1991
- Control unit:
- conventional
- Country of origin:
- Germany
- Freight basis:
- EXW, free on truck unpacked
- Item location:
- Leipzig 2
- Delivery time:
- on request
Picture / documents / videos
Technical specs
Details
- pressure:
- 40 t
- daylight dimension : table/slide up:
- 450 mm
- throat:
- 375 mm
- ram stroke:
- max. 300 mm
- Table dimensions:
- 900 x 500 x 85 mm
- passage inside table:
- Ø 120 mm
- height over floor:
- 900 mm
- total power requirement:
- 15,0 kW
- weight of the machine ca.:
- 5,8 t
- dimension machine approx.LxWxH:
- 2,3 x 1,45 x 2,40 m
Description
further technical data:
-size of the ram plate W: 900 x D: 500mm
-pivot hole in ram Ø 40 x 75mm
-Hydraulics: tank capacity approx. 500Liter; operating pressure 275 bar; pump capacity 22,9 l/min.
Two-hand operation and/or control panel
