Four Column Press - Hydraulic
Reis SEP 6-30S
- Stock number:
- 1087-0700307
- Year / Condition:
- 1981 / Used
- Control unit:
- conventional
- Country of origin:
- Germany
- Freight basis:
- EXW, free on truck unpacked
- Item location:
- Leipzig 2
- Delivery time:
- immediately
Picture / documents / videos
Technical specs
Details
- pressure:
- 30 t
- distance between columns:
- BxT: 600/450 mm
- daylight dimension : table/slide up:
- 650 mm
- ram stroke:
- ca. 600 / highspeed strokes mm
- table surface area:
- LxB: 500 x 700 x Ø 60 mm
- surface area of ram:
- 650 x 800 mm
- hydraulic-pressure:
- 170 bar
- air pressure - required:
- 4 - 6 bar
- total power requirement:
- 11 kW
- weight of the machine ca.:
- ca. 2,0 t
- dimension machine approx.LxWxH:
- 1,26 x 1,75 x 3,4 m
Description

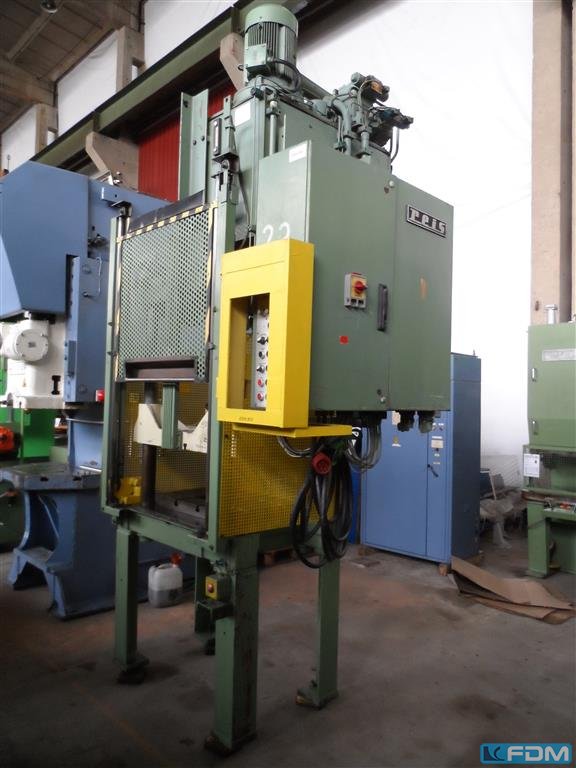

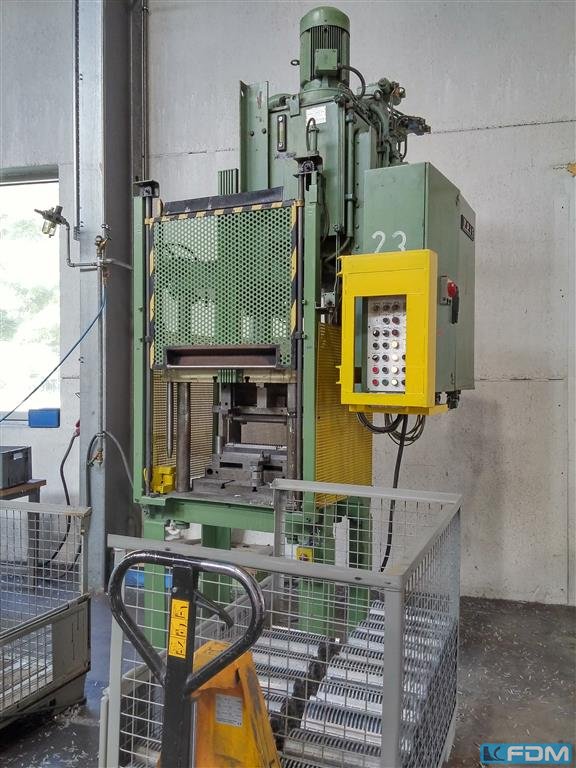

Four-column press, hydraulic
Possible applications: can be used as a deburring press
Further technical features:
- Table aperture 200x250mm
- Opening in ram Ø 160mm
- Passage in the column width 600 and depth 450mm
- Operation via control panel
Equipment:
- Protective grille
- Base plates
