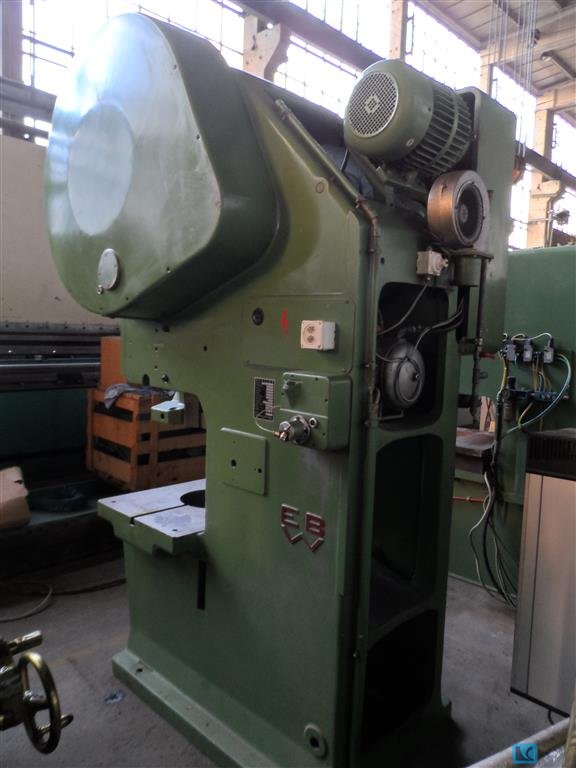

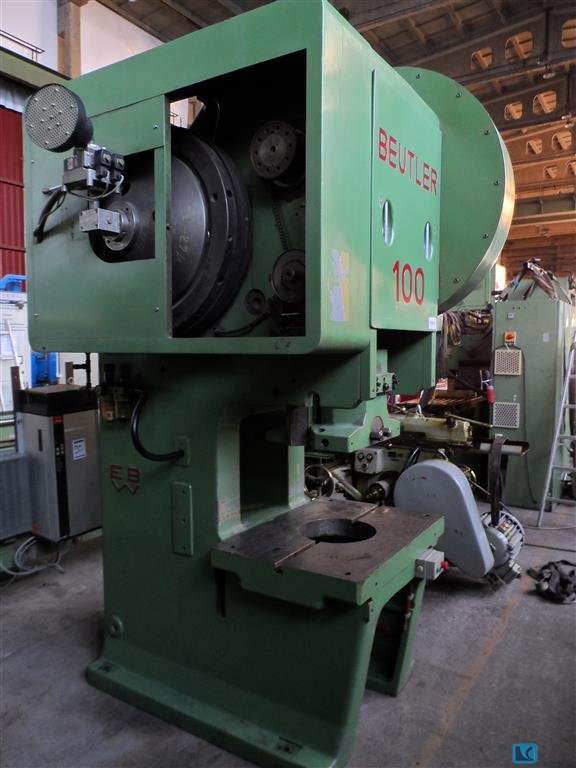

Eccentric Press - Single Column
BEUTLER PDR 100
- Stock number:
- 1087-0700238
- Year / Condition:
- 1983 / Used
- Control unit:
- conventional
- Country of origin:
- Switzerland
- Freight basis:
- EXW, free on truck unpacked
- Item location:
- Leipzig 2
- Delivery time:
- immediately
Picture / documents / videos
Technical specs
Details
- pressure:
- 100 t
- stroke:
- 20 fest mm
- no. of strokes:
- 55 Hub/min
- table surface area:
- 900x640 mm
- throat:
- 355 mm
- ram adjustment:
- 150 mm
- mortise hole in ram:
- Ø 36 mm
- clamping surface ram:
- 500x415 mm
- height over floor:
- 800 mm
- biggest distance between table & ram:
- 390 mm
- passage opening in table:
- Ø 330mm mm
- total power requirement:
- 11 kW
- weight of the machine ca.:
- 7,5 t
- transport dimensions LxWxH:
- 1,9x1,6x3,1 m
Description
Press is without electric cabinet, optional construction of electric cabinet possible.
