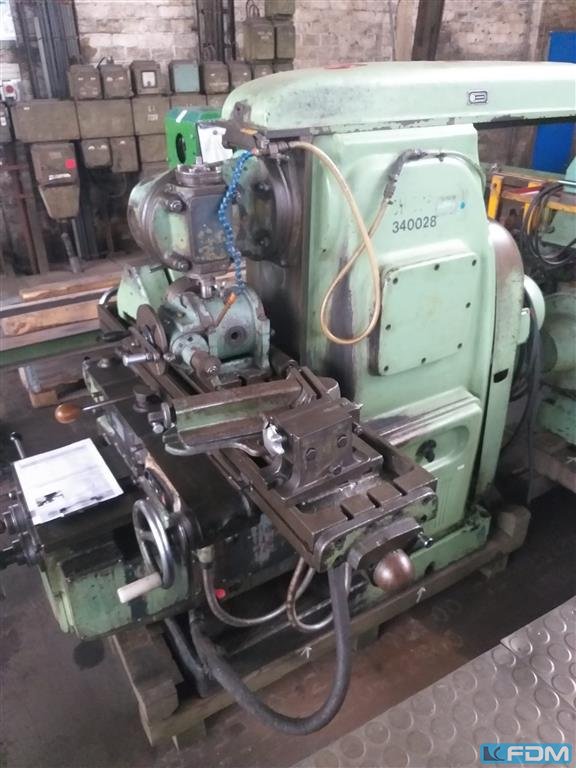

Details

x-travel

1000 mm

y-travel

320 mm

z-travel

350 mm

spindle taper ISO

MK4 / SK50

spindle head swivable left - right

90 °

Distance rear edge of table to column guideway

min.: 45 / max.: 365 mm

throat

270 mm

distance spindle center to table

min. 50 / max. 400 mm

range of revolution per miute

31,5 - 1.600 / 18 step U/min

feed:

25 - 1120 horizontal und 8,3 - 416 vertical mm/min

rapid traverse

3000 horizontal / 1000 vertikal m/min

clamping surface area

1340 x 320 mm

total power requirement

 kVA

machine weight approx.

3000 kg

dimension machine approx.LxWxH

2,2 x 2,8 x 1,7 m

dimensions electric cabinet

 m

Table dimensions

 mm

control



distance table/horizontal spindle

 mm

Control unit

conventional
