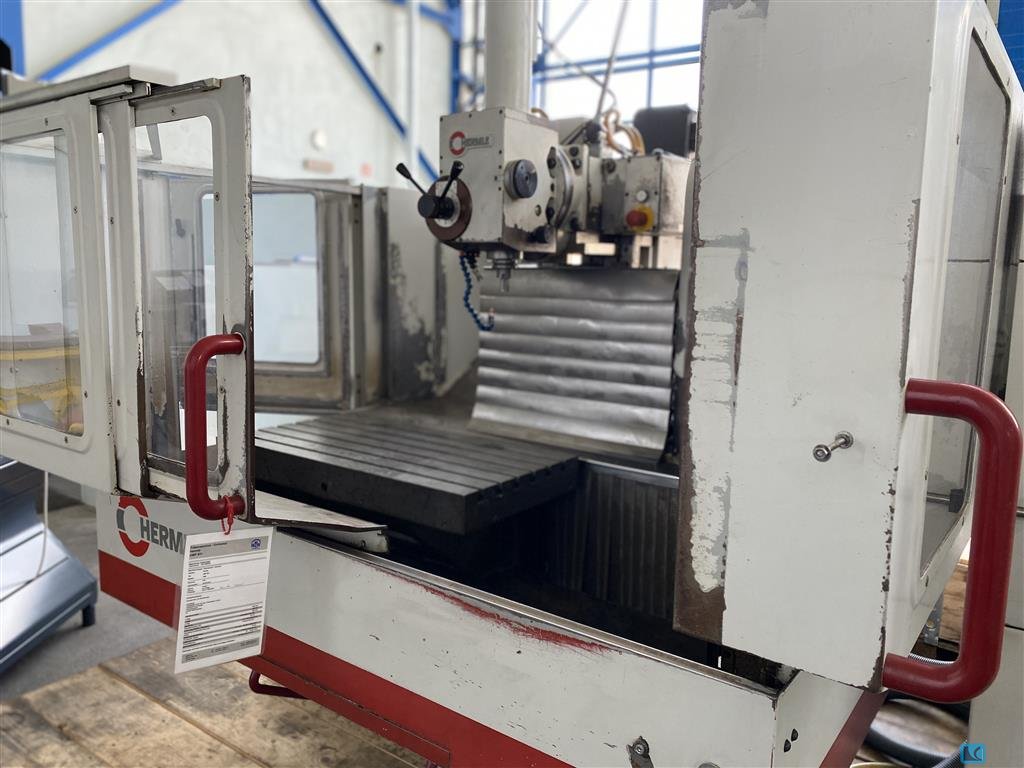

Universal Milling Machine
Hermle UWF 851 H
- Stock number:
- 1087-0400548
- Year / Condition:
- 1996 / Used
- Control unit:
- CNC (TNC 425)
- Country of origin:
- Germany
- Freight basis:
- EXW, free on truck unpacked
- Item location:
- Leipzig 1
- Delivery time:
- immediately
Picture / documents / videos
Technical specs
Details
- x-travel:
- 600 mm
- y-travel:
- 450 mm
- z-travel:
- 400 mm
- control:
- Heidenhain TNC 425
- spindle taper ISO:
- SK 40 DIN 69871
- quill stroke vertical:
- 75 mm
- distance between column - table edge:
- 190 (fest) vertikal mm
- spindle head swivable left - right:
- 90° Vertikal-Spindel °
- distance between table/spindle:
- min./max.: 165/565 Vertikal-Spindel mm
- distance between table/spindle:
- min./max.: 165/565 Horizontal-Spindel mm
- turning speed range:
- 20 ... 4500 U/min

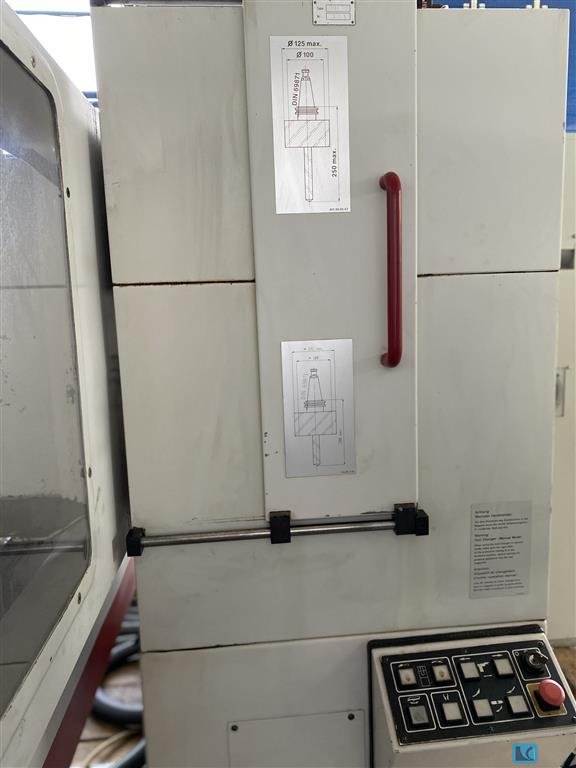

- tool changer with:
- 32 tools (Typ HTC 32)
- feed::
- 1 ... 5000 mm/min
- Table dimensions:
- 850x440 mm
- table swivelabel +/-:
- nein = starr °
- table load:
- 500 kg
- total power requirement:
- 15 kW
- weight approx.:
- 3500 kg
- dimension machine approx.LxWxH:
- 2,5 x 3,0 x 2,1 m
- dimensions electric cabinet LxWxH:
- 1,6 x 0,6 x 1,7 m
Description
Universal Milling and Drilling Machine
Equipment:
- cooling tank capacity 100 litres, flow rate 16 l/min
- control panel with jib length arm
- hand wheel control unit
- 8 pieces machine base
The machine can be demonstrated under power.
i.D.
