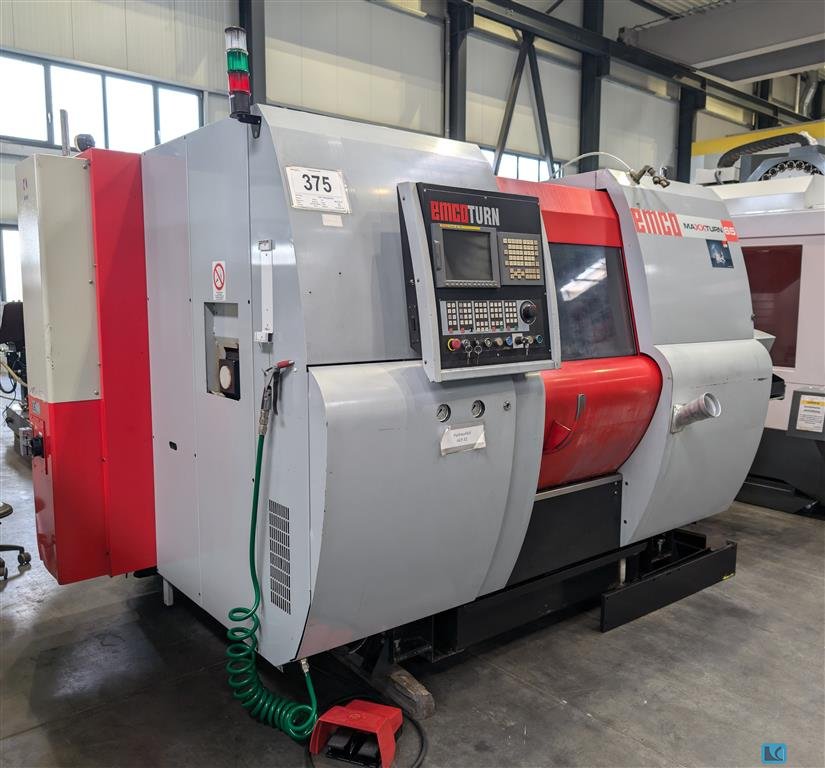

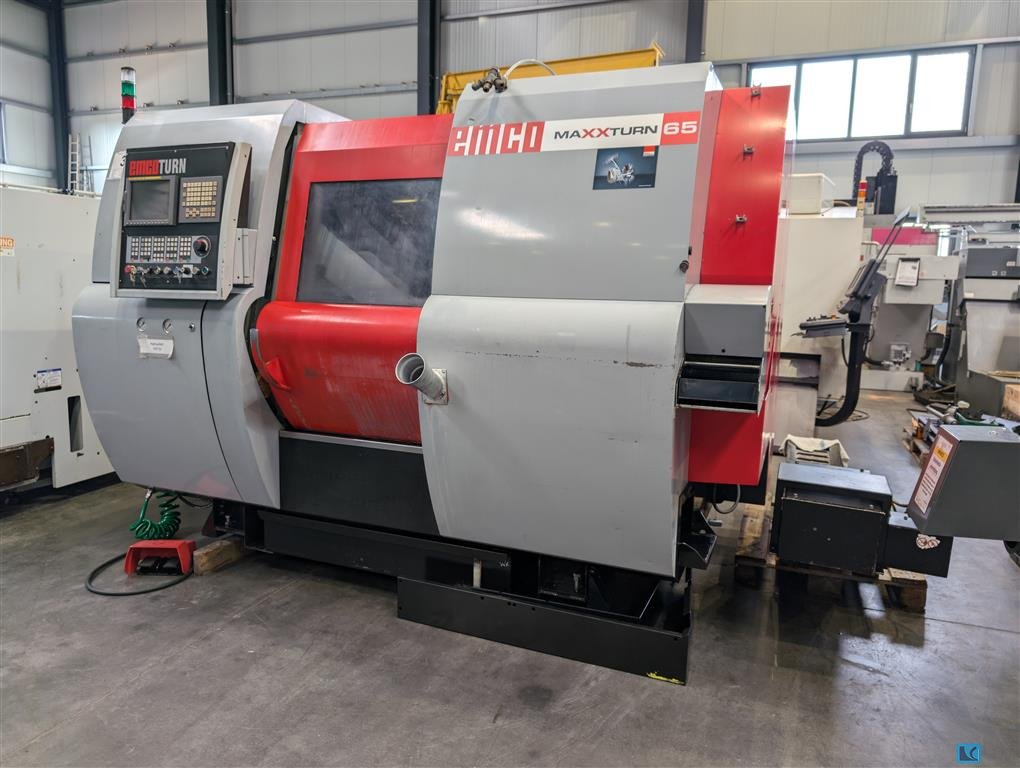

CNC Lathe

Details

turning diameter over bed:

600 mm

turning dia. over face-slide:

540 mm

turning length:

550 mm

longitudinal traverse (z-axis):

800 mm

facing movement (x-axis):

260 mm

control:

Fanuc 18i-TB

spindle bore:

Ø 73 mm

bar material dia.:

Ø 65 mm

revolution per minute:

0 ... 5000 steples U/min

max. torque on the spindle:

max. 250 Nm

rapid traverse in x-y-z axis:

X/Z: 30 m/min. / Y: 12 m/min.

rapid traverse c-axis:

1000 U/min.

tool turret - number of stations:

12 (Sauter)

operating pressure:

6,0 bar

electrics - voltage/frequency:

3 x 400 / 50-60 V/Hz

operating pressure:

6 bar

total power requirement:

40 kVA

Weight approx.:

5,7 t

dimension machine approx.LxWxH:

2,2 x 3,4 x 2,4 m

dimension swarf conveyor LxWxH:

ca. 2,9 x 0,6 x 0,55 (0,38 to) m

dimensions LxWxH:

Spänewanne: ca. 1,6 x 1,3 x 0,25 (0,2 to) m

transport measurements machine:

ca. 3,3 x 1,9 x 2,2 m

Description

The machine has a C-axis, E-axis, Y-axis, and W-axis.
Powered tools can be used in all positions.
Distance between spindle and counter spindle = 1050 mm.
Counter spindle: A2-6, travel distance 800 mm, spindle diameter 105 mm, torque 250 Nm.
Control cabinet equipped with Rittal cooler
With hinged chip conveyor
Chip tray
Compressed air gun
The machine has NO lathe chucks on sale as is!
