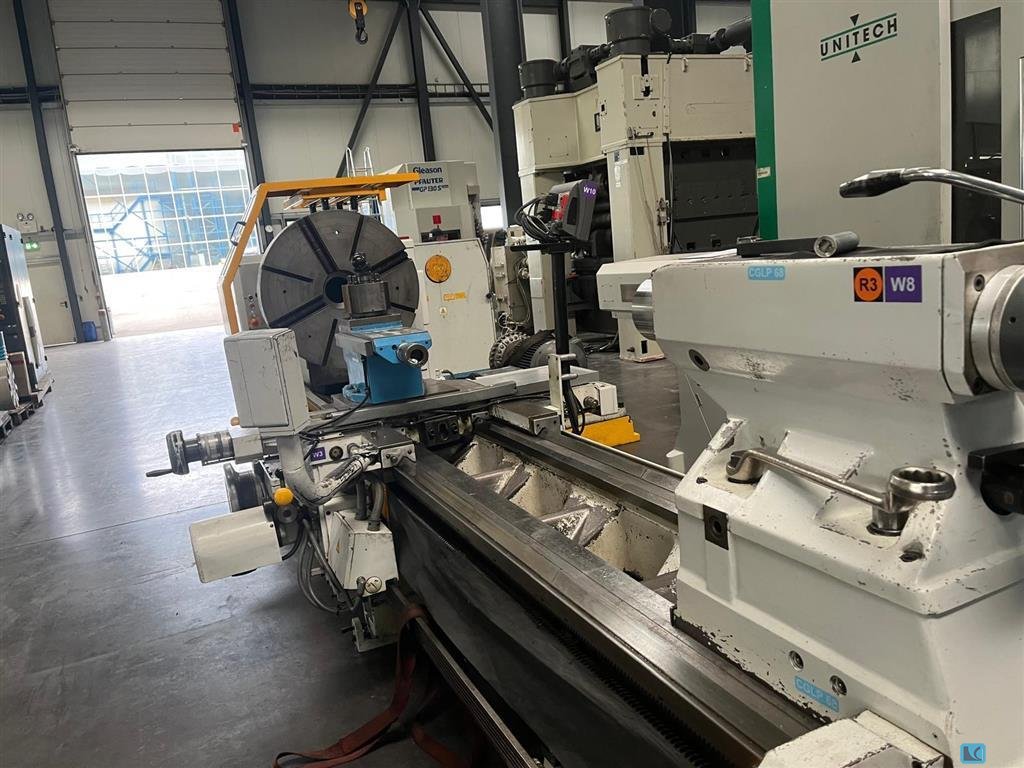

Heavy Duty Lathe
BOEHRINGER V 800 B
- Stock number:
- 1087-0300733
- Year / Condition:
- 1976/2007
- Control unit:
- conventional
- Country of origin:
- Germany
- Freight basis:
- EXW, free on truck unpacked
- Item location:
- Leipzig 5
- Delivery time:
- by arrangement
Picture / documents / videos
Technical specs
Details
- x-Travel:
- 530 mm
- table cross travel (Y-axis):
- 5200 mm
- w-axis:
- - mm
- drilling depth in one stroke:
- ca. 4000 mm
- metrical thread cutting:
- 0,25 -560 M
- total power requirement:
- 35 kW
- bed width:
- 560 mm
- centre distance:
- 5700 mm
- centre height:
- 500 mm
- swing diameter over bed:
- 1000 mm
- turning diameter over support:
- 800 mm
- range of feed in x - axis:
- 0,0063 - 4,0 mm/U
- range of feed in y - axis:
- 0,0063 - 4,0 mm/U
- spindle bore:
- 135 mm
- range drill spindle revolution per minute:
- max.1400 U/min
- range drill spindle revolution per minute:
- min. 7,1 U/min
- speed steps work spindle:
- 24 steps
- tailstock taper MT:
- MK 6
- tailstock quill stroke:
- 300 mm
- dimension machine approx.LxWxH:
- 12,0 x 2,5 x 2,0 m
Description

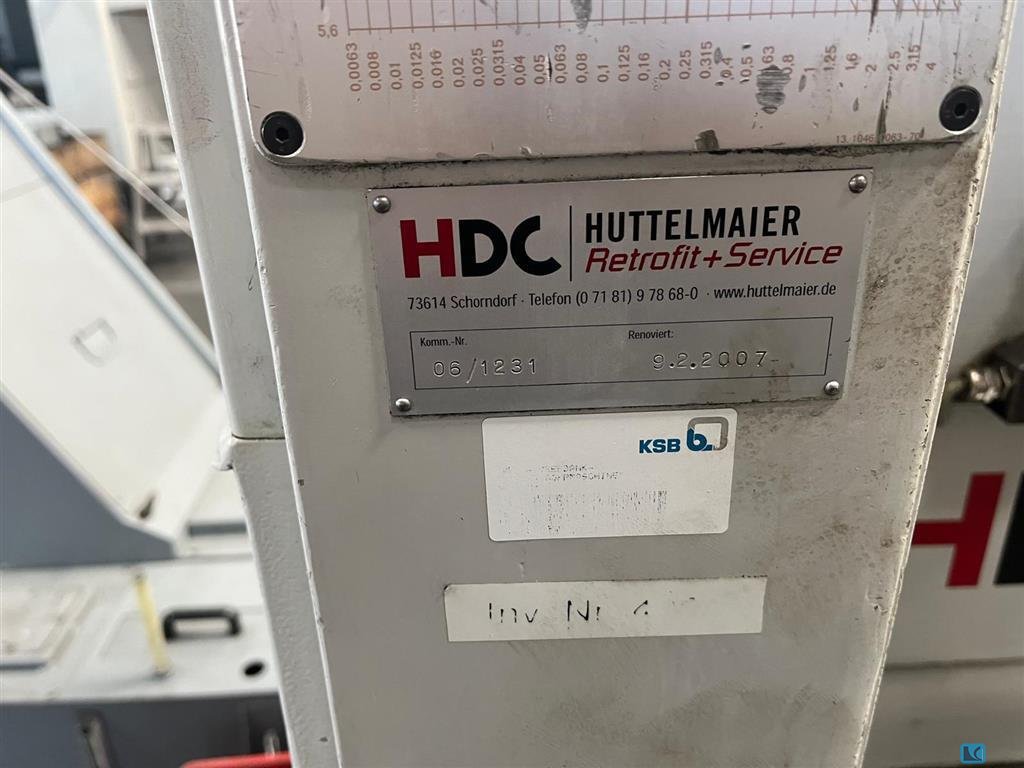

The machine was retrofitted/overhauled in 2007.
Special-purpose machine suitable for deep-hole drilling and/or heavy-duty turning operations.
Inch thread range: 1/16 – 80 TPI
3-jaw chuck, diameter: Ø 315 mm
2 steady rests
Faceplate: Ø 800 mm without jaws
PARAT quick-change tool holder, Type 4 3 pieces
Coolant system
HEIDENHAIN PT 880 4-axis digital readout (DRO)
