Wheel Lathe
Hegenscheid MFD 104
- Stock number:
- 1087-0300014
- Year / Condition:
- 1973 / Used
- Control unit:
- conventional
- Country of origin:
- Germany
- Freight basis:
- EXW, free on truck unpacked
- Item location:
- Leipzig 2
- Delivery time:
- on request
Picture / documents / videos
Technical specs
Details
- max. lifting force of the axle loads :
- 24 t
- work height max.:
- ca. 2000 mm
- distance of axis:
- 1300 mm
- track width:
- 1435 mm
- Profil widht min. and max.:
- min./ max.: 590 / 1400 (Laufkreis) mm
- cutting speed:
- 20 - 40 m/min
- feed continuous:
- 0,5 - 2
- drive motor:
- 4 x 9 kW
- total power requirement:
- 2x 12 / 15 kW
- dimension machine approx.LxWxH:
- 5,0 x 2,0 x 2,3 m
- dimensions electric cabinet:
- 1200 x 500 x 2100 mm
- dimensions of hydaulic:
- 900 x 500 x 1100 mm
- weight approx.:
- 16 500 kg
Description

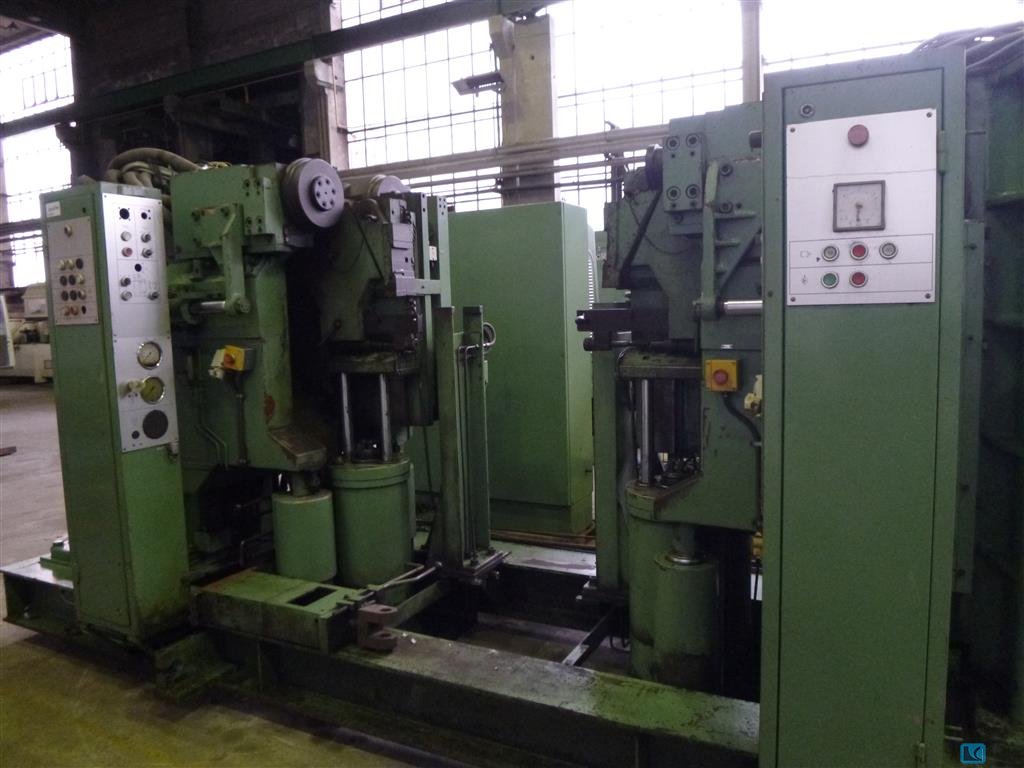

UNDERGROUND WHEEL SET LATHE for wagon and locomotive wheelsets
Application: Machining of front surfaces from assembled wheel sets.
- Largest/smallest running circle Ø 1400 / 590mm
- min. centre distance coupled / uncoupled: 1300 / 1000mm
- max./min. axle length to be accommodated for SW 1435mm: 2600 / 1600mm
- max. cutting speed 20 and 40 m/min
- feed 0,5 - 2 mm/rev
Tool support:
-2 x (right and left)
-Vertical adjustment approx. 300mm
-carbide steel holder

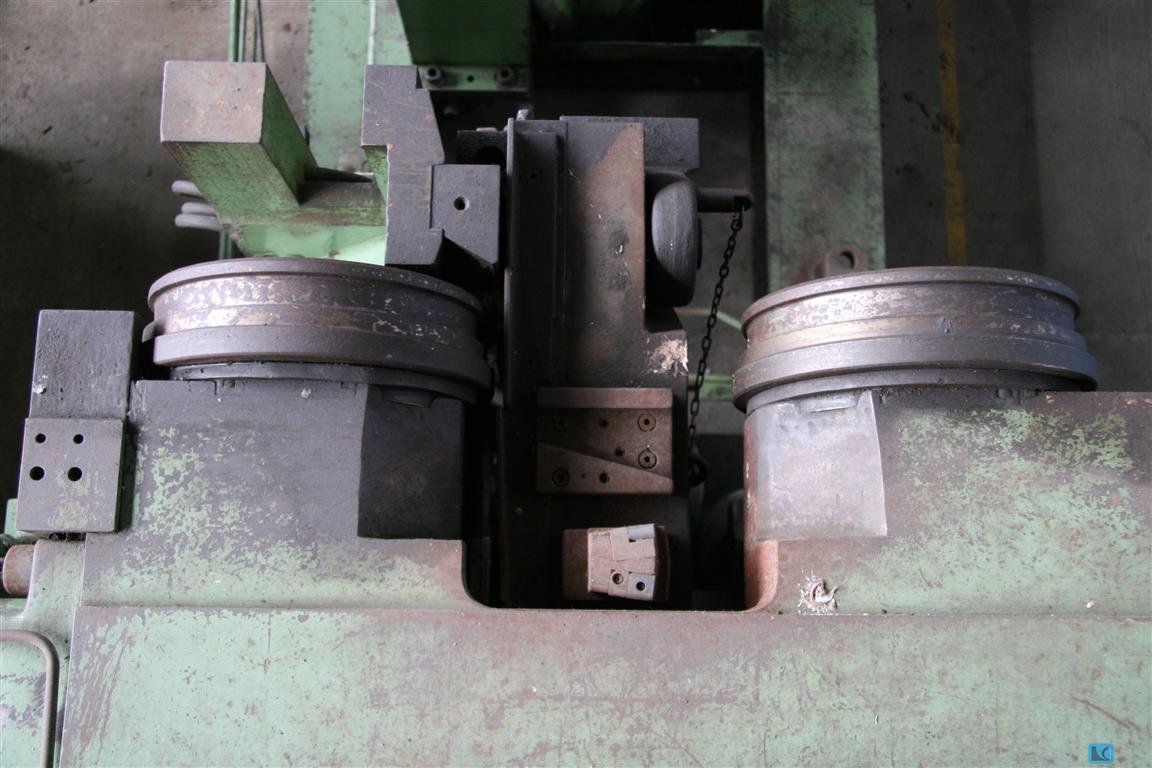

Impeller support:
-2 x (right and left)
-Vertical adjustment approx. 400mm
-drive via gear motor type R4 - 6835 20 PS
-2 pieceswheels with axle distance 500mm
Hydraulics Rexroth
Oil cooler
Storage rack
