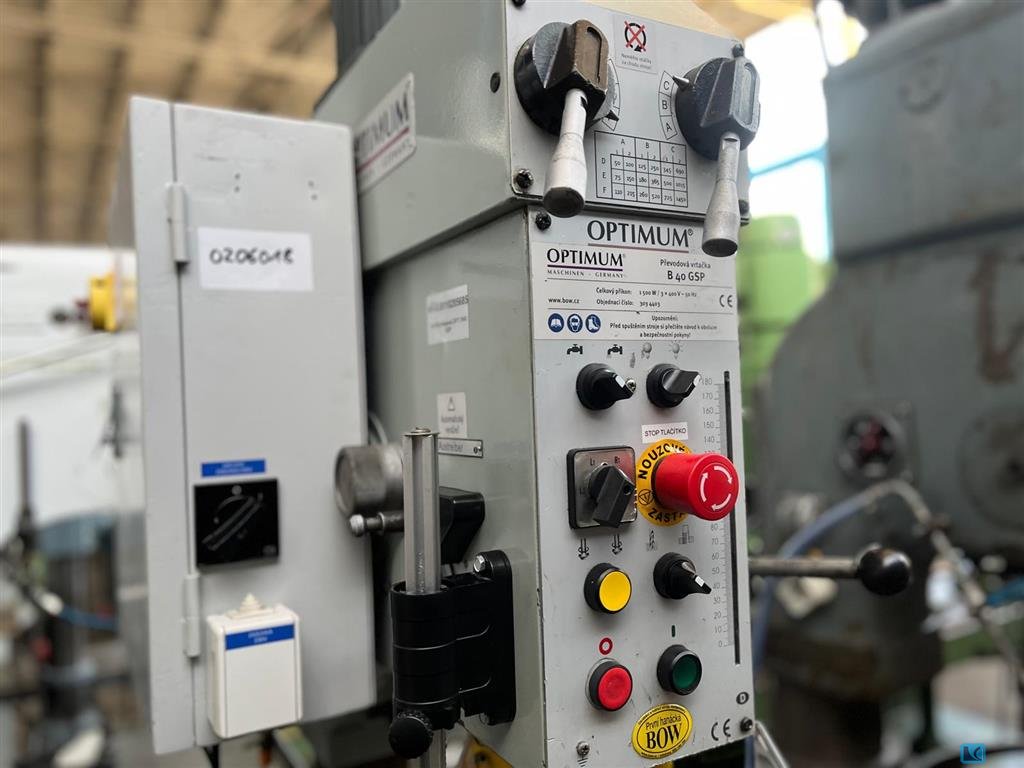

Pillar Drilling Machine
OPTIMUM B40 GSP
- Stock number:
- 1087-0206018
- Year / Condition:
- 2011
- Control unit:
- conventional (konventionell)
- Country of origin:
- Germany
- Freight basis:
- EXW, free on truck unpacked
- Item location:
- Leipzig 1
- Delivery time:
- immediately
Picture / documents / videos
Technical specs
Details
- bore capacity in steel (diameter):
- 35 mm
- throat:
- 350 mm
- bore stroke:
- 180 mm
- threading:
- ST M 24 mm
- spindle taper MT:
- MK4
- spindle speed::
- 50 - 1450 U/min
- Distance spindle/table max.:
- 780 mm
- table clamping surface::
- 560 x 560 mm
- weight of the machine ca.:
- 500 kg
- dimension machine approx.LxWxH:
- 0,73 x 0,56 x 0,22 m
Description
· Heavy, solid cast construction
· Automatic gear lubrication via oil pump
· Smooth running due to ground gearbox gears operating in an oil bath
· High concentricity thanks to hardened and ground main spindle
· Thread cutting device
· Lockable main switch and motor protection switch
· Optidrill B 40GSM additionally with automatic quill feed
· Electric
· 2 feed rates: 0.1 / 0.2 mm/rev
· Coolant system
· Drilling depth stop
· 18 speeds: 50 – 1,450 rpm
· 9 selectable speeds via gearbox lever on the front of the drill head
