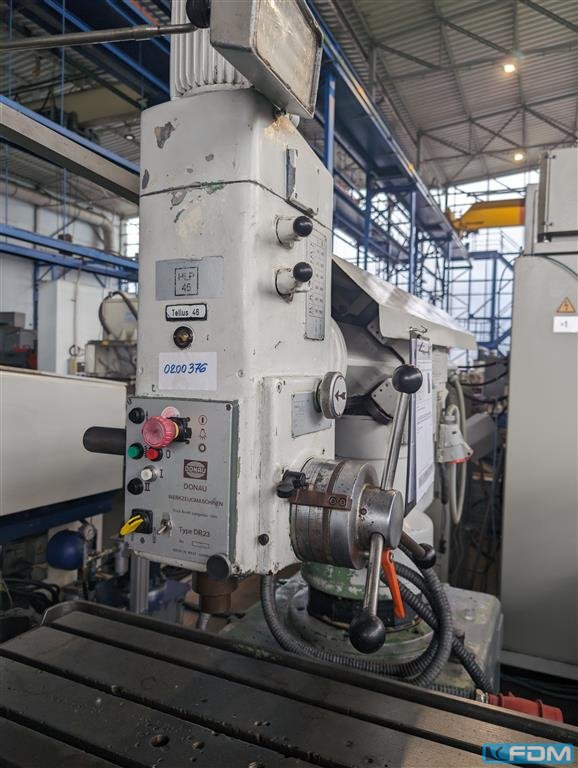

Rapid Radial Drilling Machine
Donau DR 23
- Stock number:
- 1087-0200376
- Year / Condition:
- 1971
- Control unit:
- conventional
- Country of origin:
- Germany
- Freight basis:
- EXW, free on truck unpacked
- Item location:
- Leipzig 1
- Delivery time:
- immediately
Picture / documents / videos
Technical specs
Details
- bore capacity in steel (diameter):
- 23 mm
- workpiece height max.:
- ./x. 205 / 655 mm
- drill capacity in cast iron:
- Ø 26 mm
- spindle taper:
- MK 3
- bore spindle stroke:
- 135 (manual/automatic) mm
- range drill spindle revolution per minute:
- 70 - 1550 / 8step U/min
- feed range:
- 0,075; 0,15; 0,30 mm/U
- Table dimensions:
- 1200 x 500 mm
- table surface area:
- 1070 x 400 mm
- total power requirement:
- 3,55 kW
- weight of the machine ca.:
- 1,4 t
- dimension machine approx.LxWxH:
- 1,7 x 1,2 x 2,2 m
Description
Jib Length Arm:
-vertical adjustment: 450mm and horizontal adjustment: 610mm
-swiveling 360°, hydr. lock
Right/left rotation for thread cutting with automatic switchover
Operation via control panel
Coolant tank with pump
