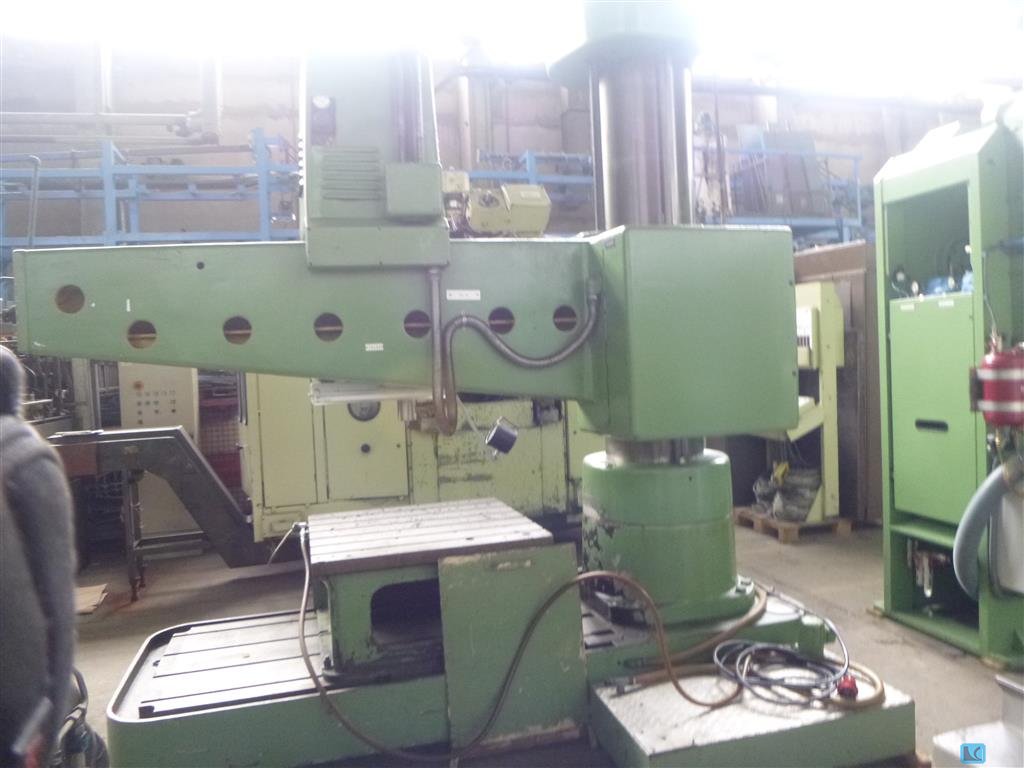

Radial Drilling Machine
H. Cegielski GRV 554
- Stock number:
- 1087-0200360
- Year / Condition:
- 1978
- Control unit:
- conventional
- Country of origin:
- Poland
- Freight basis:
- EXW, free on truck unpacked
- Item location:
- Leipzig 2
- Delivery time:
- on request
Picture / documents / videos
Technical specs
Details
- bore capacity in steel (diameter):
- 100 mm
- arm length:
- 400 - 2100 mm
- cantilever adjustment vertical:
- 100 mm
- spindle taper MT:
- 50
- drill depth:
- 415 mm
- spindle stroke:
- 400 (Skala) mm
- column turnable:
- 360 °
- column diameter:
- Ø 500 mm
- distance drilling head - clamping area:
- min./max.: 400 / 1.800 mm
- number of spindle speeds:
- 12,5 ... 1.600 / 15 step U/min
- feed:
- 0,063 ... 2,5 / 15 step mm/U
- table clamping surface::
- L x B: 2.000 x B: 950 mm
- total power requirement:
- ca. 35 kW
- weight of the machine ca.:
- o. Würfel = 8,0 t
- dimension machine approx.LxWxH:
- 3,40 x 1,16 x 3,51 m
Description
further information:
- drilling spindle travel horizontal 1.700mm
Equipment:
- incl. drilling cube (horizontal surface: 1000 x 1000 x 500 mm, central bore Ø 35mm; 6 T-slots), (vertical surface: 1,000 x 500mm, 3-T-slots)
- control panel
- coolant system
