Spring Winding Machine - Automatic
WAFIOS FUL 8
- Stock number:
- 1087-0100807
- Year / Condition:
- 1982 / 2000
- Control unit:
- conventional
- Country of origin:
- Germany
- Freight basis:
- EXW, free on truck unpacked
- Item location:
- Leipzig 5
- Delivery time:
- immediately
Picture / documents / videos
Technical specs
Details
- wire diameter - max.:
- 9,0 mm
- wire diameter - min.:
- 2,0 mm
- voltage:
- 380 V / 50 Hz V
- control voltage:
- 220 V
- Total power requirement:
- 18 kW
- Weight approx.:
- 5,0 t
- dimensions:
- Schmiermittelanlage: 830 x 650 x 1000 mm
- dimension machine approx.LxWxH:
- 3,3 x 1,5 x 1,45 m

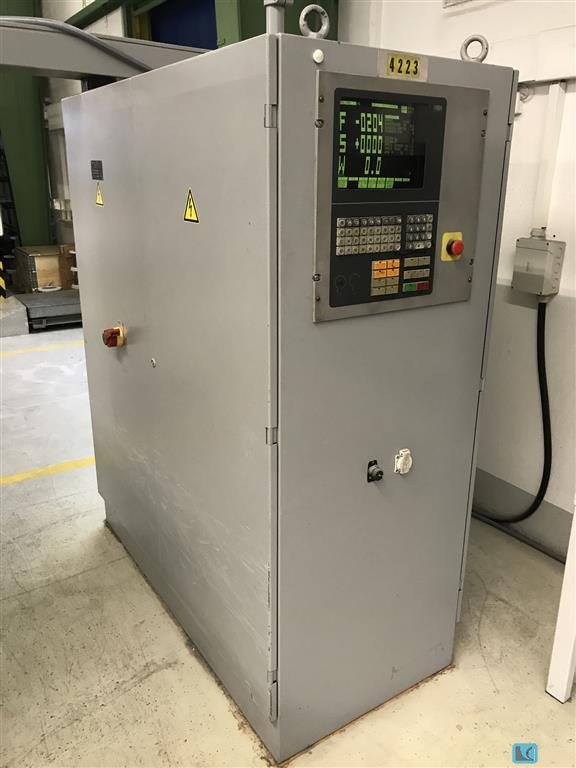

- dimensions electric cabinet LxWxH:
- 0,7 x 1,5 x 1,75 m
Description
WIRING AND CUTTING MACHINE / MACHINE WAS UPGRADED WITH A NEW CONTROL SYSTEM IN 2000
A programmable, electronically-hydraulically controlled universal spring coiling machine for the production of right and left-hand tension and compression springs as well as torsion springs.
The springs can be produced with any pitch and shape of spring body.
Output max. 90 pieces/min.
Outer spring Ø 10 - 120 mm
Unlimited wire feed length, speed = 27 - 80 m/min.
Coiling device: two-finger system wire thickness Ø 2.0 - 9.0 mm; spring outer Ø Ø 10 - 120 mm
Single-finger system: wire thickness Ø 3.0 - 7.0 mm; spring outer Ø max. Ø 60 mm
Equipment:

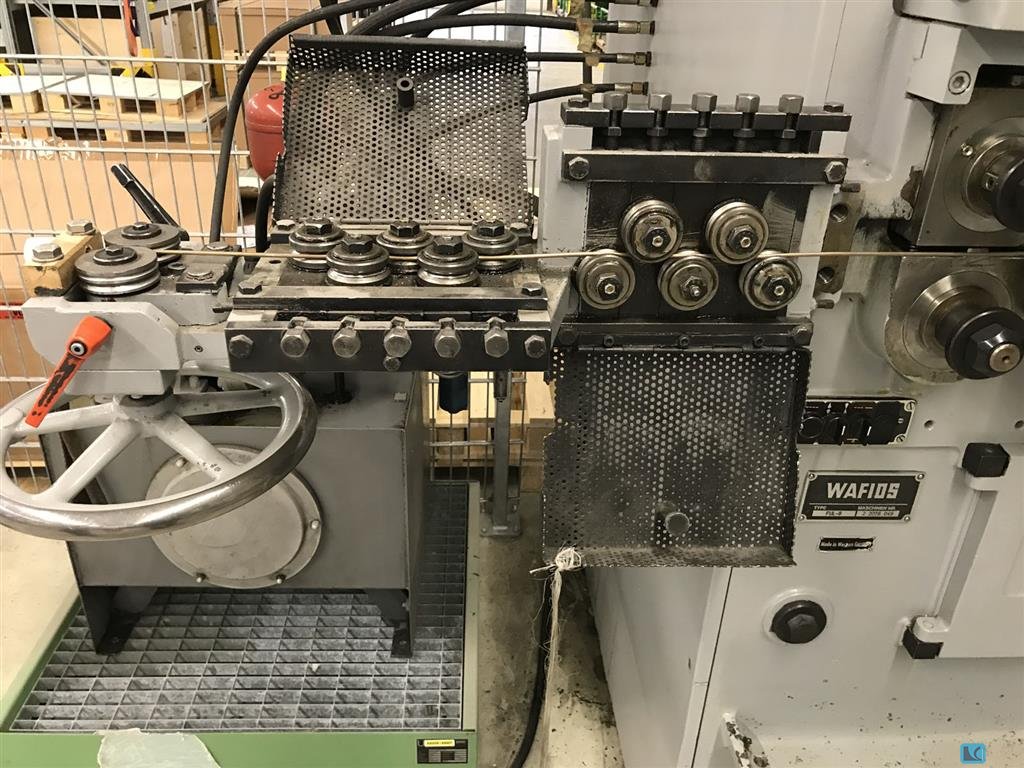

5x feed rollers, wire holder 3 mm two-finger
Spring length measuring device LION PRECISION-PANTHER
Wire roller holder POST, motor-driven, mandrel holder Ø 1,400 mm
Lubrication system
Control cabinet cooler RITA
Hydraulic unit
Optional many accessories and/or spare parts!
