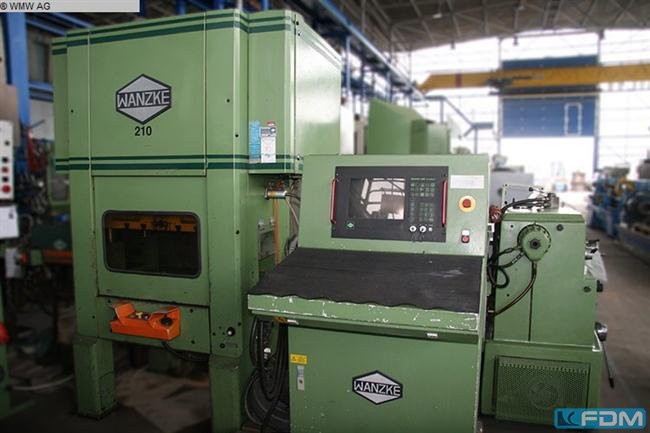

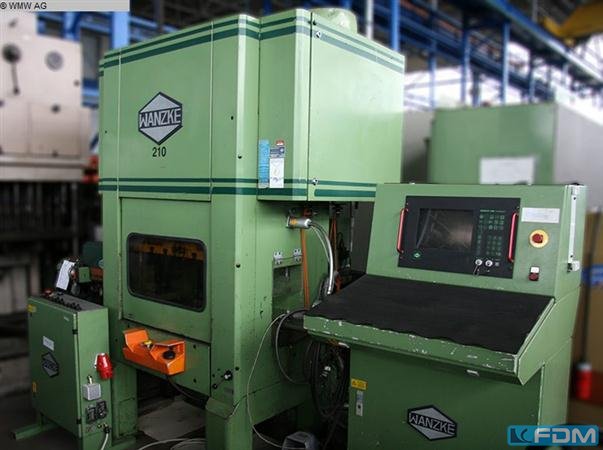

Automatic Punching Press - Double Column

Details

Pressure:

63 t

distance between columns:

200 mm

stroke:

150 mm

dayligth:

430 mm

no. of strokes:

400 Hub/min

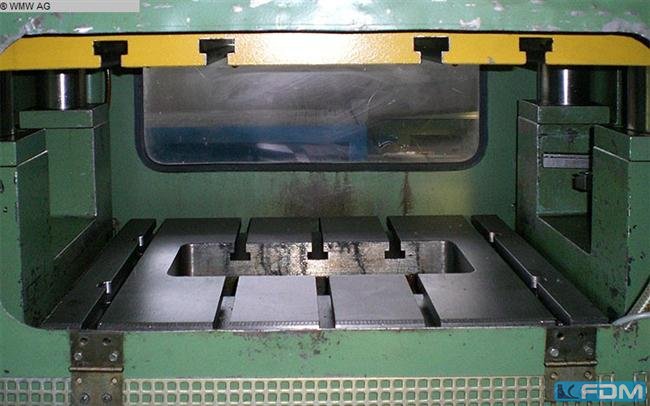

T-slots H 12 650:

18 mm

hole in table:

420x160 b x l mm

ram surface area:

650 x 450 mm

control:

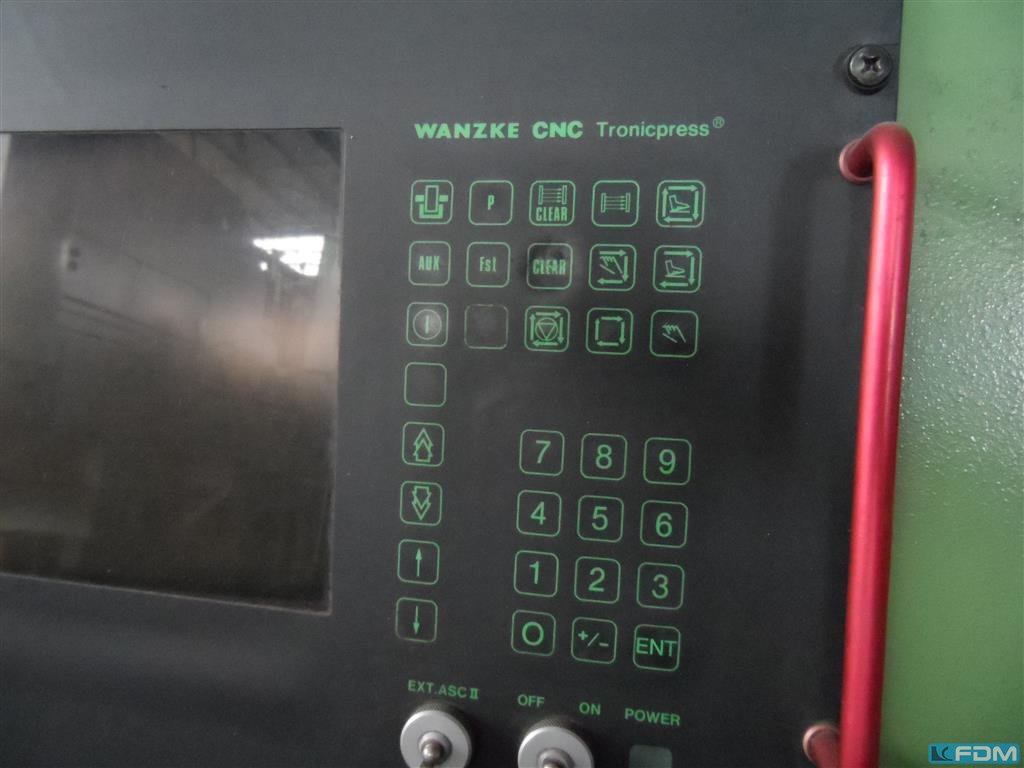

Wanske Tronicpress CNC

passage of columns:

550x540 mm

tank:

200 l

stroke of ram - fixed:

100 mm

ram diameter:

40 mm

table height over floor:

1000 mm

table:

600x450 mm

table height over floor with metal base stand:

880 mm

total power requirement:

30 kW

weight of the machine ca.:

3,9 t

Description

Hydraulic automatic punching press for precision work (high-speed press)
- for punching, drawing, pressing, minting, bending, riveting, straightening, assembling
- with hydraulic gripper feed type HS 150 and 7-roller straightener (moving)
- Normal strips of approx. 0.4mm - 2.5mm thickness x approx. 160mm width, as well as narrow strips up to approx. 4mm can be processed. Feed length can be adjusted as required via the control unit.
- with ram round column guide
- with automatic central lubrication
- High-speed: up to 400 strokes min-1
- motorized adjustable fixed stop (bottom can be adjusted by hand/motorized)
- Operating modes such as continuous stroke and/or single stroke

Equipment:
- 1x hydraulic unit

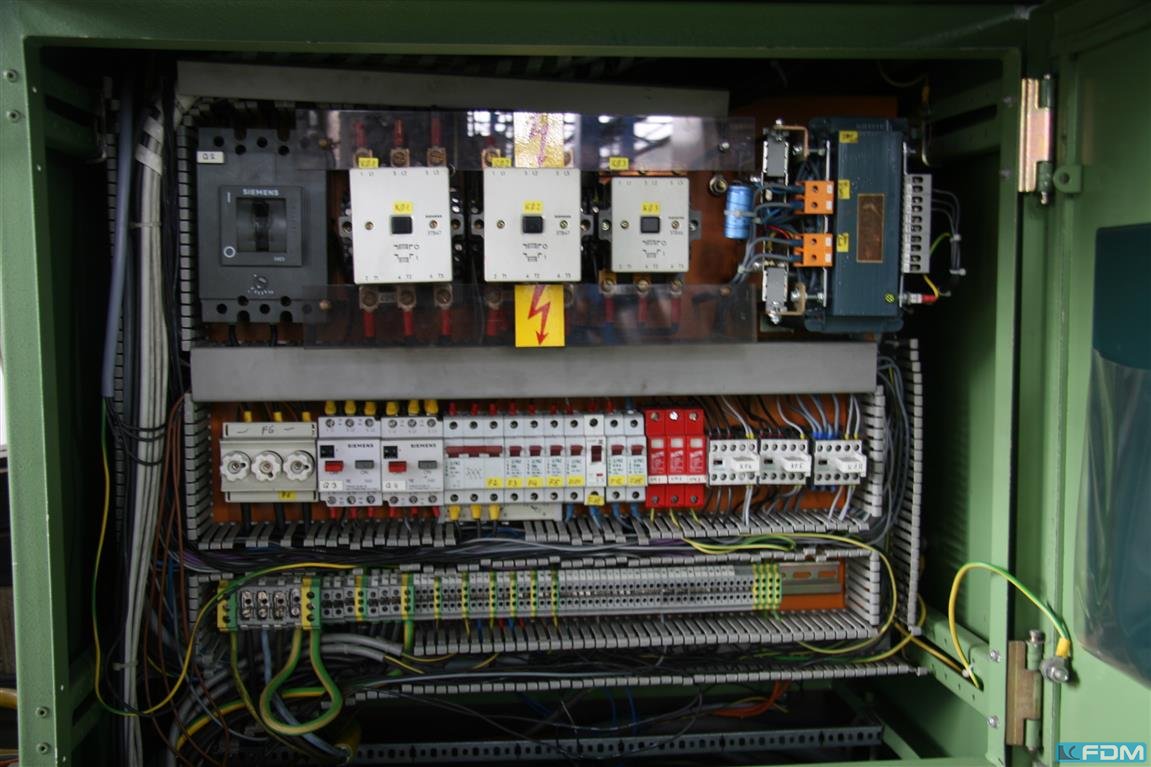

- 2x control cabinets
